Qualcomm® RB5 Cameras

e-con Systems™ provides multi-camera solutions seamlessly integrated with the Qualcomm® Robotics RB5 Kit - a heterogeneous computing platform combining advanced connectivity and high-accuracy AI technology.

Leveraging its partnership with Qualcomm®, e-con offers a powerful combination of high-quality cameras and a high-performance processor. As a result, it ensures superior performance and low power consumption - with unparalleled capabilities for object tracking, detection, classification, face detection/recognition, and more.

These multi-camera solutions are designed for Drones, Delivery robots and Autonomous shopping systems(New retail) applications. So, product developers can easily take their vision to the next level with rapid prototyping.

Spotlights

Interfaces support

Multiple Interfaces

MIPI & GMSL

Image Signal Processor

Image Signal Processor

Fine-tuned Qualcomm ISP/Onboard ISP

ToF camera Compatibility

ToF camera Compatibility

Precise 3D imaging

Multi-Camera Support

Multi-Camera Support

Up to 6 cameras

Qualcomm® RB5 Camera Variants

Product Name Sensor Resolution Max Frame Rate Chroma Output Interface Max no. of Cameras
NileCAM85_CUQRB5 IMX715 8MP 4K @ 30fps Color RAW 10/12-bit GMSL2 4 Download Full HD USB Camera Documents buy now
e-CAM85_CUQRB5 IMX715 8MP 4K @ 30fps Color RAW 10/12-bit MIPI CSI-2 5 Download Full HD USB Camera Documents buy now
NileCAM210_CUQRB5 IMX462 2MP FullHD @ 30fps Color RAW 10/12-bit GMSL2 6 Download Full HD USB Camera Documents buy now
e-CAM210_CUQRB5 IMX462 2MP FullHD @ 30fps Color RAW 10/12-bit MIPI CSI-2 6 Download Full HD USB Camera Documents buy now
NileCAM130M_CUQRB5 AR1335 13MP 13MP @ 15fps Monochrome Y8 & Y10 GMSL2 4 Download Full HD USB Camera Documents ContactUs

Upcoming Products

e-CAM130M_CUQRB5 AR1335 13MP 13MP @ 15fps Monochrome Y8 & Y10 MIPI CSI-2 5 Download Full HD USB Camera Documents ContactUs
NileCAM82_CUQRB5 IMX485 8MP 4k @ 30fps Color RAW 10-bit GMSL2 4 Download Full HD USB Camera Documents ContactUs
NileCAM25_CUQRB5 AR0234CS Full HD FullHD @ 30fps Color YUV422 GMSL2 6 Download Full HD USB Camera Documents ContactUs
e-CAM25_CUQRB5 AR0234CS Full HD FullHD @ 30fps Color YUV422 MIPI CSI-2 6 Download Full HD USB Camera Documents ContactUs
NileCAM21_CUQRB5 AR0233AT Full HD FullHD @ 30fps Color YUV422 GMSL2 6 - ContactUs
e-CAM200_CUQRB5 AR2020 20MP 20MP @ 30fps Color RAW Bayer MIPI CSI-2 4 - ContactUs
e-CAM82_CUQRB5 IMX485 8MP 4K @ 30fps Color RAW 10-bit MIPI CSI-2 5 - ContactUs
e-CAM84_CUQRB5 AR0830 8MP 4K @ 30fps Color Uncompressed UYVY MIPI CSI-2 5 - ContactUs
e-CAM56_CUQRB5 IMX568 5MP 5MP @ 90fps Color RAW Bayer MIPI CSI-2 5 - ContactUs
e-CAM21_CUQRB5 AR0233AT Full HD FullHD @ 30fps Color YUV422 MIPI CSI-2 6 - ContactUs
e-CAM0M30_TOF_CUQRB5 Depth VGA 30 fps Depth & IR Y16 MIPI CSI-2 1 - ContactUs

How e-con's Multi-Camera Solution Enhances the RB5 Kit's Capabilities

Multi-camera support
Comprehensive camera portfolio
Qualcomm ISP tuning
Full development kit solution

It facilitates the connection of up to 6 MIPI or 6 GMSL or even a combination of MIPI and GMSL cameras. This ensures unparalleled flexibility in capturing images and videos from multiple angles and perspectives.

Multi-camera support

This innovative solution supports a diverse camera portfolio, ranging from full HD to 20MP, global or rolling shutter, monochrome or color, HDR or LFM, low light or NIR, and even Time-of-Flight (ToF) cameras. Not able to find the suitable camera? Go to camera selector and choose the right camera for your application, we will support the same for QRB5 Kit

Comprehensive camera portfolio

e-con Systems can finetune Qualcomm ISP for Auto Exposure (AE), Auto White Balance (AWB), HDR, ultra-low light, color reproduction, and noise reduction according to your requirements.

Qualcomm ISP

Being Qualcomm's partner, e-con Systems is capable of providing a fully customized and comprehensive solution including hardware design, software development, integration, testing, and manufacturing.

Full development kit solution

Demo Videos

Multi Camera Solution for QRB5 Dev Kit
Multi Camera Solution Demo at Automate 2023

Target Applications

Drones
Drones
Delivery Robots
Delivery Robots

Related Blogs

Frequently Asked Questions

1. What is the Qualcomm RB5 Robotics kit?

The RB5 development kit is built around the Qualcomm QRB5165 processor, a powerful and customized chipset designed to meet the demanding requirements of robotic applications. This kit is developed by Thundercomm, a leading technology company that was formed as a joint venture between ThunderSoft and Qualcomm. With its heterogeneous computing architecture, the QRB5165 processor delivers an impressive 15 Tera Operations Per Second (TOPS) of compute power, enabling complex computations and real-time decision-making.

2. What is e-con Systems' multi-camera solution for the Qualcomm RB5 Robotics kit?

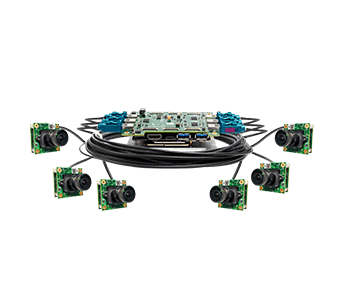

e-con Systems provides an adapter board that empowers the RB5 kit with robust multi-camera capabilities. This multi-camera adapter board can connect up to 6 cameras simultaneously. The cameras can be either MIPI or GMSL2 or a combination of MIPI and GMSL2.

Note: The integration of both MIPI and GMSL2 support is available as part of the customization options.

Know more
