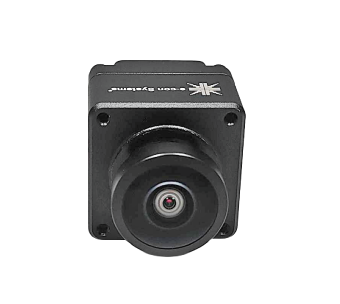

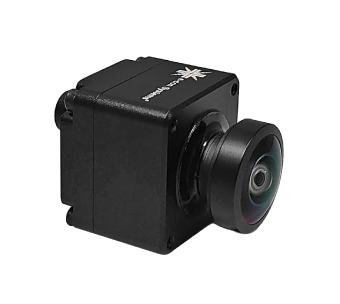

STURDeCAM12_CUOAGX is a 1.3MP automotive-grade camera built for rear-view, 360 degree surround-view, and mobility systems. Powered by the OMNIVISION OX01G10 sensor with PureCel® Plus technology and an on-chip ISP, it delivers clear visuals in bright daylight as well as low-light conditions, with HDR ensuring enhanced detail across challenging environments. Its compact size, IP69K-rated enclosure, and rugged design make it dependable for use in vehicles and robotics.
Featuring GMSL2 connectivity supporting cable lengths up to 15m, multi-camera synchronization, and compatibility with leading platforms such as NVIDIA Jetson AGX Orin, Orin NX, Qualcomm, and Renesas, STURDeCAM12_CUOAGX supports resolutions up to 1280x1020 at 30fps with flexible lens options. Together, these capabilities provide a cost-effective and reliable vision solution tailored for automotive and mobility needs.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate: 1280x1020 @ 30fps, 1280x960 @ 30fps & 1280x720 @ 30fps
- Output format: YUV
- GMSL2 Interface to transmit power and data up to 15m
- IP69K Automotive grade enclosure
- Light weight, versatile and portable design
ReferDatasheet for complete frame rate details.
- Interface:
-
- Interface: GMSL2™
- Connector: FAKRA connector
- Cable Length: 3m by default, Please contact camerasolutions@e-consystems.com for 15m cable
- Sensor features:
-
- Sensor: OMNIVISION’s OX01G10
- Focus Type: Fixed focus
- Sensor Resolution: 1.3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/3.55"
- Output Format: UYVY
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1340(H) ×1020 (V)
- Sensitivity: 32500 e/Lux-sec
- Max S/N Ratio: 42dB
- Dynamic Range: Max upto 120 dB
- Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: 12V+/- 250mV
- Operating Temperature Range: -40°C to 85°C
- Power requirements: TBD
- Size in mm :
- With Lens : 25mm (Length) x 25mm (Width) x 42.79 mm (Depth)
- Miscellaneous:
-
- Compliance: RoHS
Emission standards:
| S.No | Certification | Description |
|---|---|---|
| 1 | FCC Part 15, Subpart B, Class-B |
Regulates EMI from electronic devices to prevent interference with other equipment. |
| 2 | CE & ROHS |
CE ensures EMC compliance; RoHS restricts hazardous substances in electronic products. |
Application-Specific EMC and Environmental Standards Radiated Emission Standards
| S.No | Standard | Description |
|---|---|---|
| 1 | CISPR 32 | Sets EMI limits for multimedia devices to avoid disturbing nearby electronics. |
| 2 | CISPR 25 | Limits RF emissions in vehicles to protect onboard communication and entertainment. |
| 3 | ISO 14982 | Ensures EMI-safe operation of agricultural/forestry machines. |
| 4 | ISO 13766-1 | EMI testing for construction equipment with onboard electronics. |
Radiated Immunity Standards
| S.No | Standard | Description |
|---|---|---|
| 1 | EN 61000-4-3 | Tests how well a device works when exposed to outside electromagnetic signals. |
| 2 | ISO 11452-2 | Checks if car parts can handle signal noise in a test room. |
| 3 | ISO 11452-4 | Sends noise into cables to test if car electronics can still work properly. |
| 4 | ISO 13766-1 | Tests if construction machines keep working when exposed to strong signals. |
| 5 | ISO 14982 | Makes sure farm machines work well even when there’s a lot of electronic noise. |
Environmental Standards
| S.No | Standard | Description |
|---|---|---|
| 1 | ISO 16750-3 | Tests if car electronics can survive shocks, drops, and vibration. |
| 2 | ISO 16750-4 | Checks if electronics can handle heat, cold, and humidity in real-world conditions. |
- Linux camera driver:
-
- Full-fledged Linux camera driver for STURDeCAM12_CUOAGX with NVIDIA® Jetson AGX ORIN™ developer kit. The camera driver source code can be ported to any NVIDIA AGX ORIN platform.
- Supported Jetpack & L4T Version:
-
- NVIDIA® Jetson AGX Orin™ - JetPack 6.2.1 (L4T 36.4.4)
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video preview
- Still Image capture at selected resolutions
- Camera Controls: TBD
-
- Contrast
- Saturation
- Gain
- Flip Control
- PowerLine Frequency
- Sharpness
- Auto Exposure
- Manual Exposure
- Camera Mode
- Frame Sync Mode
- Distortion Correction
- Override Capture Timeout ms
- Temperature Measure
| Part No | Kit Contents |
Sample Price (1 Unit) |
Purchase |
|---|---|---|---|

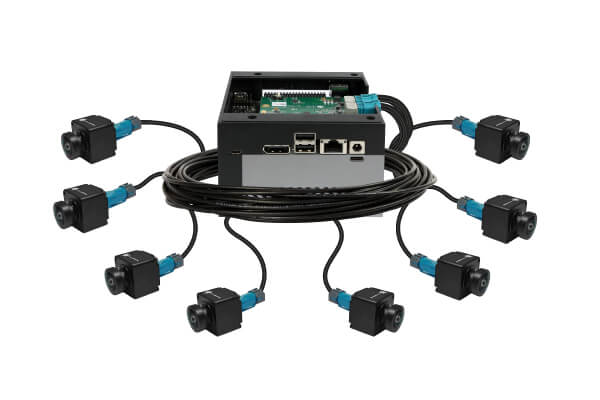

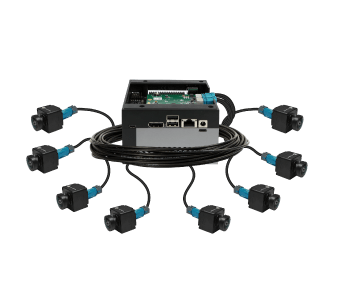

| STURDeCAM12_CUOAGX | NVIDIA® Jetson AGX Orin Dev Kit | - |
|
STURDeCAM12_CUOAGX- NVIDIA® Jetson AGX Orin Dev Kit
Sample Price (1 Unit)-
STURDeCAM12_CUOAGX - Customization for other Application Processor platforms:
e-con Systems® provides camera driver development, customization and porting services for STURDeCAM12_CUOAGX on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform
STURDeCAM12_CUOAGX - Customization
e-con provides customization, development and porting services for the following requirements:
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- To support other processor platforms
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
