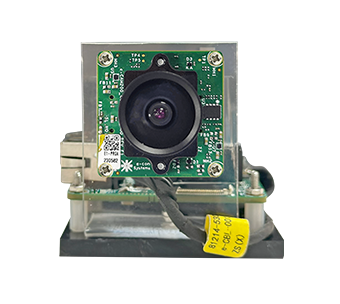

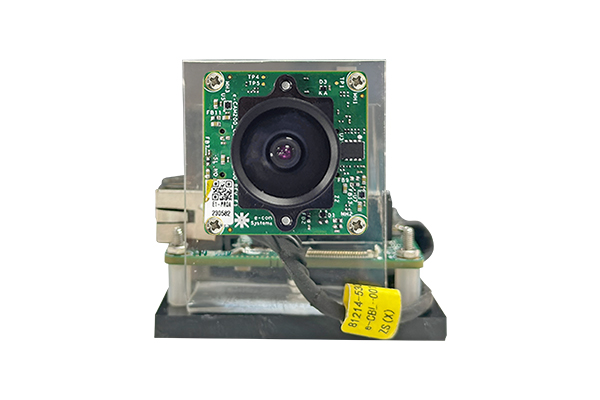

e-CAM200_CUHSB is a 20MP super-resolution camera built on the 1/1.8" AR2020 CMOS image sensor from onsemi's Hyperlux LP family. This 5K camera is designed for seamless integration with NVIDIA's powerful Jetson AGX Thor and AGX Orin™ platforms through the 10G HSB interface, enabling advanced vision solutions with the ultra-low latency required for real-time AI applications.
With e-con Systems' ISP fine-tuning expertise, the TintE™ ISP has been optimized to deliver superior image quality, making it possible to capture even the finest details from long distances. The camera features a rolling shutter sensor with an optional Global Reset Release (GRR) mode, which helps minimize rolling shutter artifacts in dynamic imaging environments.
This compact solution integrates e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By offloading computationally intensive ISP tasks, it significantly reduces overall system latency and frees up the NVIDIA GPU and CPU. This hardware acceleration enables the host processor to dedicate its full processing power to complex AI inference and model execution.
- Key features:
-
- Frame Rate:
- YUV: 20MP @ 15fps
- Bayer: 20MP @ 25fps
- Output Format: Bayer / YUV 10-bit
- Standard S-mount lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: 10G HSB
- Connector: RJ45
- Cable Length: 2m
- Sensor features:
-
- Sensor: AR2020 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 20MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter with global reset mode #
- Optical Format: 1/1.8"
- Output Format: RAW Bayer
- Pixel Size: 1.4μm x 1.4μm
- Sensor Active Area: 5120 (H) x 3840 (V)
- Lens Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: TBD
- Operating Temperature Range: TBD
- Typical power consumption: TBD
- Size in mm (l x b x h):
- Camera board: 30mm x 30mm
- HSB board: 55 mm x 50 mm x 1.6 mm
- Miscellaneous:
-
- Compliance: RoHS
* - Please contact camerasolutions@e-consystems.com
- Supported Jetpack & L4T Version :
-
- NVIDIA® Jetson AGX Thor - JetPack 7.0
- NVIDIA® Jetson AGX Orin™ - JetPack 6.0 L4T36.3.0
- Userspace Camera sensor Driver :
-
- Video preview
- Still Image capture
- Camera controls (Exposure, Gain, Framerate, Resolution)
- Sample application with source Code for Linux :
-
- Video Preview
- Still Image capture
| Part Number | Kit Contents | Purchase |
|---|---|---|
| e-CAM200_CUHSB_CHLC_1H02R1 |
|
|
