e-CAM21_CUNX - Sony STARVIS™ IMX327 Ultra Low-Light Camera

e-CAM21_CUNX is a Full HD ultra-low light MIPI camera board for NVIDIA® Jetson Xavier™ NX developer kit. This Full HD camera is based on the e-CAM220_CUMI327_MOD, a Sony STARVIS™ IMX327 color CMOS image sensor. This high-sensitivity lowlight camera has the capability of capturing both visible and near-infrared images with very low noise even at extremely low lighting conditions or no light (nearly 0 lux) conditions. It supports uncompressed Full HD streaming at 60 fps. This Starlight Camera uses NVIDIA® on-board Jetson Xavier™ NX Image Signal Processor (ISP) to perform all the Auto functions (Auto White Balance, Auto Exposure control) which significantly improves quality.

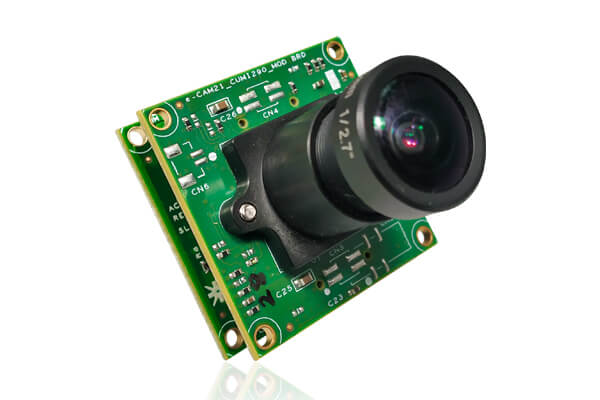

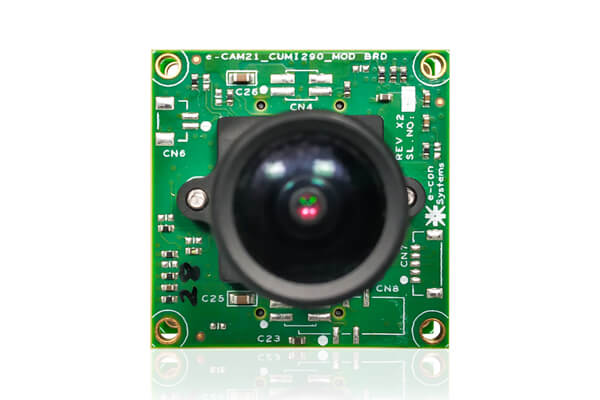

  • Houses e-CAM220_CUMI327_MOD - 2.0 MP Sony Starvis™ Camera Module with S-mount lens holder
  • High-speed MIPI CSI-2 interface to connect with the CPU

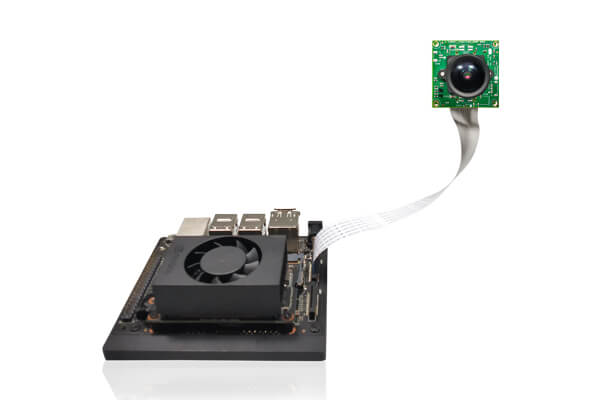

  • Plugs in to NVIDIA® Jetson Xavier™ NX development kit
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing
  • Frame Rate:
  • Resolutions YUV (NV12)
    HD (1280 x 720) 60 fps
    FHD (1920 x 1080) 30 fps & 60fps
  • Operating Voltage : 3.3V +/- 5%
  • Operating Temperature Range : -30°C to 85°C
  • Power consumption:
    • Max 0.495W
    • Min 0.429W
  • Customized LibArgus application for multicamera streaming, image capture and video recording
  • Gstreamer-1.0 support for video recording and network streaming
  • Dimension ( L x W ): 30 mm x 30 mm
  • Board Weight - 12 Grams (without lens)
                               18 Grams (with lens)
  • Lightweight, versatile, and portable multi-board solution
  • RoHS compliant
  • Launched on:launching date

Sensor:1/2.8" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:Full HD

Pixel size:2.9 µm x2.9 µm

Sensor Active Area:1945H x 1097V

G sensitivity:2.376 V @ 12-bit HCG mode, 0.921 V @ 12-bit LCG mode

Output Format:RAW 12 bit

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

DFOV :Full HD - 132°(with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM21_CUNX on NVIDIA® Jetson Xavier™ NX developer kit

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson Xavier™ NX - JetPack 4.4.0 L4T32.4.3
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected sensor modes (eCAM_argus_camera)
  • Camera Controls
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM21_CUNX - Technical Documents:

 Bullat Arrow  Datasheet

pdf  e-CAM21_CUNX Datasheet

 Bullat Arrow  Hardware

pdf  e-CAM21_CUNX Getting Started Manual

pdf  e-CAM21_CUNX Lens Datasheet

 Bullat Arrow  Software

pdf  e-CAM21_CUNX Developer Guide

pdf  e-CAM21_CUNX e-CAM Argus App User Manual

pdf  e-CAM21_CUNX Gstreamer Usage Guide

pdf   e-CAM21_CUNX Release Package
               Manifest

pdf  e-CAM21_CUNX-eCAM Argus Camera Build and               Install Guide

Download 3MP camera Documents

Kit Contents:

    • e-CAM220_CUMI327_MOD - Full HD MIPI Camera Module with lens
    • Adaptor board
    • Flex Cable (15 cm)
    • Linux Driver & Sample Application
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
certicicate icon

SAMPLE PRICE

USD 99
Buy 2MP USB Camera online

Excluding Shipment Charges

Image taken at 0.5 lux using
e-CAM220_CUMI327_MOD with NVIDIA® Jetson Xavier™ NX

Image taken at 0.5 lux using
