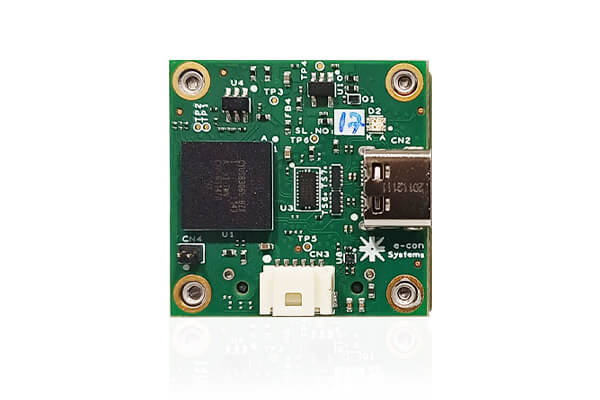

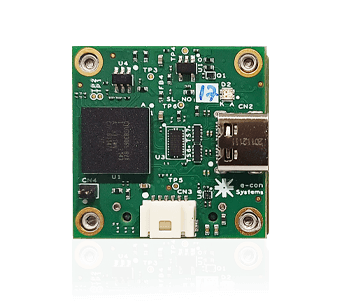

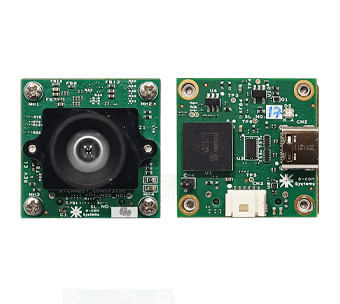

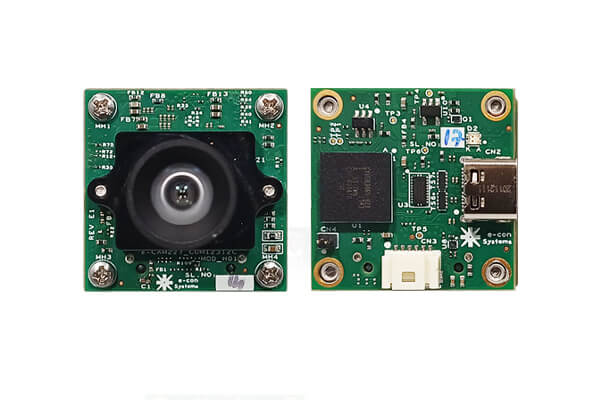

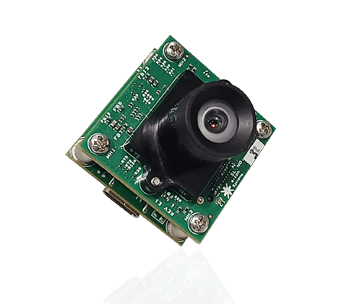

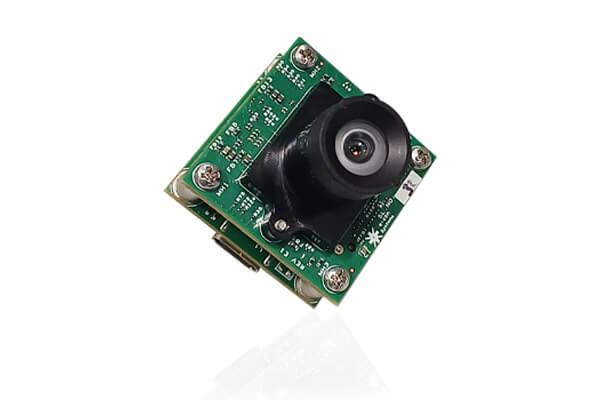

See3CAM_27CUG - 2MP OV2312 Global Shutter RGB-IR USB 3.2 Gen 1 Camera

Highlights:

  • 2MP RGB-IR camera based on the OV2312 sensor
  • Global Shutter
  • On-board high performance ISP
  • Streams RGB-IR frames separately
  • Operating Temperature Range: -40°C to +80°C

Engineering samples available

Documents

See3CAM_27CUG is a 2MP RGB-IR global shutter USB 3.2 Gen 1 camera for accurate and fast capture of moving scenes at 36fps in full resolution. This Global shutter USB camera features the OV2312 CMOS Image Sensor with a pixel size of 3.0 x 3.0 μm and a dedicated high-performance Image Signal Processor (ISP) that extracts RGB and IR data separately without any color corruption.

See3CAM_27CUG is a ready-to-use camera with all the necessary firmware built in and is compatible with UVC standards allowing customers to accelerate their time-to-market. This RGB-IR dual-mode camera can capture images and videos at high resolutions of 1600x1300 at 36fps and 1600x720 at 36fps.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Houses e-CAM227_CUMI2312C_MOD - 2MP RGB-IR MIPI camera module
    • Frame Rate: Streams 2MP @ 36 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: RGB - UYVY & IR - UYVY
    • Supported OS: Windows, Linux, Android * and MAC **
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: USB 3.2 Gen 1 device
    • Connector: Type-C reversible interface connector
    • UVC complaint - no additional drivers required
    • Backward compatible with USB 2.0 hosts
  • Module features:
    • Sensor: OV2312 from OmniVision™
    • Focus Type: Fixed focus
    • Sensor Resolution: 2MP
    • Chroma: Color, NIR
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.9"
    • Output Format: Compressed UYVY
    • Pixel Size: 3.0 μm x 3.0 μm
    • SNR: 37.4dB
    • Dynamic Range: 68dB
    • Sensor Active Area: 1600H x 1300V
    • Array Size: 1600 x 1300 Pixels
    • Holder: M12 (S-Mount)
    • FOV: 87.89°(D), 80.86° (H), 50.72° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 V +/- 5%
    • Operating Temperature Range: -40°C to +80°C
    • Size in mm (l x b x h) :
      • Without lens: 30 x 30
      • With lens: 30 x 30
    • Board weight:
      • Without lens: 16 Grams
      • With lens: 20 Grams
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact camerasolutions@e-consystems.com
  • Supported OS - Windows, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView – Windows Camera application for Video Preview and Still Capture.
    • QtCAM – Linux Camera application for Video Preview and Still Capture.
  • UVC Controls:
    • Brightness
    • Contrast
    • Saturation
    • Gain
    • Sharpness
    • Exposure
  • Please contact sales@e-consystems.com for any customization requirements.
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com
 Bullat Arrow  Datasheet

Documents  2MP OV2312 Global Shutter RGB-IR Camera

Customers who own platforms that support USB 3.2 Gen1 and are interested in evaluating the 2MP RGB-IR USB camera module can directly purchase the See3CAM_27CUG from e-con Systems. Customer can order See3CAM_27CUG with/without lens.

Part No Description Sample Price
(1 Unit)
Purchase
See3CAM_27CUG 2MP USB 3.2 Gen 1 Global Shutter RGB-IR Camera
-
ContactUs

See3CAM_27CUG-2MP USB 3.2 Gen 1 Global Shutter RGB-IR Camera

Sample Price (1 Unit)--

ContactUs

In addition to See3CAM_27CUG, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension. For more details, please refer to the evaluation kit contents below.

For all enquiries please write to camerasolutions@e-consystems.com for more details.

Kit Contents:
  • See3CAM_27CUG:
    • See3CAM_27CUG - 2MP Global Shutter USB 3.2 Gen 1 RGB-IR Camera board with S-Mount Lens Holder
    • USB 3.2 Gen 1 - Type-C Cable
    • Lens (Optional)
  • Software: (Customers will have to download the software from e-con Developer Resource).
    • Supported OS: Windows, Linux, Android * and MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact camerasolutions@e-consystems.com
See3CAM_27CUG – Customization
  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
