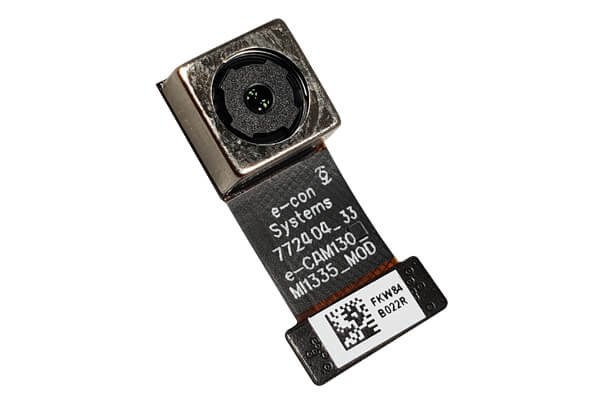

e-CAM130_MI1335_MOD - 13MP AutoFocus Camera Module

e-CAM130_MI1335_MOD is a high performance, 13MP Autofocus 4-lane MIPI camera module. This 4K autofocus camera module is based on AR1335 CMOS image sensor with advanced 1.1µm pixel BSI technology from ON Semiconductor®. The AR1335 is a Bayer RGB image sensor with an active pixel resolution of 4208 x 3120 pixels and has a 4-lane MIPI CSI-2 interface. The camera module houses a compatible lens with VCM controlled autofocus. This camera module can be used with any Application Processors or Digital Signal/Media Processors or even with USB UVC controllers with a compatible camera interface.

  • 13.0 MP Colour camera with 4-lane MIPI CSI-2 interface
  • Focus Type – Auto Focus (VCM driven)
  • 1/3.2" Optical Form-factor
  • Maximum Image Transfer Rate :
  • Resolutions USB 3 Interface For PC solution 4-lane MIPI (TX2/TX1)
    VGA 120 fps 120 fps
    HD (720p) 60 fps 80 fps
    Full HD (1080p) 60 fps 80 fps
    4K Ultra HD (3840x2160) 30 fps 30 fps
    13MP 20 fps 19 fps
  • Power consumption
    • Max: 0.245W
    • Min: 0.125W
  • Temperature Range
    1. Operation: -30° to 70° C
  • Size in mm (L x W x H) : 24.18mm x 11.6mm x 6.525mm
  • RoHS Compliant
  • Launched on: 19 September 2018

Sensor:1/3.2" Optical form factor AR1335 CMOS Image sensor

Focus Type:Auto focus

Resolution:13.0 MP

Pixel size:1.1 µm x1.1 µm

Responsivity:4.7 ke-/luxsec

SNR:37 dB

Dynamic Range:69 dB

Output Format:RAW 6, RAW 8 & RAW 10

Shutter Type:Electronic Rolling Shutter

Array Size:4208x3120

FOV :74.4°(D), 60.2°(H), 46.4°(V)

  • 4-lane MIPI CSI-2 interface for video and I2C interface for camera configuration
  • Linux V4L2 Capture driver with demo application
  • Customers can purchase the driver source code from e-con Systems and port the same to their application processor.
  • Please contact sales@e-consystems.com for customization requirements.

Download e-CAM130_MI1335_MOD Documents:

pdf e-CAM130_MI1335_MOD - 13MP Autofocus Camera Module Datasheet

Download Evaluation Kit (See3CAM_130) Documents:

pdf See3CAM_130 - 4K Autofocus USB3.1 Gen1 Camera Board

Download Evaluation Kit (e-CAM132_CUTX2) Documents:

pdf e-CAM132_TX2 - 13MP MIPI NVIDIA® Jetson TX2 Camera Board

Download Evaluation Kit (ACC-iMX6-MI1335CAM) Documents:

pdf ACC-iMX6-MI1335CAM - 13 MP Camera Board User Manual (AnkaaPLUS)

Download Evaluation Kit (ACC-iMX6-m-MI1335CAM) Documents:

pdf ACC-iMX6-m-MI1335CAM - 13 MP Camera Board User Manual (Meissa-I)

Download Evaluation Kit (ACC-iMX6-MI1335CAM) Documents:

pdf ACC-iMX6-MI1335CAM - 13 MP Camera Board User Manual (Ankaa)

Evaluation Kit:

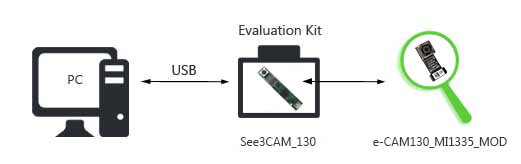

1. PC Solution

See3CAM_130 - 13 MP Autofocus USB 3.0 Camera

Customers who own platforms that support USB 3.0 and are interested in evaluating the 13 mega pixel Autofocus USB camera module can directly buy the See3CAM_130 from e-con Systems.

US $279
Buy online

Excluding Shipment Charges

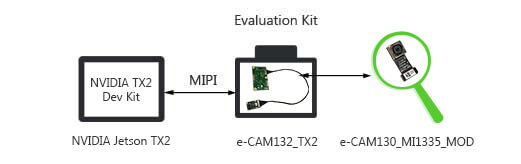

2a. ARM Based Solution (NVIDIA® Jetson TX2/TX1 Dev Kit)

e-CAM132_TX2 - 13.0 MP MIPI Camera Board (Requires NVIDIA® Jetson TX2/TX1 Developer Kit):

The MIPI Camera daughter card (e-CAM132_TX2) can be bought by customers choosing to evaluate the e-CAM130_MI1335_MOD camera solution with a direct interface on the NVIDIA® Jetson TX2/TX1 Developer Kit.

US$249
Buy online

Excluding Shipment Charges

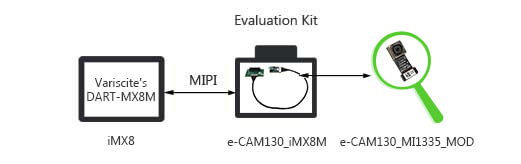

2b. ARM Based Solution (Variscite's DART-MX8M)

e-CAM130_iMX8 - 13MP MIPI Camera Board (Requires Variscite's DART-MX8M):

The daughter card (e-CAM130_iMX8) can be bought by customers choosing to evaluate the e-CAM130_MI1335_MOD camera solution with a direct interface on the iMX8.

US$199
Buy online

Excluding Shipment Charges

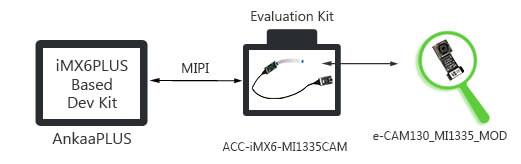

2c. ARM Based Solution (NXP/Freescale i.MX6 PLUS)

ACC-iMX6-MI1335CAM - 13MP MIPI Camera Board (Requires AnkaaPLUS kit):

The daughter card (ACC-iMX6-MI1335CAM) can be bought by customers choosing to evaluate the e-CAM130_MI1335_MOD camera solution with a direct interface on the AnkaaPLUS.

US $199
Buy online

Excluding Shipment Charges

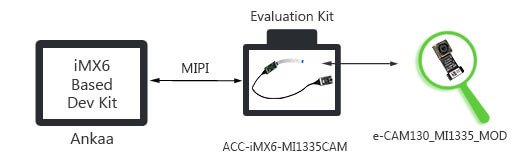

2d. ARM Based Solution (NXP/Freescale i.MX6 PLUS)

ACC-iMX6-MI1335CAM - 13MP MIPI Camera Board (Requires Ankaa kit):

The daughter card (ACC-iMX6-MI1335CAM) can be bought by customers choosing to evaluate the e-CAM130_MI1335_MOD camera solution with a direct interface on the Ankaa.

US $199
Buy online

Excluding Shipment Charges

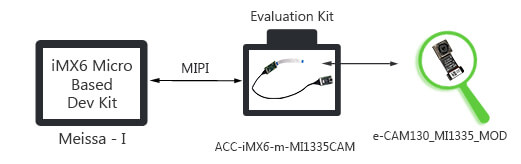

2e. ARM Based Solution (NXP/Freescale i.MX6 Meissa-I)

ACC-iMX6-m-MI1335CAM - 13MP MIPI Camera Board (Requires Meissa-I kit):

The daughter card (ACC-iMX6-m-MI1335CAM) can be bought by customers choosing to evaluate the e-CAM130_MI1335_MOD camera solution with a direct interface on the Meissa-I.

US $199
Buy online

Excluding Shipment Charges

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM130_MI1335_MOD - Customization for other Application Processor platforms

e-con provides customization for this e-CAM130_MI1335_MOD on any application platform as per customer requirements.

e-CAM130_MI1335_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Driver development for any OS: Linux, Android
  • Interfacing with any Application Processor : Freescale i.MX6, NVIDIA TK1, NVIDIA TX1, NVIDIA TX2 and any other processor.
  • Camera and ISP features customization based on specific requirements

Please contact sales@e-consystems.com for customization requirements.

Buy e-CAM130_MI1335_MOD online

Targeted Applications

»  Kiosk

»  Documents Reader/Scanner

»  Autonomous Robotic Systems

»  Mobile Medical Imaging
