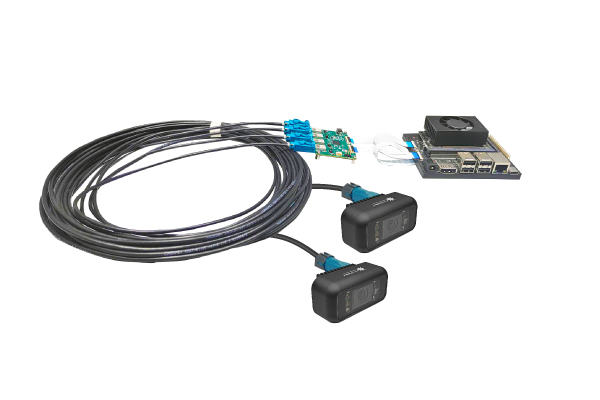

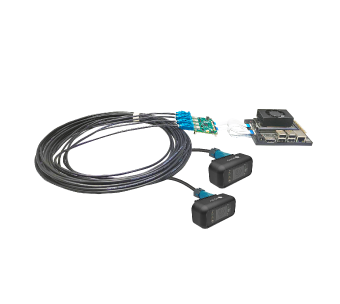

STURDeCAM57_CUONX camera is powered by OMNIVISION’s OX05B1S 5MP global shutter sensor, purpose-built for in-cabin and intelligent vision systems. With 2.2μm pixels and Nyxel® technology, it delivers outstanding NIR sensitivity and supports 940nm IR illumination, ensuring clear imaging even in ultra-low light. Its dual-stream RGB-IR output and global shutter enable blur-free performance with enhanced scene understanding across dynamic environments.
Compatible with the NVIDIA® Jetson Orin NX / Orin Nano development kit, the camera supports cable lengths of up to 15m via GMSL interface and comes in a rugged, IP67-rated enclosure for long-term reliability. With its combination of high performance, low-light efficiency, and robust design, STURDeCAM57_CUONX camera is an ideal solution for Driver Monitoring System (DMS), Occupant Monitoring System (OMS), In-cabin Monitoring System, Intelligent Transport Systems (ITS), ANPR / ALPR, Biometrics & Access Control and Smart Agriculture.
- Key features:
-
- Frame Rate:
- RGB + IR : 5MP @ 60 fps (30 fps RGB and 30 fps IR)
- RGB : 30 fps
- IR : 30 fps
- Output format: UYVY RGB and IR
- GMSL2 Interface to transmit power and data up to 15m
- Features 940nm IR-LED with working range of 50cm to 2m
- IP67 Automotive grade enclosure
- Light weight, versatile and portable design
- Frame Rate:
- Interface:
-
- Interface: GMSL2™
- Connector: FAKRA connector
- Cable Length: upto 15m
- Sensor features:
-
- Sensor: OMNIVISION's OX05B1S
- Focus Type: Fixed focus
- Focus Distance : 50cm to 200cm (For DMS and OMS Use case)
- Sensor Resolution: 5MP
- Chroma: Color, NIR
- Shutter Type: Global shutter
- Optical Format: 1/2.5"
- Output Format: MIPI
- Pixel Size: 2.2μm x 2.2μm
- Sensor Active Area: 2592(H) ×1944 (V)
- Dynamic Range: 71 dB
- FOV: 114.76°H x 85.92°V x 148.32°D
- Electrical & Mechanical:
-
- Operating Voltage: 12V with +/- 5% tolerance
- Operating Temperature Range: -40°C to 85°C
- Typical Power Consumption: 3.42W
- Size in mm (l x b): 70 x 35 x 30 mm (with enclosure)
- Board weight : 100 Grams
- Miscellaneous:
-
- Compliance: RoHS
Emission standards:
| S.No | Certification | Test Specifications |
|---|---|---|
| 1 | FCC Part 15, Subpart B, Class B |
Regulates EMI from electronic devices to prevent interference with other equipment. |
| 2 | CE & ROHS |
CE ensures EMC compliance; RoHS restricts hazardous substances in electronic products. |
Application-Specific EMC and Environmental Standards Radiated Emission Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 |
CISPR 32 |
Sets EMI limits for multimedia devices to avoid disturbing nearby electronics. |
| 2 | CISPR 25 |
Limits RF emissions in vehicles to protect onboard communication and entertainment. |
| 3 | ISO 14982 |
Ensures EMI-safe operation of agricultural/forestry machines. |
| 4 | ISO 13766-1 |
EMI testing for construction equipment with onboard electronics. |
Radiation Immunity Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | EN 61000-4-3 |
Tests how well a device works when exposed to outside electromagnetic signals. |
| 2 | ISO 11452-2 |
Checks if car parts can handle signal noise in a test room. |
| 3 | ISO 11452-4 |
Sends noise into cables to test if car electronics can still work properly. |
| 4 | ISO 13766-1 |
Tests if construction machines keep working when exposed to strong signals. |
| 5 | ISO 14982 |
Makes sure farm machines work well even when there’s a lot of electronic noise. |
Environmental Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | ISO 16750-3 |
Tests if car electronics can survive shocks, drops, and vibration. |
| 2 | ISO 16750-4 |
Checks if electronics can handle heat, cold, and humidity in real-world conditions. |
| Part No | Kit Contents |
Sample Price (1 Unit) |
Purchase |
|---|---|---|---|
| STURDeCAM57_CUONX |
NVIDIA® Jetson AGX Orin Dev Kit |
- |
|
STURDeCAM57_CUONX-NVIDIA® Jetson AGX Orin Dev Kit
Sample Price (1 Unit)-
STURDeCAM57_CUONX - Customization for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM57_CUONX on any application platform as per customer requirements.
STURDeCAM57_CUONX - Customization
e-con provides customization for the following requirements:
- IP rated (IP69K) enclosure and IP rated (IP69K) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
- Camera and features customization based on specific requirements.
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
