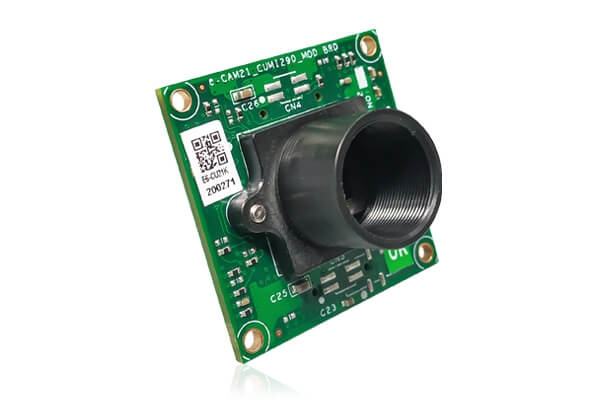

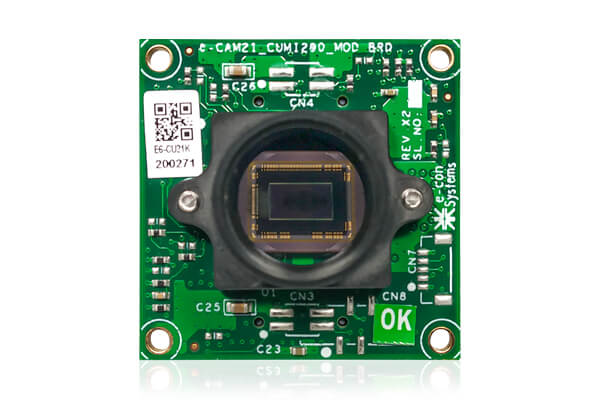

e-CAM21_CUMI290_MOD - 2MP Sony STARVIS® IMX290 ultra-lowlight Camera Module

The e-CAM21_CUMI290_MOD is a 2MP ultra-low light RAW MIPI camera module based on SONY IMX290, one of the most popular Sony's STARVIS® CMOS sensor. SONY IMX290 is a 1/2.8" rolling shutter CMOS sensor with 2.9µm pixel size. Its effective pixel back-illuminated technology with improved sensitivity in the visible-light and near infrared light enables customers to capture images even in absolute darkness.

The e-CAM21_CUMI290_MOD can stream uncompressed Full HD @120 fps in 10-bit mode and 60fps in 12-bit mode.

Key Features

  • 2MP Colour camera with 4-lane MIPI CSI-2 interface
  • 1/2.8" Optical Form-factor
  • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
  • RGB RAW10-bit/12-bit data per pixel
  • Maximum Image Transfer Rate
  • Resolutions MIPI Solutions (NVIDIA® Jetson TX2/TX1)
    12 bit RGB 10 bit RGB
    1280 x 720 60 fps 120 fps
    1920 x 1080 60 fps 120 fps
  • Temperature Range
    • Operating Temperature Range: -30°C to 85°C
    • Performance Temperature Range: -10°C to 60°C
  • Small form-factor pluggable camera module with S-mount lens holder
  • 30mm x 30mm size. Height depends on the Lens
  • RoHS Compliant
  • Launched on:launch date

Sensor:1/2.8" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:2.0 MP

Pixel size:2.9 µm x 2.9 µm

Sensor Active Area:1945H x 1097V

G sensitivity:550 to 1300mV

Output Format:RAW 10/12 bit

Shutter type:Electronic Rolling Shutter


ISP:External ISP

DFOV :132°(with the lens provided by e-con)

Download e-CAM21_CUMI290_MOD Documents:

pdf e-CAM21_CUMI290_MOD - 2.0 MP Ultra Lowlight MIPI Camera Module

Download Evaluation Kit (e-CAM21_CUTX2) Documents:

pdf e-CAM21_CUTX2 - 2MP Jetson TX2/TX1 Ultra Lowlight Camera Board

Evaluation Kit:

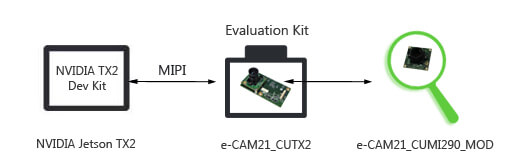

1. ARM Based Solution (NVIDIA® Jetson TX2/TX1)

e-CAM21_CUTX2 - 2MP MIPI Camera Board (Requires NVIDIA® Jetson TX2/TX1 developer kit):

The MIPI Camera daughter card (e-CAM21_CUTX2) can be bought by customers choosing to evaluate the e-CAM21_CUMI290_MOD camera solution with a direct interface on the NVIDIA® Jetson TX2/TX1 developer kit.

check latest price

2. ARM Based Solution (NVIDIA® Jetson AGX Xavier™)

SurveilsQUAD - 2MP MIPI Camera Board (Requires NVIDIA® Jetson AGX Xavier™ developer kit):

The MIPI Camera daughter card (SurveilsQUAD) can be bought by customers choosing to evaluate the e-CAM21_CUMI290_MOD camera solution with a direct interface on the NVIDIA® Jetson AGX Xavier™ developer kit.

US $449
Buy Camera online

Excluding Shipment Charges

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM21_CUMI290_MOD - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for e-CAM21_CUMI290_MOD on any application platform as per customer requirements. For any driver customization or porting services or for using this 2MP camera with your application processor platform, please contact sales@e-consystems.com along with your requirements details.

e-CAM21_CUMI290_MOD - Customization

e-con provides customization, development and porting services for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for OS: Linux
  • Interfacing with any Application Processor : NVIDIA® TX1/TX2, Any other processor with ISP
  • Additional camera customization based on specific requirement

Please contact sales@e-consystems.com with your customization requirements and we will be glad to work with you!
