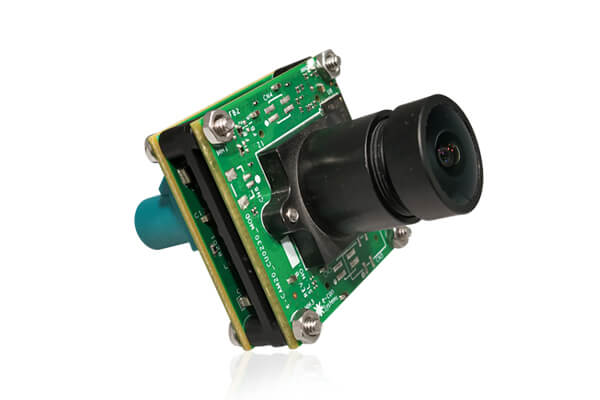

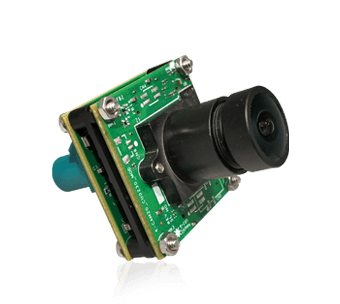

NileCAM20 - Full HD GMSL2 HDR color camera with 15m cable support

Highlights:

  • Houses AR0230AT Full HD Camera Module with S-mount lens holder
  • High Dynamic Range (HDR)
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector

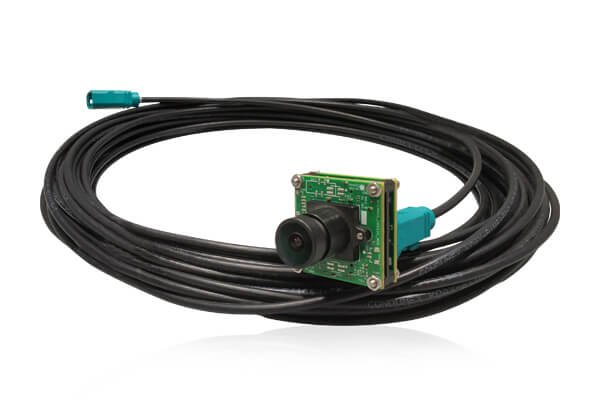

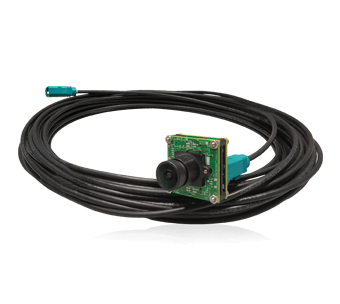

  • Shielded coaxial cable to transmit power and data up to 15m
  • External Trigger support for synchronized multi-camera streaming
  • On-board high performance ISP for excellent image quality
  • Optional IP67-rated enclosure with antifogging capability

Sample Price

Documents

Excluding Shipment Charges

Evaluate NileCAM20 with,

NileCAM20 is a 2 MP camera module based on a 1/2.7" AR0230AT CMOS image sensor from onsemi®.

NileCAM20 uses GMSL interface, a shielded coaxial cable for transmission of both power and data for long distances up to 15m.

This module is capable of streaming uncompressed UYVY format and compressed MJPEG format Capable of high frame rate uncompressed video data of VGA at 60fps, QHD at 58fps, HD at 45 fps, 960p at 34 fps and FHD at 30 fps.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate - Streams FHD@30fps, VGA@60fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • S-mount lens holder for flexibility to choose a lens as per application requirements
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR0230AT from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.7"
    • Output Format: 10 or 12-Bit RGB format
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 1928H x 1088V
    • Array Size: 1928H x 1088V
    • Responsivity: 4.0 V/lux-sec
    • SNR: 41 dB
    • Dynamic Range: Max up to 96 dB
    • Holder: M12 (S-Mount)
    • FOV: 128°(D), 115° (H), 67.5°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: Max : 2.196W, Min : 0.78W
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
Part No Supported Platforms Sample Price
(1 Unit)
Purchase
NileCAM20_CUOAGX
Kit Contents
  • NileCAM20 - AR0230 Full HD GMSL2 HDR Camera
  • Deserializer board
  • 3/15 meters coaxial cable
NVIDIA® Jetson AGX Orin™ Dev Kit
STURDeCAM20_CUOAGX
Kit Contents
  • STURDeCAM20 - AR0230AT Full HD GMSL2 HDR Camera
  • Deserializer board
  • 3/15 meters coaxial cable
NVIDIA® Jetson AGX Orin™ dev kit
STURDeCAM20_CUXVR
Kit Contents
  • STURDeCAM20 - IP67 Full HD GMSL2 HDR camera
  • Deserializer board
  • 15 meters coaxial cable
NVIDIA® Jetson AGX Xavier™ Dev Kit USD 649 ContactUs
NileCAM20_CUNX
Kit Contents
  • NileCAM20 - AR0230 Full HD GMSL2 HDR Camera
  • Deserializer board
  • 15 meters coaxial cable
NVIDIA® Jetson Xavier™ NX Dev Kit

NileCAM20_CUOAGX-NVIDIA® Jetson AGX Orin™ Dev Kit

Sample Price (1 Unit)-

buy e-con camera

STURDeCAM20_CUOAGX-NVIDIA® Jetson AGX Orin™ dev kit

Sample Price (1 Unit)-

buy e-con camera

STURDeCAM20_CUXVR-NVIDIA® Jetson AGX Xavier™ Dev Kit

Sample Price (1 Unit)-USD 649

STURDeCAM20_CUXVR

NileCAM20_CUNX-NVIDIA® Jetson Xavier™ NX Dev Kit

Sample Price (1 Unit)-

buy e-con camera



 Bullat Arrow  Datasheet

Download Full HD USB Camera Documents

NileCAM20 - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM20 on any application platform as per customer requirements.

NileCAM20 - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

ContactUs

Targeted Applications

  • Smart Traffic Management
