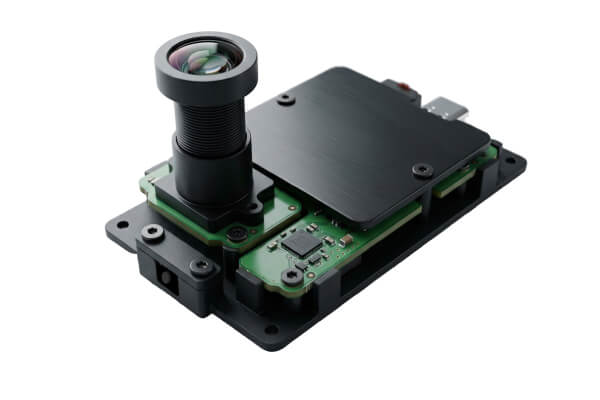

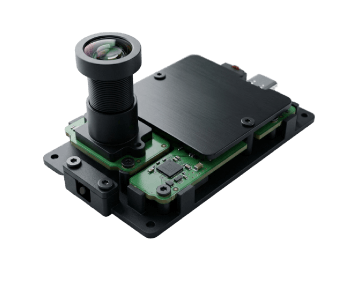

AireCAM Wi-Fi OEM Camera Platform is a customizable wireless IP camera platform designed to help OEMs and solution providers evaluate, prototype, and productize Wi-Fi camera solutions. Built around onsemi's AR1335 13MP image sensor, the platform supports high-resolution still image capture up to 13MP, along with video streaming at 2MP, 3MP and 5MP.
The platform supports ONVIF-compliant RTSP streaming with H.265 video encoding, enabling efficient bandwidth utilization and seamless integration with VMS, cloud, and remote monitoring systems. Interchangeable M12 lens support allows flexible field-of-view customization, making the platform suitable for a wide range of imaging applications.
AireCAM supports standalone edge operation through SD card-based local storage, offering manual and optional external trigger support. The platform also supports cloud image transfer to AWS S3, Google Cloud Platform, and Microsoft Azure, with video upload support available on request.
Designed as an OEM-ready platform, AireCAM enables extensive customization including image sensors, optics, illumination, battery integration, enclosure design, mounting options, and connectivity extensions such as LTE, BLE, and additional sensors. The platform also serves as the foundation for production-ready solutions such as SHELFVista, demonstrating how AireCAM can be adapted for real-world deployments.
Refer
Datasheet for complete frame rate details.
- Product Overview:
-
- Camera Type: Wi-Fi IP Camera
- Image sensor: AR1335- 13MP, 1/3.2” (20MP* Customization)
- Shutter Type : Rolling
- Max still capture resolution: 13MP
- Video resolution: 2MP, 3MP & 5MP
- Video Encoding: H.265
- Video Streaming: RTSP (ONVIF Compliant).
- Optics:
-
- Lens mount: M12
- Field of view:
- 2MP: 1920 x 1080 - 101.77°(D), 88.05°(H), 49.40°(V)
- 3MP: 2048 x 1560 - 122.69°(D), 96.98°(H), 74.46°(V)
- 5MP: 2560 x 1920 - 73.98°(D), 59.94°(H), 45.23°(V)
- Focus Type: Fixed
- Connectivity & Interface:
-
- Connectivity: Wi-Fi 4 (Dual Band- 2.4 GHz & 5 GHz)
- Wi-Fi standard: IEEE 802.11n
- Security Mode: WPA2/3
- SD Card: Supported
- External Trigger Support: Support on request
- Action Button: For Still Capture & Video Recording.
- Status Indicator: Status LED available
- Cloud Integration Support: Still Capture- Cloud transfer Option- Available. S3, GCP, Azure. Video Upload (Support on request).
- Processor:
-
- CPU: ARM® Cortex A5
- NPU: 1 TOPS (INT 8/INT16 Support)
- Electrical:
-
- Power input: 5V, 3A via USB-C
- Power Consumption: Info is available in Product Datasheet
- Battery: Customization
- Mechanical:
-
- Dimensions: 79.2 x 45.4 x 22.5 mm (Without Lens)
- Enclosure: Customization*
- Environmental:
-
- Operating temperature: -30 to 70 °C
- Software & Configuration:
-
- Camera configuration: Mobile Application (Android & Ios); Windows & Linux.
- Imaging Configuration: Brightness, Contrast, Saturation, Sharpness and frame rate control.
AireCAM Wi-Fi OEM Camera Platform is designed to support application-specific customization, enabling OEMs and solution providers to adapt the platform for their product and deployment requirements.
Customization support includes:
- Imaging and optics: image sensor options, lens selection (M8/M12), and ISP Tuning based on Applications.
- Mechanical and power: Enclosure design, Mounting options and Battery integration.
- Connectivity and expansion: cellular (LTE), BLE, and additional sensor or peripheral integration
- Software and integration: Firmware customization, cloud workflow adaptation, and API/SDK support
- Customization is delivered through structured engineering engagement based on project feasibility, scope, and requirements
