8MP(4K) AR0830 RGB-IR USB 3.2 Gen 1 Camera

Overview

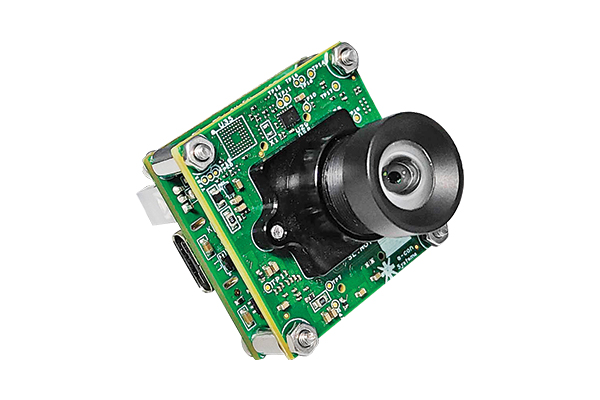

See3CAM_CU83 is a 4K RGB-IR USB 3.2 Gen 1 superspeed camera with a reversible plug-and-play Type-C interface. It extracts images in both RGB and IR spectrums easily without having to endure color corruption or requiring a mechanical switch. This ensures high imaging performance in day and night conditions for seamless 24X7 image and video capture.

This UVC-compliant RGB IR camera streams video data of 4K @15fps and Full HD @30fps. Also, this 4K camera can capture images at high frame rates without any motion blur and its IR sensitivity helps to produce excellent image quality even in the Near Infrared (NIR) regions.

Refer Datasheet for complete frame rate details.

Specifications

Key features:
- Houses - 8MP AR0830 RGB-IR camera module
- Framerate:
- - UYVY (RGB): Full HD at 60 fps & 8MP (4K) at 15 fps
  - Y16 (RGB + IR): 5MP @12fps & 4K@7fps
  Refer Datasheet for complete frame rate details.
- Output format: RGB - UYVY & IR - UYVY
- Supported OS: Windows, Linux, Android * and MAC **
- Unique ID for each camera
- Lightweight, versatile, and portable design
Interface:
- Interface: USB 3.2 Gen 1 device
- Connector: Type-C reversible interface connector
- UVC Compliant - no additional drivers required
- Backward compatible with USB 2.0 hosts
Module features:

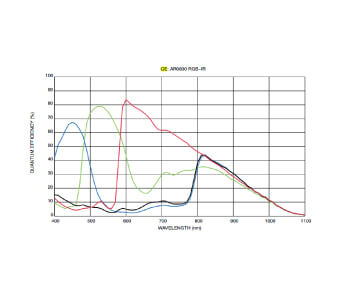

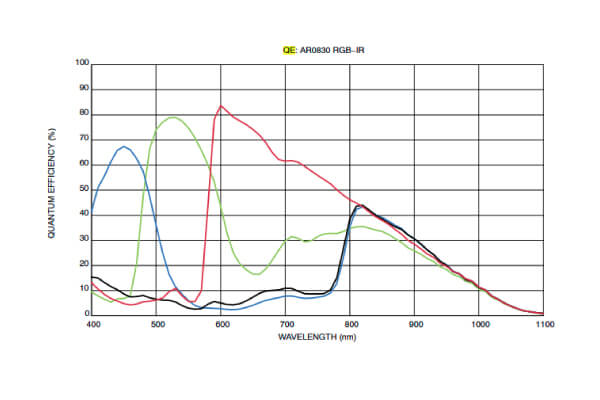

- Sensor: AR0830 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 8MP
- Chroma: Color, NIR
- Shutter type: Electronic Rolling Shutter
- Optical Format: 1/2.9"
- Output Format: Uncompressed UYVY, Y16
- Pixel size: 1.4 μm x 1.4 μm Back Side Illuminated (BSI)
- Sensor Active Area: 3840 (H) x 2160 (V)
- Array Size: 3840 (H) x 2160 (V)
- SNR: 39.9dB
- Dynamic Range: 73dB
- Holder: M12 (S-Mount)
- FOV: TBD
Electrical & Mechanical:
- Operating Voltage: 5 V +/- 5%
- Operating Temperature Range: -30°C to +85°C
- Power requirements: TBD
- Size in mm (l x b) : 30 x 30 mm
Miscellaneous:
- Compliance: RoHS
* - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
** - For MAC OS support, please contact camerasolutions@e-consystems.com

Software

Supported OS - Windows, Linux, Android ^* and MAC ^**
Sample Application:
- e-CAMView – Windows Camera application for Video Preview and Still Capture.
- QtCAM – Linux Camera application for Video Preview and Still Capture.
UVC Controls:
- RGB Controls:
  - Brightness
  - Contrast
  - Saturation
  - Gain
  - Sharpness
  - Exposure (Auto & Manual)
  - Gamma
  - Powerline Frequency
  - White Balance (Auto and Manual)
  - Roll
- IR Controls:
  - Gain
  - Exposure
  - Roll
HID Controls:
- RGB Controls:
  - Special Effects, Flip and Mirror
  - Auto Exposure – ROI based
  - Anti-Flicker Mode,
  - Denoise
  - Exposure compensation
  - Framerate control
Please contact camerasolutions@e-consystems.com for any customization requirements.
* - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
** - For MAC OS support, please contact camerasolutions@e-consystems.com

Documents

Ordering Info

Customers who own platforms that support USB 3.2 Gen1 and are interested in evaluating the 8MP RGB-IR USB camera module can directly purchase the See3CAM_CU83 from e-con Systems.

Part No	Description	Sample Price (1 Unit)	Purchase
See3CAM_CU83_CHLCC_H02R1	8MP USB 3.2 Gen 1 RGB-IR Camera	-

See3CAM_CU83_CHLCC_H02R1-2MP USB 3.2 Gen 1 Global Shutter RGB-IR Camera

Sample Price (1 Unit)--

In addition to See3CAM_CU83, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension. For more details, please refer to the evaluation kit contents below.

For all enquiries please write to camerasolutions@e-consystems.com for more details.

Kit Contents:

See3CAM_CU83:
- See3CAM_CU83 - 8MP USB 3.2 Gen 1 RGB-IR Camera board with S-Mount Lens Holder
- USB 3.2 Gen 1 - Type-C Cable
- Lens (Optional)
Software: (Customers will have to download the software from e-con Developer Resource).
- Supported OS: Windows, Linux, Android ^* and MAC ^**
- e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
Documents:
- See3CAM_CU83 - Hardware and Software documents
* - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
** - For MAC OS support, please contact camerasolutions@e-consystems.com

Customization

See3CAM_CU83 – Customization

Do you need a Custom lens mount (C-mount/CS-Mount)?
Do you want a smaller form factor solution?
Do you need LED flash?
Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

See3CAM_CU83 - 4K AR0830 RGB-IR USB 3.2 Gen 1 Camera
