NeduCAM81_CUTDA4 - 4K HDR FPD-Link III camera for Texas Instruments® SK-TDA4VM (up to 4 cameras)


  • Houses 8MP AR0821 camera module from onsemi®
  • High Dynamic Range (HDR)
  • Plugs into Texas Instruments® SK-TDA4VM developer kit
  • FPD-Link III interface to transmit power and data up to 15m
  • On-board high performance ISP
  • Optional IP67-rated enclosure

Samples Available

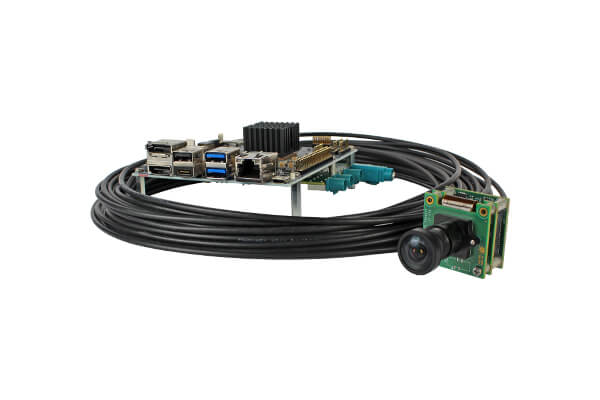

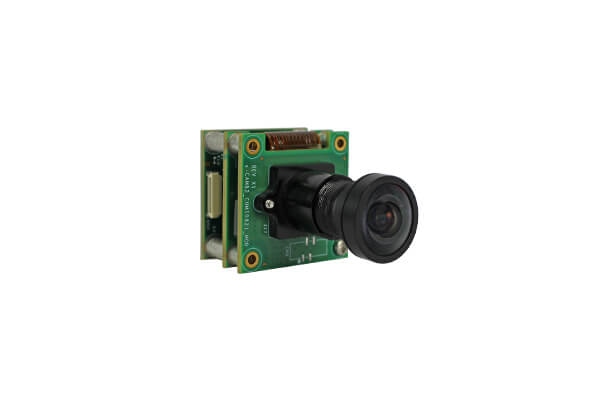

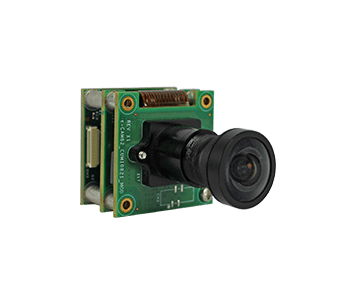

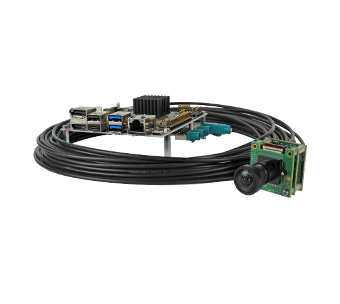

NeduCAM81_CUTDA4 is an advanced 4K custom lens HDR camera that features a high-performance 1/1.7" AR0821 CMOS sensor from onsemi®. This camera is designed to seamlessly integrate with Texas Instrument's SK-TDA4VM - TDA4VM processor starter kit. This camera setup includes NeduCAM81 camera modules, featuring an 8MP HDR color camera module with FPD-Link III serializer, a 15-meter coaxial cable with FAKRA connector, and an FPD-Link III deserializer board with four camera connectors.

This cutting-edge multi-camera solution offers a comprehensive vision solution for product developers focused on building Edge AI based embedded vision systems. With HDR capability, NeduCAM81_CUTDA4 excels in producing remarkably clear and sharp images even in challenging lighting conditions. Additionally, the camera incorporates a standard M12 lens holder, allowing customers to use customized optics or lenses to suit their specific application needs

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame rate: HD @ 60fps, Full HD @ 60 fps, 4K @ 22 fps
      Refer pdfDatasheet for complete frame rate details.
    • Uncompressed UYVY streaming
    • High-speed MIPI CSI-2 interface to connect with the CPU
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: FPD-Link III
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR0821 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.7"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 2.1 μm x 2.1 μm
    • Sensor Active Area: 3848H x 2168V
    • Array Size: 3848H x 2168V
    • Lens Holder: M12 (S-Mount)
    • DFOV: 120°(D), 104.8°(H), 58.7°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: TBD
    • Size in mm (l x b):
      • Camera module: 30 x 30 mm
      • Deserializer board: 65 x 67 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
Linux camera driver:

e-con Systems provides Gstreamer and V4L2 commands that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.

  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
    • Gstreamer-1.0 support for video recording
  • Camera Controls:
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gain
    • Gamma
    • Exposure (Manual and Auto)
    • Horizontal Flip
    • Vertical Flip
    • Trigger
  • Please contact for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download 5MP Camera Documents

NeduCAM81_CUTDA4 - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NeduCAM81_CUTDA4 on any application platform as per customer requirements.

NeduCAM81_CUTDA4 - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact for customization requirements.
