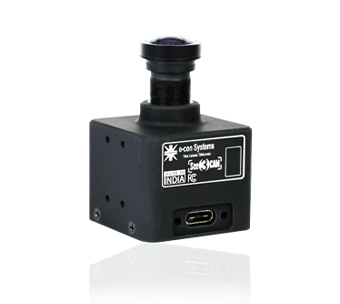

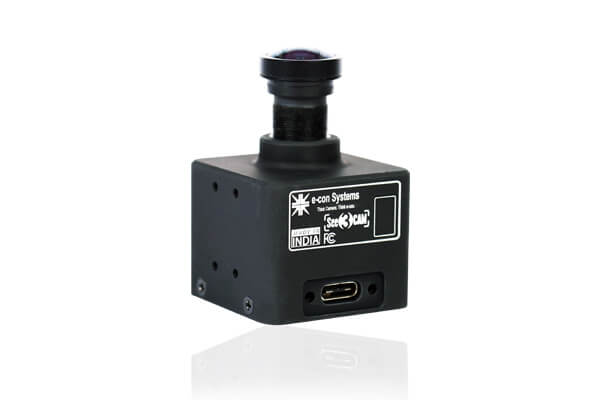

See3CAM_CU81 - 4K HDR USB Camera

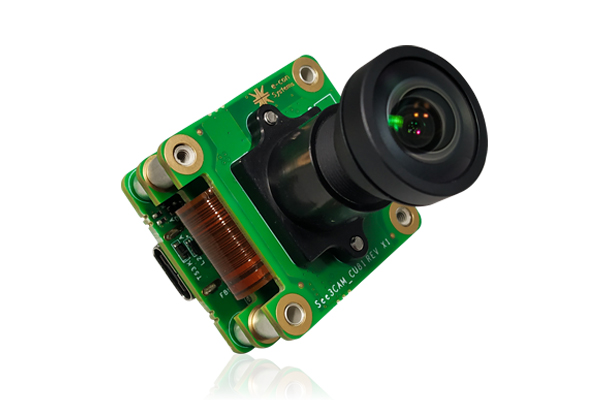

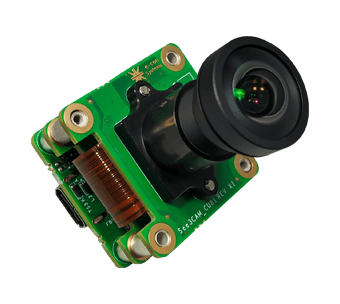

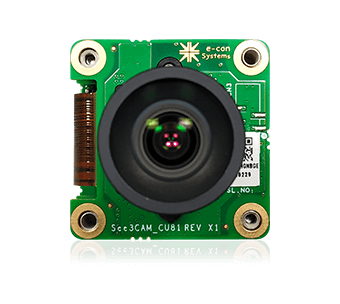

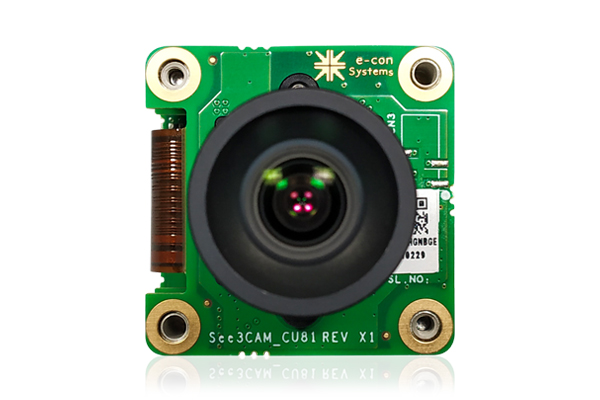

See3CAM_CU81 is an 4K, HDR, USB 3.1 Gen 1 camera. This 8MP USB camera is based on AR0821 CMOS color image sensor from ON Semiconductor®. It has a high-performance built-in Image Signal Processor (ISP) which is fine-tuned to achieve the best image output from the sensor. HDR capability of this camera helps to produce exceptionally clear, sharp and low noise images even in challenging lighting conditions. This fixed focus camera has an easily interchangeable M12 lens.

It is a UVC compliant USB 3.1 Gen 1 camera that is also backward compatible with USB 2.0 host ports. This plug-and-play camera allows the transmission of both uncompressed and compressed video data reliably. It provides throughputs capable of streaming MJPEG video data of 1080p @ 60fps and UYVY video data of 1080p @ 60fps. Read More »

Key Features

  • Houses 8MP ON Semiconductor AR0821 CMOS Image Sensor
  • Fixed Focus
  • On-board high performance ISP
  • Linear or HDR Mode
  • Output format: Uncompressed UYVY, compressed MJPEG
  • Frame Rate :
    • Full HD @ 30 fps, 4K @ 30 fps (HDR Mode)
    • Full HD @ 60 fps, 4K @ 30 fps (Linear Mode)
  • Supported OS : Windows, Linux, Android* and MAC**
  • USB3.1 Gen 1 device with Type C reversible interface connector
  • UVC compliant : no additional drivers required. Also backward compatible with USB 2.0 hosts
  • Operating Voltage 5V +/- 5%
  • Operating Temperature Range: -30°C to 70°C
  • Power requirements :
    • Max : 1.73W (Linear Mode MJPEG)
    • Min : 1.05W (Linear Mode UYVY)
  • Size in mm (l x b x h) : 30 x 30 x 31.5 mm (with out lens)
  • Board Weight :
    • 165 Grams (with out lens)
    • 275 Grams (with lens)
  • Compliant with CE / FCC / RoHS
  • Lightweight, versatile, and portable solution
  • Unique ID for each camera
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Module Features:

Sensor:AR0821 from ON Semiconductor

Focus Type:Fixed focus

Sensor Resolution:8MP

Chroma:Color

Optical Format:1/2" Optical format

Output Format:Uncompressed UYVY and Compressed MJPEG

Pixel size:2.1 μm x 2.1 μm

Sensor Active Area:3848H x 2168V

Responsivity:15.4 ke-/lux-sec

SNR:41.8 dB

Dynamic Range:Max upto 140 dB

Array Size:3848H x 2168V

Holder:M12 (S-Mount)

DFOV:8MP - 120° (with the lens provided by e-con)

  • Supported OS : Windows, Linux, Android* and MAC**
  • Sample Application :
    • e-CAMView - Windows Camera application for Video recording, Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video recording, Video Preview and Still Capture.
  • Still Image Resolutions :
    • 8MP (both JPEG and BMP)
  • Still Capture :
    • Software application control
    • Software trigger
  • UVC Controls :
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gamma control
    • Gain
    • White Balance (Manual and Auto)
    • Exposure (Manual and Auto)
  • Additional Capabilities:
    • Anti Flicker Mode
      • Auto Mode
      • Manual Mode
    • Orientation
      • Horizontal Mirror
      • Vertical flip
    • Sensor Mode
      • Linear Mode
      • HDR Mode
    • Effects
      • Normal
      • Gray scale
    • Burst Image Capture
    • Denoising
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Download See3CAM_CU81 - Technical Documents:

 Bullat Arrow  Datasheet

 pdf  See3CAM_CU81 - Datasheet

 Bullat Arrow  User Manual

 pdf  See3CAM_CU81 - Getting Started Manual

 pdf  See3CAM_CU81 - Lens Datasheet

 Bullat Arrow  Windows

 pdf  e-CAMView Streaming Application User Manual

 pdf  e-CAMView Installation Manual

 pdf  Extension Unit SDK API Manual

 pdf   Firmware Updater Application User Manual

 Bullat Arrow  Linux

 pdf  QtCAM Streaming Application Installation Manual

 pdf  QtCAM Streaming Application User Manual

Download 8MP USB Camera Documents

Ordering Info:

Customers who own platforms that support USB 3.1 Gen 1 and are interested in evaluating the 4K HDR USB camera module can directly purchase See3CAM_CU81 from e-con Systems™. Customer can order See3CAM_CU81 with/without lens.

Part No Description Sample Price
(1 Unit)
Volume Price
(1000s Pack)
Purchase
See3CAM_CU81_CH 8MP USB 3.1 Gen 1 Camera with Type C reversible interface connector - - 4K Camera Customization
See3CAM_CU81_CHL 8MP USB 3.1 Gen 1 Camera with Type C reversible interface connector and
lens
- - 4K Camera Customization

In addition to See3CAM_CU81, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10, Windows 8.1, Linux). For more details, please refer the evaluation kit contents below.

For all enquiries, please write to sales@e-consystems.com

Kit Contents:

  • Hardware:
    • See3CAM_CU81 - 4K HDR USB Camera with M12 Lens (S-Mount) Holder

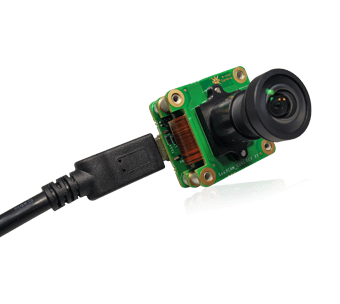

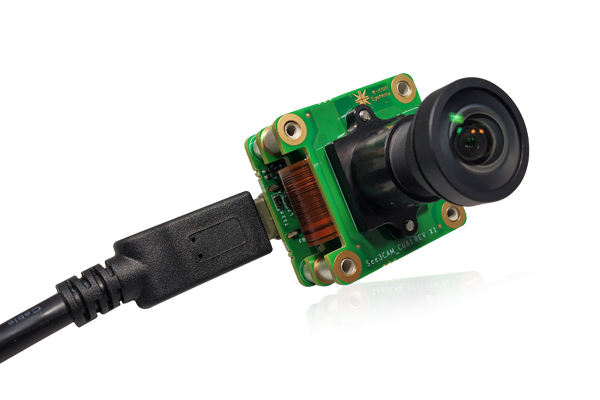

    • USB3.1 Gen 1 Type-C Cable
    • Lens (Optional)
  • Software:
    • Supported OS: Windows 8.1/10, Linux
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview, Video recording and Still Capture Application
  • Documents:

See3CAM_CU81 - Customization

  • Do you need a Support for external mechanical shutter?
  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor or single board solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

4K Camera Customization
