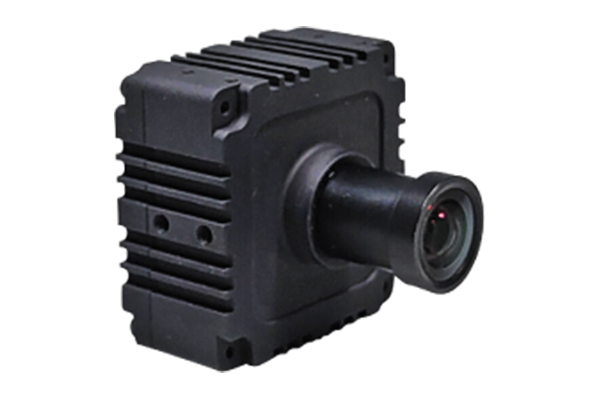

STURDeCAM88 - 4K 140dB HDR Front View Camera for Mobility

• Key features:
• • Frame Rate - 4K @ 30fps, 1080p @ 30 fps
    Refer Datasheet for complete frame rate details.
  • Output format: UYVY
  • S-mount IP67 compliant lens focused and glued at factory
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: GMSL2™

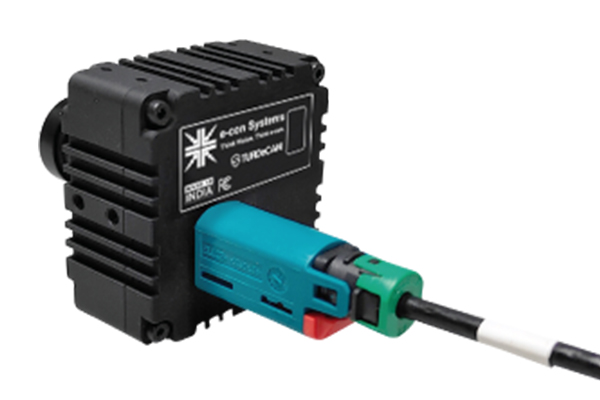

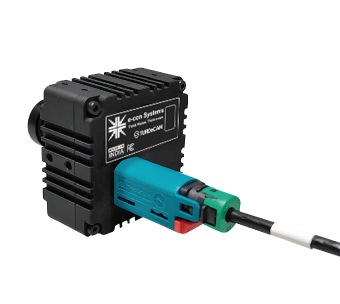

  • Connector: FAKRA connector
  • Cable Length: 3m by default, Please contact camerasolutions@e-consystems.com for 15m cable
• Sensor features:
• • Sensor: OX08B40 from OmniVision
  • Focus Type: Fixed focus
  • Sensor Resolution: 8.3MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/1.73"
  • Output Format: UYVY
  • Pixel Size: 2.1μm x 2.1μm
  • Sensor Active Area: 3840(H) x 2160(V)
  • Dynamic Range: Max upto 140 dB
  • Holder: M12 (S-Mount)
  • FOV:
    • Narrow angle: 68.23°(H), 38.83°(V), 80.22°(D) (with the lens provided by econ)
    • Wide angle: 120.12°(H), 67.04°(V), 137.36°(D)
• Electrical & Mechanical:
• • Operating Voltage: 10 to 17V with +/- 5% tolerance
  • Operating Temperature Range: -40°C to 80°C
  • Board weight : 80g (with narrow angle lens)
• Standards and Compliance:
• • FCC Class-B, RoHS
  • IP67 Certified (Dust tight with protection against close-range high pressure, high temperature spray downs)
• Launched on:

Environmental tests	ISO16750-4	Road vehicles Environmental conditions and testing for electrical and electronic equipment Part 4: Climatic loads
	ISO16750-3	Road vehicles Environmental conditions and testing for electrical and electronic equipment Part 3: Mechanical loads
Electrical tests	ISO 11452-4	Road vehicles Component test methods for electrical disturbances from narrowband radiated electromagnetic energy Part 4: Bulk current injection (BCI) 20MHz to 200MHz @60mA
	CISPR-32	Electromagnetic compatibility of multimedia equipment - Emission requirements 30MHz to 6000MHz
	EN 61000-4-3:2020	Electromagnetic compatibility (EMC) - Part 4-3 : Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test 80MHz to 6000MHz @ 3V/m

   STURDeCAM88 Documents

STURDeCAM88 - Datasheet



STURDeCAM88 - Customization and Porting Services for other Application Processor platforms:

e-con Systems® provides camera driver development, customization and porting services for STURDeCAM88 on any application platform as per customer requirements.

STURDeCAM88 - Customization:

e-con provides customization, development and porting services for the following requirements:

• IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
• Length of the co-axial cable
• Change of lens to meet your FOV and other requirements
• Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
• Support for other processor platforms
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
