STURDeCAM39 is an automotive-grade camera built on the OmniVision® OX03J10 CMOS sensor with an inbuilt ISP, leveraging PureCel® Plus technology and a 3µm Deep Well™ split pixel design to deliver superior imaging performance. It is suitable for ADAS applications such as 360° surround view, rear-view monitoring, and forward road monitoring systems.
Equipped with 140dB HDR, LED Flicker Mitigation (LFM), distortion correction, and an aiming function, the camera ensures consistent, high-quality visuals even in challenging lighting and real-world driving conditions. Housed in a rugged IP69K-rated enclosure and supporting up to 15m GMSL cable connectivity, the STURDeCAM39 offers the durability and accuracy required for advanced automotive vision systems.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate: 3MP @ 30fps
ReferDatasheet for complete frame rate details.
- Output format: UYVY
- GMSL2 Interface to transmit power and data up to 15m
- IP69K Automotive grade enclosure
- S-mount IP69K compliant lens focused and glued at factory
- Light weight, versatile and portable design
- Frame Rate: 3MP @ 30fps
- Interface:
-
- Interface: GMSL2™
- Connector: FAKRA connector
- Cable Length: upto 15m
- Sensor features:
-
- Sensor: OMNIVISION®'s OX03J10
- Focus Type: Fixed focus
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling shutter
- Optical Format: 1/2.4"
- Output Format: UYVY
- Pixel Size: 3.0μm x 3.0μm
- Sensor Active Area: 1920 (H) x 1536 (V)
- Focus distance - 0.5M to infinity
- Dynamic Range: upto 140dB
- Lens Holder: S-Mount
- FOV:
- Lens Option 1 : 196.7°(H), 155.1°(V), >=200°(D) (Default lens provided by e-con)
- Lens Option 2 : 121°(H), 96.7°(V), 164.5°(D)
- Electrical & Mechanical:
-
- Operating Voltage: 12V+/-250mV
- Operating Temperature Range: -40°C to 85°C
- Typical power consumption: 1.332W
- Size in mm (l x b):
- Enclosure with lens - 25mm x 25mm x 48.53mm
- Enclosure without lens - 25mm x 25mm x 38.77mm
- Miscellaneous:
-
- Compliance: RoHS
Emission standards:
| S.No | Certification | Description |
|---|---|---|
| 1 | FCC Part 15, Subpart B, Class B |
Regulates EMI from electronic devices to prevent interference with other equipment. |
| 2 | CE & RoHS |
CE ensures EMC compliance; RoHS restricts hazardous substances in electronic products. |
Application-Specific EMC and Environmental Standards Radiated Emission Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 |
CISPR 32 |
Sets EMI limits for multimedia devices to avoid disturbing nearby electronics. |
| 2 | CISPR 25 |
Limits RF emissions in vehicles to protect onboard communication and entertainment. |
| 3 | ISO 14982 |
Ensures EMI-safe operation of agricultural/forestry machines. |
| 4 | ISO 13766-1 |
EMI testing for construction equipment with onboard electronics. |
Radiation Immunity Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | EN 61000-4-3 |
Tests how well a device works when exposed to outside electromagnetic signals. |
| 2 | ISO 11452-2 |
Checks if car parts can handle signal noise in a test room. |
| 3 | ISO 11452-4 |
Sends noise into cables to test if car electronics can still work properly. |
| 4 | ISO 13766-1 |
Tests if construction machines keep working when exposed to strong signals. |
| 5 | ISO 14982 | 5 ISO 14982 Makes sure farm machines work well even when there's a lot of electronic noise. |
Environmental Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | ISO 16750-3 |
Tests if car electronics can survive shocks, drops, and vibration. |
| 2 | ISO 16750-4 |
Checks if electronics can handle heat, cold, and humidity in real-world conditions. |
| Part No | Kit Contents |
Sample Price (1 Unit) |
Purchase |
|---|---|---|---|
| STURDeCAM39_CUOAGX |
NVIDIA® Jetson AGX Orin Dev Kit |
- |
|
STURDeCAM39 - Customization for other Application Processor platforms:
e-con Systems® provides camera driver development, customization and porting services for STURDeCAM39 on any application platform as per customer requirements.
STURDeCAM39 - Customization:
e-con provides customization for the following requirements:
- IP rated (IP69K) enclosure and IP rated (IP69K) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

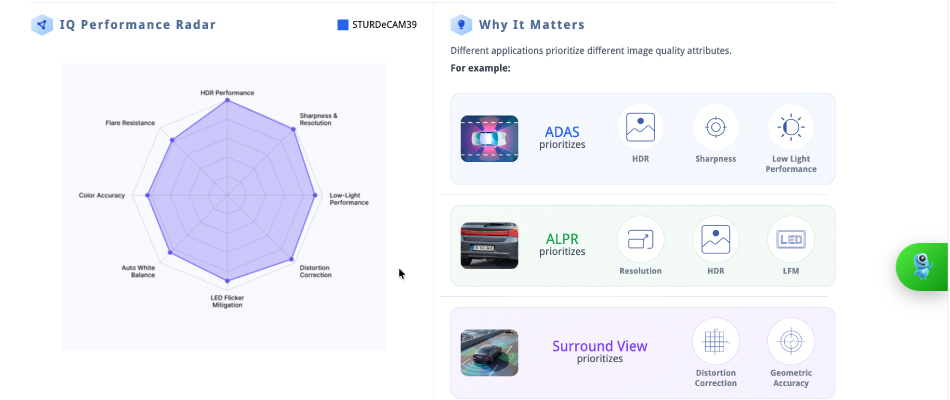

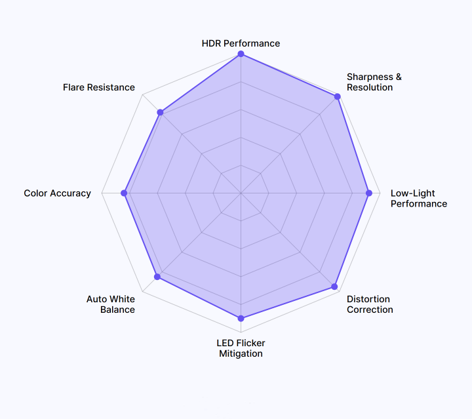

The IQ performance score reflects the camera's suitability for specific vision applications based on image quality evaluation across key parameters such as sharpness, dynamic range, noise, color accuracy, and motion handling.
Unlock the complete IQ Report to view scene-level benchmarks and IQ performance data
