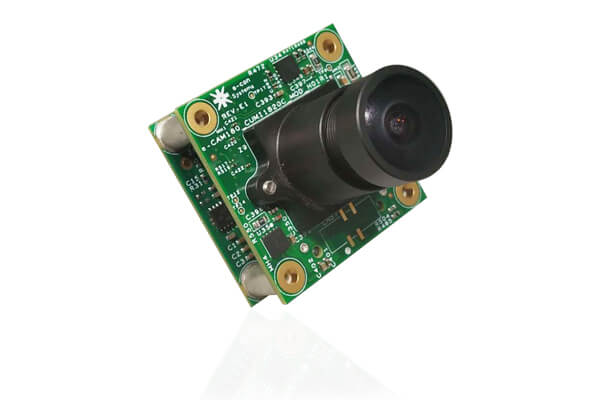

e-CAM180_CUNX - 18 MP Camera for NVIDIA® Jetson Xavier™ NX

e-CAM180_CUNX is an 18 MP MIPI camera for the NVIDIA® Jetson Xavier™ NX development kit. It is based on the 1/2.3-inch AR1820 sensor from ON Semiconductor®. This MIPI camera provides image output at a resolution of 18 MP with great details.

e-CAM180_CUNX also comes with 4 levels of zoom that allow users to swivel the camera from left to right, tilt it up and down, and zoom in and out of a scene. This MIPI-CSI2 camera uses the NVIDIA® Jetson ISP to produce best-in-class image output in uncompressed YUV format. Read More »

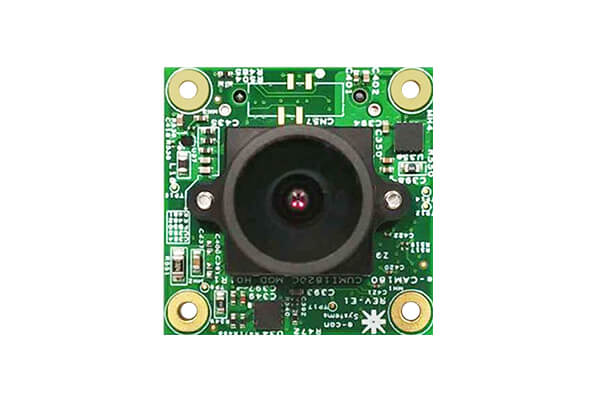

  • Houses e-CAM180_CUMI1820_MOD - 18 MP Camera Module with S-mount lens holder
  • Rolling Shutter
  • Multi board solution
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Control for individual cameras and number of cameras to be streamed are selectable
  • NVIDIA® Jetson ISP

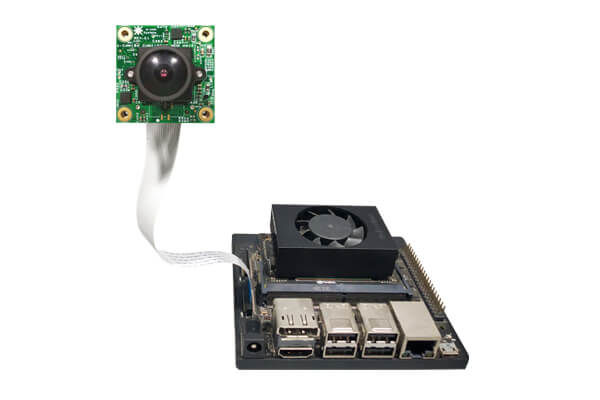

  • Plugs in to NVIDIA® Jetson Xavier™ NX Developer Kit
  • Frame Rate : Streams 18 MP @ 5 fps - Refer pdfDatasheet for complete frame rate details.
  • Operating Voltage : 3.3V +/- 5%
  • Linux camera driver (V4L2) for 18 MP MIPI CSI-2 camera module
  • Operating Temperature Range: -30°C to 70°C
  • Power Consumption:
    • Max: 2.54 W
  • Board Weight :
    • 16.5 Grams (with lens)
    • 10.5 Grams (without lens)
  • Size in mm (l x b): 30 mm x 30 mm
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Lightweight, versatile, and portable design
  • Compliance
    • FCC
    • RoHS
  • Launched on: 16-nov-2021

Module Features:

Sensor:AR1820HS Color sensor from ON Semiconductor

Sensor Resolution:18 MP

Optical Format:1/2.3"

Sensor type:18 MP CMOS Sensor with Color output

Shutter type:Rolling Shutter

Focus Type:Fixed focus

Output Format:12-bit Raw format

Pixel size:1.25μm x 1.25μm pixel

Sensor Active Area:4912H x 3684V

Responsivity:0.62 V/lux-sec

SNR:36.3 dB

Dynamic Range:65.8 dB

Array Size:4912 x 3684 pixels

DFOV :18.0 MP - 133.9° (with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM180_CUNX on NVIDIA® Jetson Xavier™ NX developer kit.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson Xavier™ NX - JetPack 4.5.1 L4T32.5.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Sharpness
    • Saturation
    • Gamma
    • Gain
    • Exposure (Manual and Auto)
    • White Balance (Manual and Auto)
    • Digital Zoom

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM180_CUNX - Technical Documents:

 Bullat Arrow  Datasheet

pdf  e-CAM180_CUNX Datasheet

pdf  e-CAM180_CUNX Lens Datasheet

 Bullat Arrow  User Manual

pdf  e-CAM180_CUNX Getting Started Manual

pdf  e-CAM180_CUNX Developer Guide

pdf  e-CAM180_CUNX Argus Camera Build and Install Guide

pdf  e-CAM180_CUNX GStreamer Usage Guide

pdf  e-CAM180_CUNX Linux App User Manual

pdf  e-CAM180_CUNX Release Package Manifest

Download Selected Documents

Kit Contents:

SAMPLE PRICE

launch offer icon
USD 129 99
Buy Camera online

Excluding Shipment Charges

Offer Closes on 10th Dec 2021
