e-CAM227_CUMI2312C_MOD - 2MP OV2312 Global Shutter RGB-IR Camera Module

Highlights:

  • 2MP RGB-IR camera module based on OmniVision™ OV2312 sensor
  • Global Shutter
  • On-board high performance ISP
  • Supported interfaces - USB / MIPI / GMSL
  • Operating Temperature Range: -40°C to +80°C
  • Supported platforms - NVIDIA Jetson series / NXP / Raspberry Pi

Sample Price

Documents

Evaluate e-CAM227_CUMI2312C_MOD with,

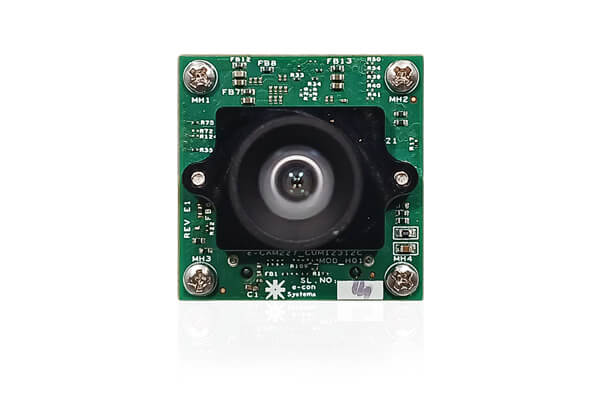

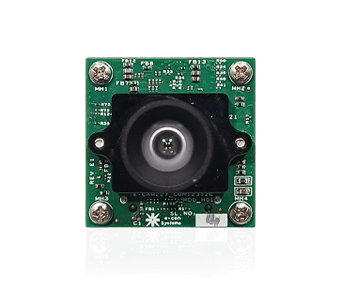

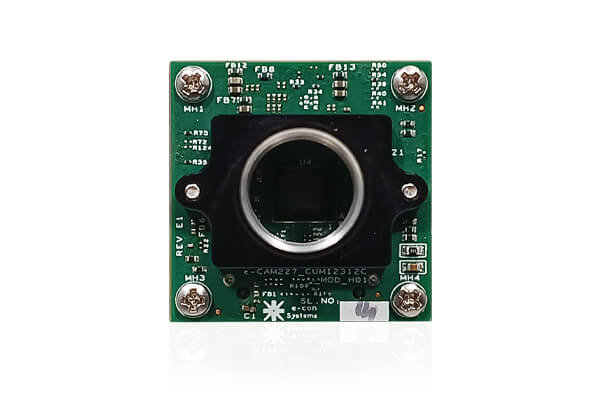

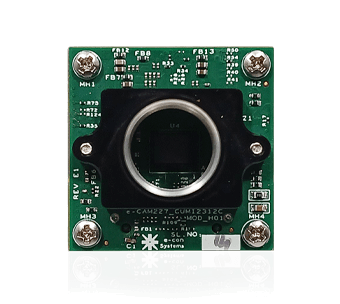

e-CAM227_CUMI2312C_MOD is a 2.0 MP global shutter RGB-IR Camera module. This MIPI camera module is based on OmniVision's 1/2.9" OV2312 Image sensor with 3μm x 3μm pixel OmniPixel® 3-GS technology. It can capture high frame rate images without any motion blur and its IR sensitivity helps to produce stunning image quality even at the Near Infrared (NIR) regions. It has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: 2MP @ 36 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: RGB - UYVY & IR - UYVY
    • High-speed 4-lane MIPI CSI-2 interface
    • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
    • Small form-factor
  • Module features:
    • Sensor: OV2312 from OmniVision™
    • Focus Type: Fixed focus
    • Sensor Resolution: 2MP
    • Chroma: Color, NIR
    • Shutter type: Global Shutter
    • Optical Format: 1/2.9"
    • Output Format: Compressed UYVY
    • Pixel size: 3.0 μm x 3.0 μm
    • SNR: 37.4dB
    • Dynamic Range: 68dB
    • Sensor Active Area: 1600H x 1300V
    • Array Size: 1600 x 1300 Pixels
    • Holder: M12 (S-Mount)
    • FOV: 87.89° (D) x 80.86° (H) x 50.72° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -40°C to +80°C
    • Size in mm (l x b x h) : 30 x 30
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
 Bullat Arrow  Datasheet

Documents  2MP OV2312 Global Shutter RGB-IR Camera

Part No Description Sample Price
(1 Unit)
Purchase
USB Interface
See3CAM_27CUG 2MP RGB-IR global shutter USB 3.2 Gen 1 camera
-
ContactUs
MIPI Interface
e-CAM27_CUiMX8 NXP iMX8 Toradex Development Kit - ContactUs
e-CAM27_CUOAGX NVIDIA® Jetson AGX ORIN / Xavier™ Dev Kit - ContactUs

See3CAM_27CUG-2MP RGB-IR global shutter USB 3.2 Gen 1 camera

Sample Price (1 Unit)

ContactUs

e-CAM27_CUOAGX-NVIDIA® Jetson AGX ORIN / Xavier™ Dev Kit

Sample Price (1 Unit)

ContactUs

e-CAM227_CUMI2312C_MOD - Customization for other Application Processor platforms:

e-con provides customization for e-CAM227_CUMI2312C_MOD on any application platform as per customer requirements.

e-CAM227_CUMI2312C_MOD – Customization

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization
  • For C/CS mount lens holder
  • Driver development for any OS: Linux, Android
  • Interfacing with any Application Processor : NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX Xavier, Nano and any other processor
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
