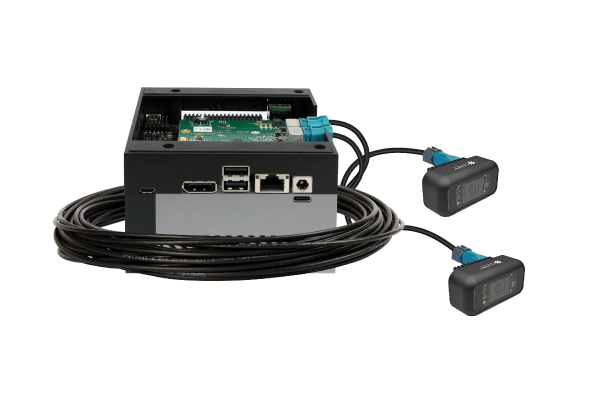

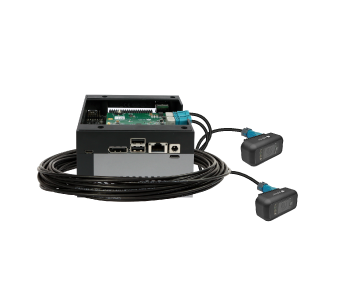

STURDeCAM57_CUOAGX is a 5MP RGB-IR global shutter camera designed for next-generation driver monitoring systems and occupant monitoring systems. Built on the OMNIVISION® OX05B1S sensor, it features a RGB-IR CFA pattern that enables simultaneous capture of visible and infrared images—making it highly effective in both daytime and low-light conditions.
With 2.2µm pixel size and advanced NIR sensitivity, the camera ensures reliable detection of facial features, eye gaze, and driver behavior even in challenging lighting scenarios. The global shutter architecture eliminates motion artifacts, making it ideal for dynamic automotive environments.
The camera integrates a 940nm IR LED for consistent illumination in complete darkness, enabling accurate monitoring without external lighting. Its GMSL2 interface allows high-speed transmission of video, control data, and power over a single coaxial cable up to 15 meters, simplifying system design.
Housed in a rugged IP67-rated enclosure, this compact GMSL camera is built for durability and flexibility in automotive and industrial deployments. It is fully compatible with the NVIDIA Jetson AGX Orin platform, making it ideal for AI-based edge vision applications such as Driver Monitoring System (DMS), Occupant Monitoring System (OMS), In-cabin Monitoring System, Intelligent Transport Systems (ITS), ANPR / ALPR, Biometrics & Access Control and Smart Agriculture.
- Key features:
-
- Frame Rate:
- RGB + IR : 5MP @ 60 fps (30 fps RGB and 30 fps IR)
- RGB : 30 fps
- IR : 30 fps
Refer
Datasheet for complete frame rate details.
- Output format: UYVY RGB and IR
- GMSL2 Interface to transmit power and data up to 15m
- Features 940nm IR-LED with working range of 50cm to 2m
- IP67 Automotive grade enclosure
- Light weight, versatile and portable design
- Frame Rate:
- Interface:
-
- Interface: GMSL2™
- Connector: FAKRA connector
- Cable Length: upto 15m
- Sensor features:
-
- Sensor: OMNIVISION's OX05B1S
- Focus Type: Fixed focus
- Focus Distance : 50cm to 200cm (For DMS and OMS Use case)
- Sensor Resolution: 5MP
- Chroma: Color, NIR
- Shutter Type: Global shutter
- Optical Format: 1/2.5"
- Output Format: MIPI
- Pixel Size: 2.2μm x 2.2μm
- Sensor Active Area: 2592(H) ×1944 (V)
- Dynamic Range: 71 dB
- FOV: 114.76°H x 85.92°V x 148.32°D
- Electrical & Mechanical:
-
- Operating Voltage: 12V with +/- 5% tolerance
- Operating Temperature Range: -40°C to 85°C
- Typical Power Consumption: 3.42W
- Size in mm (l x b): 70 x 35 x 30 mm (with enclosure)
- Board weight : 100 Grams
- Miscellaneous:
-
- Compliance: RoHS
Emission standards:
| S.No | Certification | Test Specifications |
|---|---|---|
| 1 | FCC Part 15, Subpart B, Class B |
Regulates EMI from electronic devices to prevent interference with other equipment. |
| 2 | CE & ROHS |
CE ensures EMC compliance; RoHS restricts hazardous substances in electronic products. |
Application-Specific EMC and Environmental Standards Radiated Emission Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 |
CISPR 32 |
Sets EMI limits for multimedia devices to avoid disturbing nearby electronics. |
| 2 | CISPR 25 |
Limits RF emissions in vehicles to protect onboard communication and entertainment. |
| 3 | ISO 14982 |
Ensures EMI-safe operation of agricultural/forestry machines. |
| 4 | ISO 13766-1 |
EMI testing for construction equipment with onboard electronics. |
Radiation Immunity Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | EN 61000-4-3 |
Tests how well a device works when exposed to outside electromagnetic signals. |
| 2 | ISO 11452-2 |
Checks if car parts can handle signal noise in a test room. |
| 3 | ISO 11452-4 |
Sends noise into cables to test if car electronics can still work properly. |
| 4 | ISO 13766-1 |
Tests if construction machines keep working when exposed to strong signals. |
| 5 | ISO 14982 |
Makes sure farm machines work well even when there's a lot of electronic noise. |
Environmental Standards:
| S.No | Standard | Description |
|---|---|---|
| 1 | ISO 16750-3 |
Tests if car electronics can survive shocks, drops, and vibration. |
| 2 | ISO 16750-4 |
Checks if electronics can handle heat, cold, and humidity in real-world conditions. |
- Linux camera driver:
-
- Full-fledged Linux camera driver for STURDeCAM57_CUOAGX with NVIDIA® Jetson AGX ORIN™ developer kit. The camera driver source code can be ported to any NVIDIA AGX ORIN platform.
- Supported Jetpack & L4T Version:
-
- NVIDIA® Jetson AGX Orin™ - JetPack 6.2 (L4T 36.4.3)
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video preview
- Still Image capture at selected resolutions
- Camera Controls: TBD
-
- Brightness(RGB)
- Saturation(RGB)
- Sharpness(RGB)
- Auto Exposure (RGB & IR)
- Absolute Exposure Time (RGB & IR)
- Gain (RGB & IR)
| Part No | Kit Contents |
Sample Price (1 Unit) |
Purchase |
|---|---|---|---|
| STURDeCAM57_CUOAGX_NIRXLC_AT_1H03R1 |
|
- |
|
| STURDeCAM57_CUOAGX_NIRXLC_AT_1H02R1 |
|
- |
|
| STURDeCAM57_CUOAGX_NIRXLC_AT_2H03R1 |
|
- |
|
| STURDeCAM57_CUOAGX_NIRXLC_AT_2H02R1 |
|
- |
|
STURDeCAM57_CUOAGX_NIRXLC_AT_1H03R1-NVIDIA® Jetson AGX Orin Dev Kit
Sample Price (1 Unit)-
STURDeCAM57_CUOAGX_NIRXLC_AT_1H02R1-NVIDIA® Jetson AGX Orin Dev Kit
Sample Price (1 Unit)-
STURDeCAM57_CUOAGX_NIRXLC_AT_2H03R1-NVIDIA® Jetson AGX Orin Dev Kit
Sample Price (1 Unit)-
STURDeCAM57_CUOAGX_NIRXLC_AT_2H02R1-NVIDIA® Jetson AGX Orin Dev Kit
Sample Price (1 Unit)-
STURDeCAM57_CUOAGX - Customization for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM57_CUOAGX on any application platform as per customer requirements.
STURDeCAM57_CUOAGX - Customization
e-con provides customization for the following requirements:
- IP rated (IP69K) enclosure and IP rated (IP69K) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- Support for other processor platforms
- Camera and features customization based on specific requirements.
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
