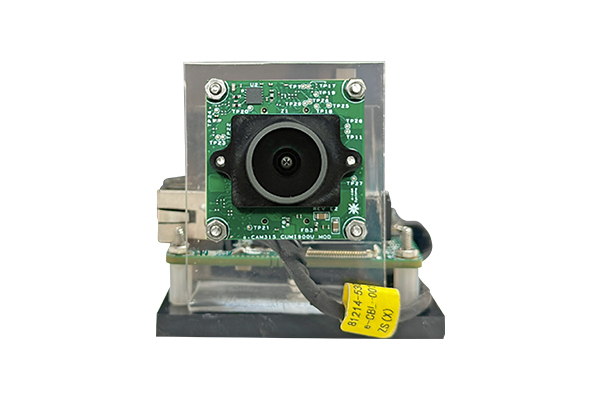

e-CAM37_CUHSB is a 3MP global shutter color camera based on the Sony® Pregius S IMX900 CMOS image sensor. Designed for seamless integration with NVIDIA's powerful Jetson AGX Thor and AGX Orin™ platforms, it connects via the 10G HSB interface, enabling advanced vision solutions with the ultra-low latency required for real-time AI applications.
With e-con Systems' proven expertise in ISP fine-tuning for NVIDIA platforms, this camera delivers superior image and video quality. Its global shutter technology ensures sharp, distortion-free captures even in fast-moving scenes and challenging lighting conditions.
This compact solution combines e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By offloading computationally intensive ISP tasks, it significantly reduces system latency and frees up the NVIDIA GPU and CPU. This hardware acceleration allows the host processor to dedicate its full power to complex AI inference and model execution.
- Key features:
-
- Frame Rate:
- YUV: 3MP @ 72fps
- Bayer: 3MP @ 72fps
- Output Format: Bayer / YUV 12-bit
- Standard S-mount lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: 10G HSB
- Connector: RJ45
- Cable Length: 2m
- Sensor features:
-
- Sensor: Sony® Pregius S IMX900
- Focus Type: Fixed focus
- Sensor Resolution: 3.2MP
- Chroma: Color
- Shutter Type: Global Shutter
- Optical Format: 1/3.1"
- Output Format: RAW 10-bit/12-bit
- Pixel Size: 2.25 μm x 2.25 μm
- Sensor Active Area: 2064 (H) x 1552 (V)
- Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: TBD
- Operating Temperature Range: TBD
- Typical power consumption: TBD
- Size in mm (l x b x h):
- Camera board: 30mm x 30mm
- HSB board: 55 mm x 50 mm x 1.6 mm
- Miscellaneous:
-
- Compliance: RoHS
* - Please contact camerasolutions@e-consystems.com
- Supported Jetpack & L4T Version :
-
- NVIDIA® Jetson AGX Thor - JetPack 7.0
- NVIDIA® Jetson AGX Orin™ - JetPack 6.0 L4T36.3.0
- Userspace Camera sensor Driver :
-
- Video preview
- Still Image capture
- Camera controls (Exposure, Gain, Framerate, Resolution)
- Sample application with source Code for Linux :
-
- Video Preview
- Still Image capture
| Part Number | Kit Contents | Purchase |
|---|---|---|
| e-CAM37_CUHSB_CHLC_1H02R1 |
|
|
