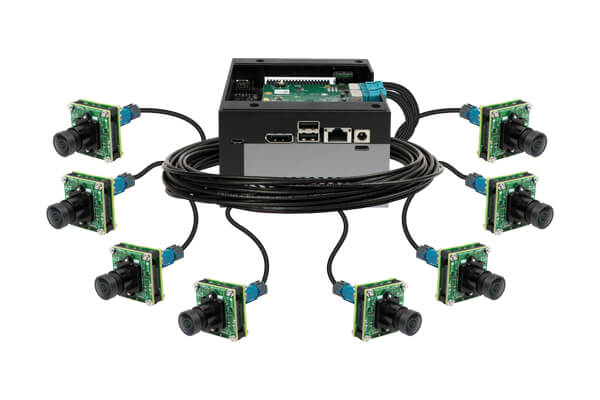

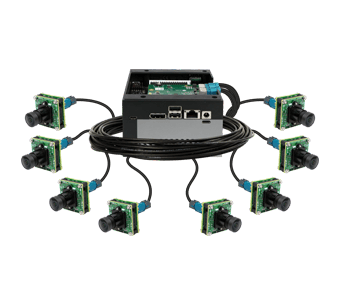

NeduCAM25_CUOAGX - Eight synchronized global shutter FPD-Link III camera with 15m cable support

Highlights

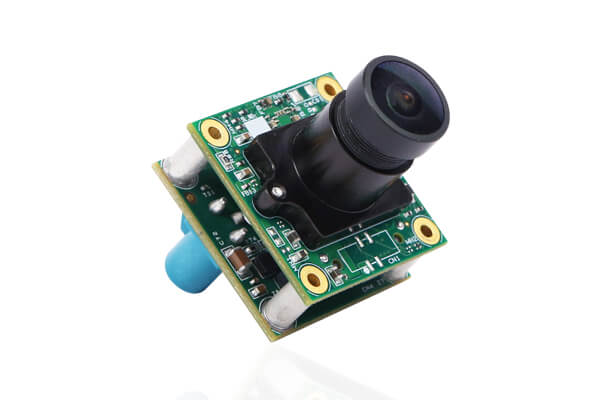

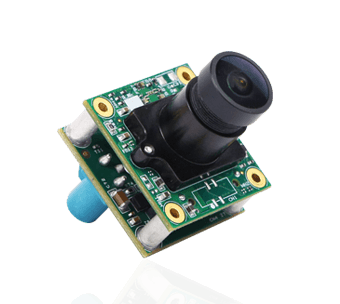

  • Houses NeduCAM25 - Full HD global shutter camera module

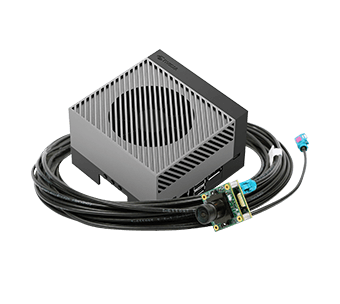

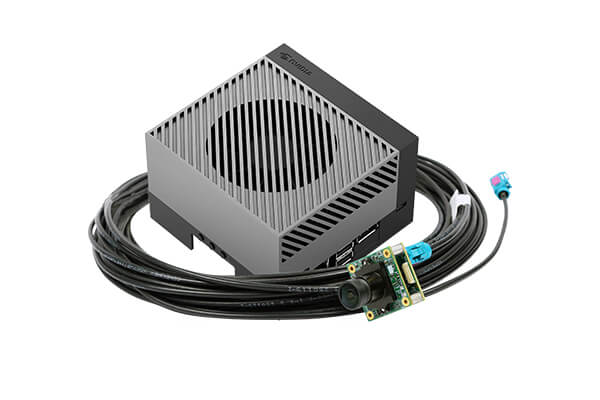

  • Plugs into NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kits
  • Flat Panel Display Link (FPD-Link III) interface with FAKRA connector
  • Coaxial cable to transmit power and data up to 15m
  • External trigger support for synchronized multi-camera streaming
  • On-board high performance ISP
  • Dust and water proof IP67-rated enclosure (optional)

Sample Price

Excluding Shipment Charges

Documents

NeduCAM25_CUOAGX is a full HD global shutter FPD-Link III color camera for NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kit.

It uses an FPD-Link III interface with a15 meter coaxial cable and FAKRA connector to connect to NVIDIA® Jetson AGX Orin™ / AGX Xavier™ platform and is capable of streaming HD at 120 fps, FHD at 65 fps, and 2MP at 60 fps.

Also, this global shutter camera has an onboard high-performance ISP and comes with an optional IP67-rated enclosure.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Streams HD at 120 fps, FHD at 65 fps, and 2MP at 60 fps
      Refer pdfDatasheet for more details.
    • Output format: Uncompressed UYVY format
    • High-speed 4-lane MIPI CSI-2 interface
    • Transmission of video, audio* and power over 15m coaxial cable
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: FPD-Link III
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Module features:
    • Sensor: AR0234CS from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 1920(H) x 1200(V)
    • Array Size: 1920(H) x 1200(V)
    • Responsivity: 56 Ke-/luxsec
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Holder: M12 (S-Mount)
    • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating Voltage: 12V with +/- 5% tolerance
    • Operating Temperature Range: -20°C to 70°C
    • Size in mm (l x b):
      • Camera module: 30 x 30 mm
      • Serializer board : 30 x 30 mm
      • Deserializer board : TBD
  • Miscellaneous:
    • Compliance: FCC, RoHS
  • * - Please contact camerasolutions@e-consystems.com.
  • Launched on: launching date
  • Linux camera driver:
  • Full-fledged Linux camera driver for NeduCAM25_CUOAGX with NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kit.
  • Supported Jetpack & L4T Version:
    • NVIDIA® Jetson AGX Orin™ / AGX Xavier™ - jetpack 5.1.1 and L4T 35.3.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
    • Gstreamer -1.0 support for video recording
  • Please contact sales@e-consystems.com for any customization requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD GMSL2 Global Shutter camera Documents

Product Code Description Sample Price
(1 Unit)
NeduCAM25_CUOAGX_CHLC_1H01R1
Single camera for NVIDIA® Jetson AGX Orin™ / AGX Xavier™

NeduCAM25_CUOAGX_CHLC_4H01R1
Four cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier™

NeduCAM25_CUOAGX_CHLC_8H01R1 Eight cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier™

NeduCAM25_CUOAGX_CHLC_1H01R1-Single camera for NVIDIA® Jetson AGX Orin™ / AGX Xavier™

Sample Price (1 Unit)-

buy now

NeduCAM25_CUOAGX_CHLC_4H01R1-Four cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier™

Sample Price (1 Unit)-

buy now

NeduCAM25_CUOAGX_CHLC_8H01R1-Eight cameras for NVIDIA® Jetson AGX Orin™ / AGX Xavier™

Sample Price (1 Unit)-

buy now



NeduCAM25_CUOAGX - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NeduCAM25_CUOAGX on any application platform as per customer requirements.

NeduCAM25_CUOAGX - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
