e-CAM56_CUOAGX - 5MP Sony® Pregius S IMX568 Color Global shutter Camera for NVIDIA® Jetson AGX Orin™

Highlights:

  • Houses e-CAM521_CUMI568C_MOD - 5MP camera based on Sony® Pregius S IMX568 sensor
  • Global Shutter
  • High Sensitivity
  • Multi-ROI capture with high frame rate upto 1164 fps*

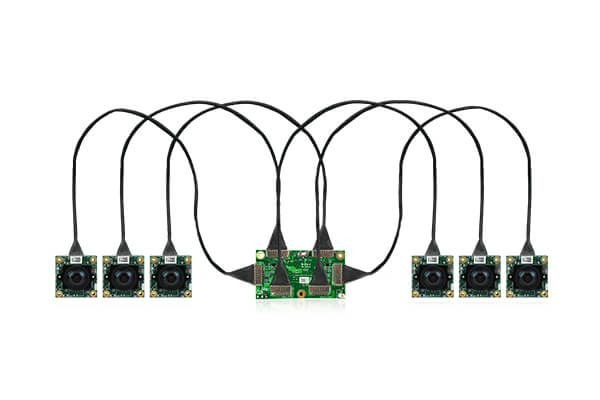

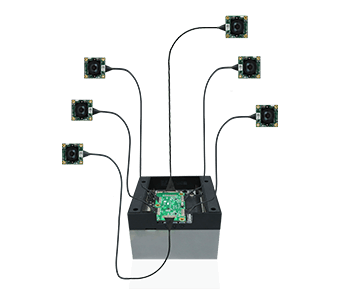

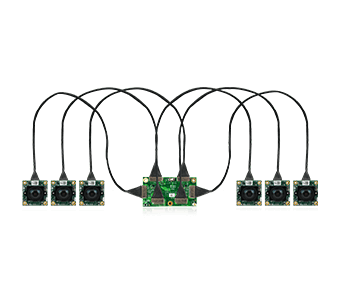

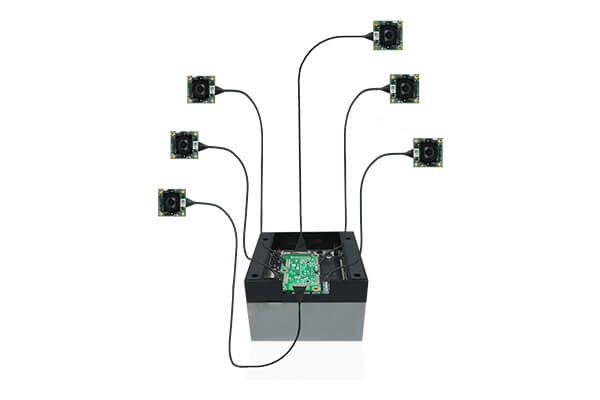

  • Plugs into NVIDIA® Jetson AGX Orin developer kit (upto 4 cameras)
  • External Trigger support for synchronized multi-camera streaming
  • Uses NVIDIA® ISP for image processing

Sample Price

Excluding Shipment Charges

Documents

Volume Pricing

e-CAM56_CUOAGX is a 5 MP MIPI CSI-2 multi-camera - powered by a 1/1.8" Sony Pregius S IMX568 back-side illuminated image sensor. It is designed to seamlessly integrate with the NVIDIA® Jetson AGX Orin™ development kit. This camera excels in delivering best-in-class image output in uncompressed YUV format, featuring a fixed focus capability alongside its high sensitivity.

With its global shutter features, e-CAM56_CUOAGX ensures distortion-free image capture of fast-moving objects. Hence, it is ideal for applications like In-Vitro Diagnostic devices, Smart Traffic (ITS, ANPR), Industrial Automation, Drones and Robotic Arms. It can also connect up to four camera modules and offers a standard M12 lens holder with customized optics or lenses.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: 5MP @ 79fps, Full HD @ 142fps, HD @ 202fps
      Refer pdfDatasheet for complete frame rate details.
    • Output Format: RGB RAW 10-bit/12-bit
    • High-speed MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX (CN2) connector
    • Cable Length: 30cm
  • Sensor features:
    • Sensor: IMX568 from Sony® Pregius S
    • Focus Type: Fixed focus
    • Sensor Resolution: 5.1MP
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/1.8"
    • Output Format: RGB RAW 10-bit/12-bit
    • Pixel Size: 2.74 μm x 2.74 μm
    • Sensor Active Area: 2472 (H) x 2064 (V)
    • Array Size: 2472 (H) x 2128 (V)
    • Lens Holder: M12 (S-Mount)
    • FOV: 120°(D), 104.8°(H), 58.7°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: ~1.3W (for one camera module)
    • Size in mm (l x b): 30mm x 30mm
    • Weight: 26 grams (Camera with lens)
  • Standards and Compliance:
    • FCC, RoHS
  • Launched on: launching date
  • * - Doesn't come with default firmware. Please contact camerasolutions@e-consystems.com.
Linux camera driver:

Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM56_CUOAGX on NVIDIA® Jetson AGX Orin developer kit.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson™ AGX Orin - Jetpack 6.0.0 L4T36.3.0
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected sensor modes (eCAM_argus_camera)
  • Camera Controls:
    • Auto exposure (AE) AntiBanding Mode
    • AE Lock
    • Denoise Mode
    • Denoise Strength
    • Edge Enhance Mode
    • Edge Enhance Strength
    • ISP Digital Gain Range
    • Exposure Compensation
    • Exposure Time Range
    • Sensor Gain Range
    • Sensor Frame Rate
    • AWB Mode
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download 5MP Camera Documents

Product Code Description Sample Price
(1 Unit)
Purchase
e-CAM56_CUOAGX_CHLC_1H01R1
Kit Contents
  • e-CAM521_CUMI568C_MOD - 5MP MIPI Camera Module with lens
  • Adaptor board
  • Base board
  • Micro coaxial cable
Single IMX568 camera for NVIDIA Jetson AGX Orin Kit buy now
e-CAM56_CUOAGX_CHLC_4H01R1
Kit Contents
  • Four * e-CAM521_CUMI568C_MOD - 5MP MIPI Camera Module with lens
  • Four * Adaptor board
  • One * Base board
  • Four * Micro coaxial cable
Four IMX568 cameras for NVIDIA Jetson AGX Orin Kit buy now

e-CAM56_CUOAGX_CHLC_1H01R1-Single IMX568 camera for NVIDIA Jetson AGX Orin Kit

Sample Price (1 Unit)-

buy now

e-CAM56_CUOAGX_CHLC_4H01R1-Four IMX568 cameras for NVIDIA Jetson AGX Orin Kit

Sample Price (1 Unit)-

buy now



Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/S mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX Orin/Xavier, Orin NX/Nano, and any other processor
  • Tailor-made cameras based on any SONY® Pregius sensor, offering options with high resolution up to 20MP.
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
