e-CAM200_CUOAGX - 20MP(5K) AR2020 High Resolution Multi-camera Solution for NVIDIA® Jetson AGX Orin™

Highlights:

  • Houses e-CAM200_CUMI2020C_MOD - 20MP Camera Module based on onsemi® AR2020 sensor
  • Multi-camera solution (20MP @ 30fps with 2 cameras and 20MP @ 15fps with 4 cameras)
  • Plugs into NVIDIA® Jetson AGX Orin™ developer kit (upto 4 cameras)
  • Uses e-con fine-tuned NVIDIA Jetson ISP for image processing
  • Lowlight and NIR Excellence
  • GRR - Reduces the rolling shutter artifacts #

Sample Price

Documents

Excluding Shipment Charges

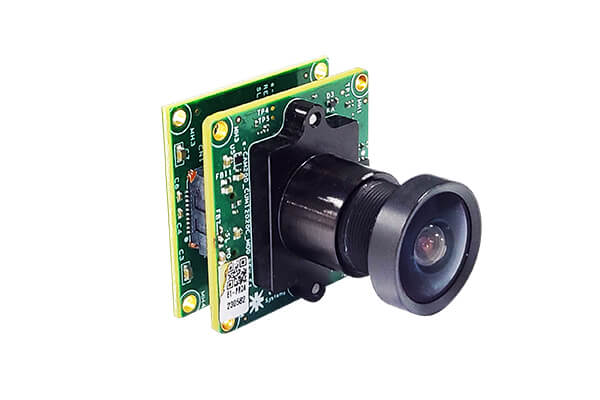

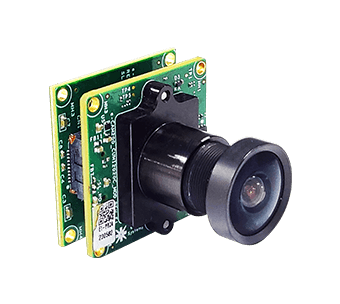

e-CAM200_CUOAGX is a 20 MP super resolution MIPI CSI-2 camera powered by a 1/1.8" AR2020 CMOS image sensor from onsemi's Hyperlux LP product family. This 5K camera is designed to seamlessly interface with NVIDIA® Jetson AGX Orin™ development kit. e-con Systems has fine-tuned NVIDIA Jetson AGX Orin's ISP to achieve enhanced image quality that enables to see even the tiniest detail from long distance. This is a rolling shutter camera with a optional global reset release (GRR) mode to reduce the rolling shutter artifacts

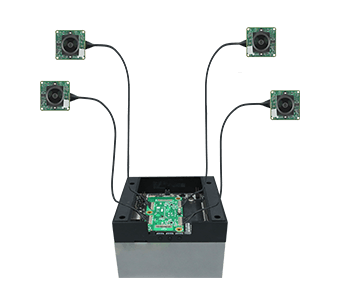

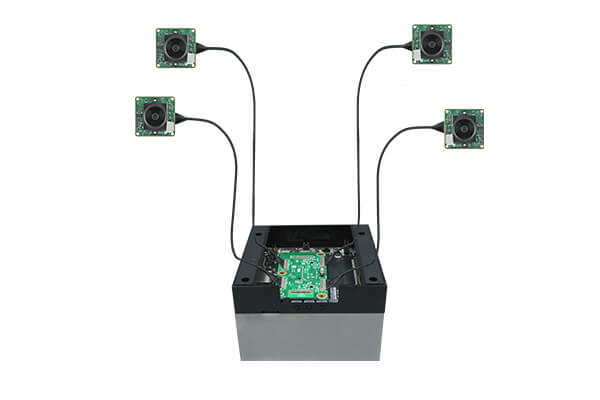

e-CAM200_CUOAGX delivers outstanding image quality with its fixed focus capability and high-resolution performance. This board uses four 4-lane MIPI CSI interface of Jetson AGX Orin™ development kit for connecting four 20 MP camera modules. With its high frame rate of 20MP @ 30fps, enhanced NIR performance and other versatile features, the camera is well-suited for various applications such as Drones, Autonomous Sports Broadcasting & Analytics, Fundus Imaging, Digital Microscope - WSI, In-vitro Diagnostics, OCR, Inventory Scanning, Digital Twin and so on.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: 20MP @ 30 fps
      Refer pdfDatasheet for complete frame rate details.
    • Uncompressed NV12 streaming
    • High-speed MIPI CSI-2 interface to connect with the CPU
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX connector
    • Cable Length: 30cm (1m**)
  • Module features:
    • Sensor: AR2020 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 20MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter with global reset mode #
    • Optical Format: 1/1.8"
    • Output Format: RAW Bayer
    • Pixel Size: 1.4μm x 1.4μm
    • Sensor Active Area: 5120 (H) x 3840 (V)
    • Holder: M12 (S-Mount)
    • FOV: 118.81°(D), 90.28°(H), 65.98°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3 V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Power requirements: 0.613 W
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
  • ** - 1-meter cable will be available on special request.
  • # - Rolling shutter is supported in the default firmware. Customized firmware/hardware is required to use a rolling shutter with Global reset mode.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD USB Camera Documents

Linux camera driver:

Full-fledged Linux camera driver for e-CAM200_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX ORIN™ - Jetpack 5.1.2 L4T35.4.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Product Code Description Sample Price
(1 Unit)
Purchase
e-CAM200_CUOAGX_CHLC_1H01R1
Kit Contents
  • e-CAM200_CUMI2020C_MOD - 20MP MIPI Camera Module with lens
  • Adaptor board
  • Base board
  • Micro coaxial cable
Single AR2020 camera for NVIDIA Jetson AGX Orin Kit buy now
e-CAM200_CUOAGX_CHLC_4H01R1
Kit Contents
  • 4 * e-CAM200_CUMI2020C_MOD - 20MP MIPI Camera Module with lens
  • 4 * Adaptor board
  • 1 * Base board
  • 4 * Micro coaxial cable
Four AR2020 cameras for NVIDIA Jetson AGX Orin Kit buy now

e-CAM200_CUOAGX_CHLC_1H01R1-Single AR2020 camera for NVIDIA Jetson AGX Orin Kit

Sample Price (1 Unit)-

buy now

e-CAM200_CUOAGX_CHLC_4H01R1-Four AR2020 cameras for NVIDIA Jetson AGX Orin Kit

Sample Price (1 Unit)-

buy now



e-CAM200_CUOAGX - Customization for other Application Processor platforms:

e-con provides customization for e-CAM200_CUOAGX on any application platform as per customer requirements.

e-CAM200_CUOAGX - Customization

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization
  • For C/CS mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
