Nedu4CAM57 - 5MP RGB-IR Global Shutter FPD-Link IV Camera Module

Highlights:

  • 5MP OMNIVISION® OX05B1S RGB-IR camera module
  • Global shutter for distortion-free imaging of moving subjects
  • Streams RGB and IR frames simultaneously (Alternate Frames)
  • Integrated 940nm IR-LED for night vision (50cm to 2m range)
  • On-board Automotive grade ISP
  • IP67-certified rugged aluminum enclosure for water and dust protection
  • FPD-Link IV interface for power and data transmission up to 10m
  • Automotive-grade FAKRA connector for secure, reliable connectivity
  • Interfacable with TI J784S4XEVM + J7EXPA01EVM

Sample Price

ContactUs

Technical documents

Technical documents

Download Document

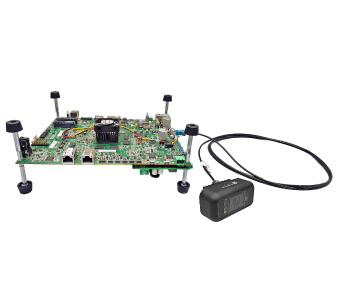

Evaluate Nedu4CAM57 with,

Texas Instruments® J784S4XEVM + J7EXPA01EVM

Texas Instruments®
J784S4XEVM + J7EXPA01EVM

Software supports: Linux Edge-AI-SDK and Linux+RTOS SDK

The Nedu4CAM57_CHLC_IP67 is a 5MP RGB-IR global shutter camera module for high-performance sensing in diverse lighting. Featuring the 1/2.53" OMNIVISION® automotive-grade OX05B1S sensor, it utilizes an RGB-IR CFA pattern to provide superior image quality and 71dB High Dynamic Range (HDR).

Designed primarily for Driver Monitoring Systems (DMS), this module integrates an automotive ISP and FPD-Link IV serializer for robust bidirectional communication. With combined RGB-IR imaging, on-camera processing, and low-light capability, it enables reliable monitoring for diverse applications.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame rate: RGB + IR : 2592x1944@50fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: UYVY
    • Features 940nm IR-LED with working range of 50cm to 2m
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: FPD-Link IV
    • Connector: FAKRA connector
    • Cable Length: upto 10m
  • Module features:
    • Sensor: 5MP Sensor
    • Focus Type: Fixed focus
    • Focus Distance : 50cm to 200cm (For DMS and OMS Use case)
    • Sensor Resolution: 5MP
    • Chroma: Color, NIR
    • Shutter Type: Global shutter
    • Optical Format: 1/2.53"
    • Output Format: MIPI
    • Pixel Size: 2.2μm x 2.2μm
    • Sensor Active Area: 2592(H) ×1944 (V)
    • Dynamic Range: 71 dB
    • FOV: 114.76°H x 85.92°V x 148.32°D
  • Electrical & Mechanical:
    • Operating Voltage: 12V +/- 5%
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: 3.48W
    • Size in mm (l x b): 70 x 35 x 30 mm (with enclosure)
    • Board weight : 100 Grams
  • Miscellaneous:
    • Compliance: RoHS
  • Standards and Compliance:
Emission standards:
S.No Certification Test Specifications
1 FCC Part 15, Subpart B, Class B

Regulates EMI from electronic devices to prevent interference with other equipment.
2 CE & ROHS

CE ensures EMC compliance; RoHS restricts hazardous substances in electronic products.
Application-Specific EMC and Environmental Standards Radiated Emission Standards:
S.No Standard Description
1

CISPR 32

Sets EMI limits for multimedia devices to avoid disturbing nearby electronics.
2 CISPR 25

Limits RF emissions in vehicles to protect onboard communication and entertainment.
3 ISO 14982

Ensures EMI-safe operation of agricultural/forestry machines.
4 ISO 13766-1

EMI testing for construction equipment with onboard electronics.
Radiation Immunity Standards:
S.No Standard Description
1 EN 61000-4-3

Tests how well a device works when exposed to outside electromagnetic signals.
2 ISO 11452-2

Checks if car parts can handle signal noise in a test room.
3 ISO 11452-4

Sends noise into cables to test if car electronics can still work properly.
4 ISO 13766-1

Tests if construction machines keep working when exposed to strong signals.
5 ISO 14982

Makes sure farm machines work well even when there's a lot of electronic noise.
Environmental Standards:
S.No Standard Description
1 ISO 16750-3

Tests if car electronics can survive shocks, drops, and vibration.
2 ISO 16750-4

Checks if electronics can handle heat, cold, and humidity in real-world conditions.
 Bullat Arrow  Download Nedu4CAM57 Documents
 Bullat Arrow  User Manual

Documents 2MP OV2312 Global Shutter RGB-IR Camera

Product Code Supported Platforms Sample Price
(1 Unit)
Nedu4CAM57
 Texas Instruments® J784S4XEVM + J7EXPA01EVM
ContactUs

Nedu4CAM57-Texas Instruments® J784S4XEVM + J7EXPA01EVM

ContactUs



Nedu4CAM57 - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP69K) enclosure and IP rated (IP69K) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
