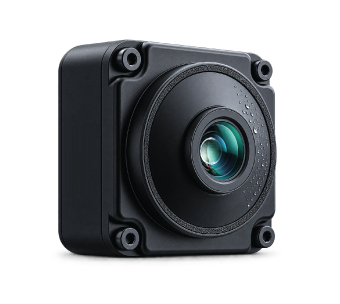

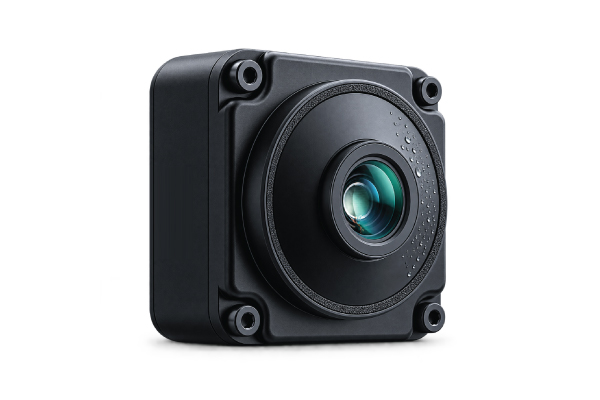

The STURDeCAM31FSHFSH is a 3 MP Sony ISX031 camera, designed to deliver reliable vision in challenging sub-zero and rapidly changing weather conditions. Its actively heated lens de-ices down to -40°C and helps prevent condensation during transitions from sub-zero to ambient temperatures, while 120 dB HDR with LFM preserves detail in high-contrast scenes.
The camera delivers GMSL2 over coax in a compact 35 x 35 x 36.8 mm IP69K-rated enclosure. With ISO 26262 functional-safety compliance, it is designed for space-constrained automotive and mobility systems requiring robust, high dynamic range vision in harsh environments.
- Key features:
-
- Frame Rate - Streams 1920x1536 @30 fps
- Output format: UYVY
- S-mount IP69K compliant lens focused and glued at factory
- Lightweight, versatile, and portable design
- Small form factor
- Interface:
-
- Interface: GMSL2™
- Connector: FAKRA connector
- Cable Length: 3m by default, Please contact camerasolutions@e-consystems.com for 15m cable
- Sensor features:
-
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance : 0.5 m to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: UYVY
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Functional Safety: ISO 26262 compliant
- FOV: 196° (H), 155° (V), 210° (D) (Default lens provided by e-con)
- Lens:
-
- Heating: Integrated heated optic for de-icing & anti-fogging
- The lens heater draws 2-4 W, and only while it is enabled.
- Heater state and lens temperature values are read and set by the SoC's MCU and the host
- Electrical & Mechanical:
-
- Operating Voltage: 12V+/- 250mV
- Operating Temperature Range: -40°C to 85°C
- Typical power consumption: 4.5 W (heater enabled)
- Size in mm (W x H x D): 35 x 35 x 36.8 mm
- Board weight : TBD
- Standards and Compliance:
-
- FCC Class-B, RoHS
- IP69K Certified (Dust tight with protection against close-range high pressure, high temperature spray downs)
| Part No | Kit Contents |
Sample Price (1 Unit) |
Purchase |
|---|---|---|---|
| STURDeCAM31FSH_CUOAGX |
|
- |
|
STURDeCAM31FSH_CUOAGX-with 3m cable with deserializer board
Sample Price (1 Unit)-
STURDeCAM31FSH - Customization and Porting Services for other Application Processor platforms:
e-con Systems® provides camera driver development, customization and porting services for STURDeCAM31FSH on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform
STURDeCAM31FSH - Customization
e-con provides customization, development and porting services for the following requirements:
- Change of lens to meet your FOV and other requirements
- Support to other NVIDIA Jetson platforms from other vendors
- To support other processor platforms and other interfaces like FPD-Link III
- ISP tuning
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
