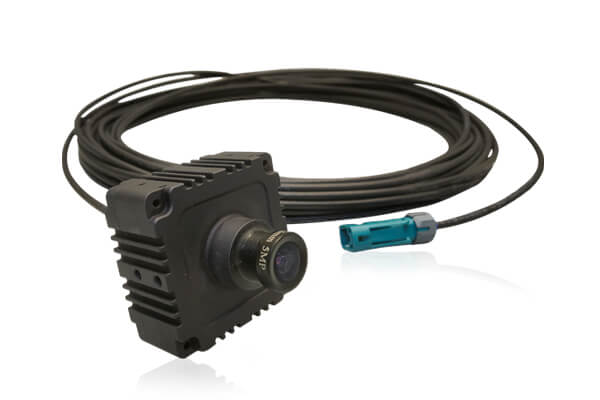

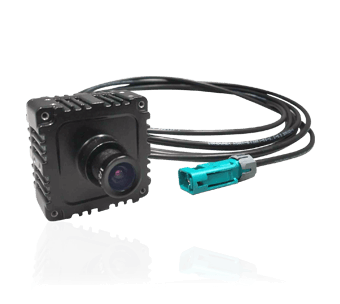

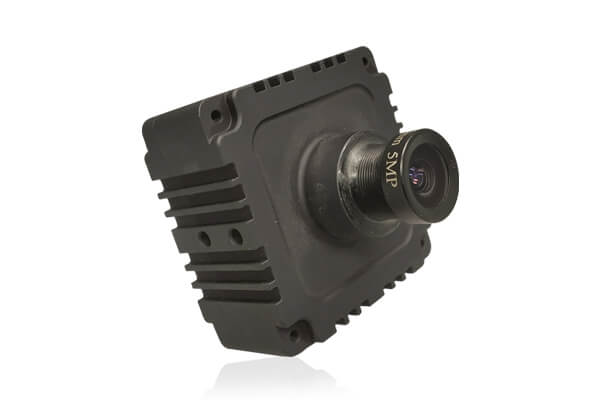

STURDeCAM25 - IP67 Full HD GMSL2 Global Shutter Camera Module

Highlights:

  • Houses AR0234CS Full HD Camera Module with S-mount lens holder
  • Global Shutter
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cables to transmit power and data up to 15m
  • External Trigger support for synchronized multi-camera streaming
  • On-board high performance ISP
  • Dust and waterproof IP67-rated enclosure

Sample Price

Documents

Evaluate STURDeCAM25 with,

STURDeCAM25 is a full HD GMSL2 color global shutter camera module with an IP67 enclosure with antifog capability that ensures dust and waterproofing. The global shutter efficiency of this camera module helps to capture sharp images of moving objects without any shutter artifacts. The IP67 enclosure of this camera module makes it suitable for use in harsh industrial conditions by protecting it from water, dust, temperature variations, and shocks and vibrations.

It comes with an onboard ISP which is tuned to achieve the best quality image output from the sensor.Its large pixel size of 3.0μm and high Signal to Noise Ratio help in producing exceptionally clear and sharp images with less noise even in challenging lighting conditions. STURDeCAM25 uses the GMSL2 interface to reliably transmit uncompressed video data at 120 fps up to a distance of 15 meters with very low latency.

Designed and developed to work seamlessly with the NVIDIA edge AI platforms, this synchronized multi-camera solution comes with the ability to integrate six STURDeCAM25 cameras into a single Jetson system.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate - Streams HD@120fps, FullHD@65fps.
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • S-mount IP67 compliant lens focused and glued at our factory
    • Multiple mounting options including magnetic mount support
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR0234CS from onsemi®
    • Focus Type: Fixed focus
    • Focus Distance : 1m to Infinity
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 1920H x 1200V
    • Array Size: 1920H x 1200V
    • Responsivity: 56 Ke-/luxsec
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Holder: M12 (S-Mount)
    • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: 1.5 W
    • Size in mm (l x b) :
      • 66.5 x 61.22 x 88.35 mm with hood and mounting accessory
      • 60 x 54.2 x 60 Without hood and mounting accessory
  • Miscellaneous:
    • Compliance: FCC Class A and RoHS
    • IP67 Certified
  • Launched on: launching date
 Bullat Arrow  Datasheet

Download Full HD USB Camera Documents

Part No Supported Platforms Sample Price
(1 Unit)
Purchase
STURDeCAM25_CUXVR
Kit Contents
  • STURDeCAM25 - IP67 Full HD GMSL2 Global Shutter Camera
  • Deserializer board with 6 camera connectors
  • 15 meters coaxial cable
NVIDIA® Jetson AGX Xavier™ Dev Kit
-
ContactUs
STURDeCAM25
Kit Contents
  • STURDeCAM25 - IP67 Full HD GMSL2 Global Shutter Camera
  • Deserializer board with 6 camera connectors
  • 15 meters coaxial cable
Syslogic's AI Edge Box
-
ContactUs

STURDeCAM25_CUXVR-NVIDIA® Jetson AGX Xavier™ Dev Kit

Sample Price (1 Unit)

ContactUs

STURDeCAM25-Syslogic's AI Edge Box

Sample Price (1 Unit)

ContactUs



STURDeCAM25 - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM25 on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD global shutter camera with your application processor platform, please contact

STURDeCAM25 - Customization

e-con provides customization, development and porting services for the following requirements:

  • Change of lens to meet your FOV and other requirements
  • Support to other NVIDIA Jetson platforms from other vendors
  • To support other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
