e-CAM21_CUTX2 - 2MP Sony Ultra-low light Jetson TX2/TX1 Camera

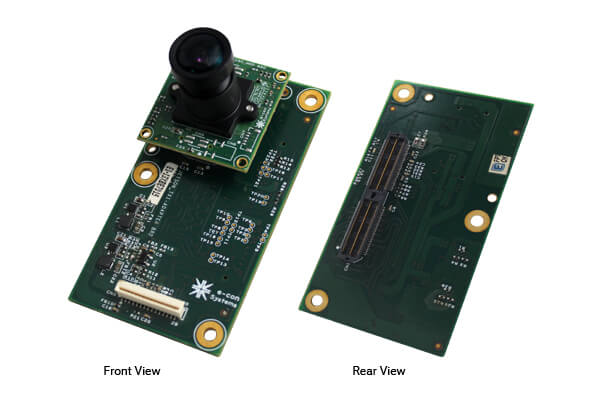

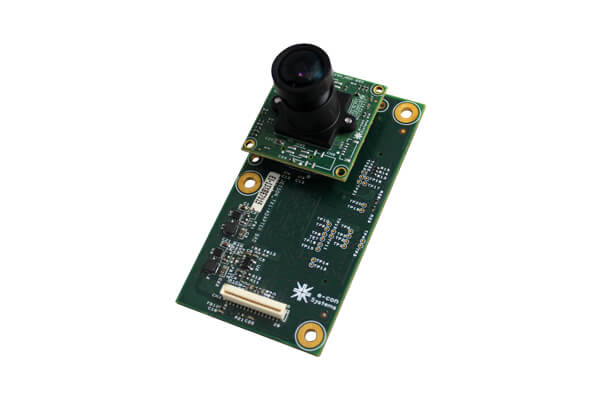

e-CAM21_CUTX2 is a 2MP Ultra-Lowlight 4-lane MIPI CSI-2 camera board for NVIDIA® Jetson TX2/TX1 developer kit. This camera is based on 1/2.8" SONY IMX290 CMOS Sensor, one of the most popular Sony's STARVIS® sensor. Its effective pixel back-illuminated technology with improved sensitivity in the visible-light and near infrared light enables customers to capture images even in absolute darkness. This Starlight Camera uses NVIDIA® on-board Jetson TX2/TX1 Image Signal Processor (ISP) to perform all the Auto functions (Auto White Balance, Auto Exposure control) and significantly, improved image quality. It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement.

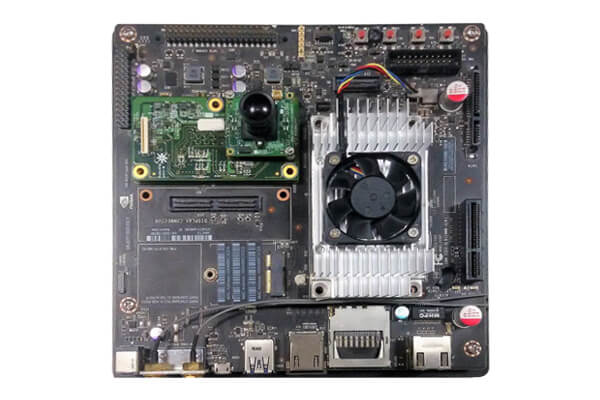

This camera can be directly interfaced to camera connector(J22) on the NVIDIA® Jetson TX2/TX1 developer Kit. e-CAM21_CUTX2 is exposed as a standard V4L2 device and customers can use NVIDIA® 'libargus' APIs to access this camera and control the same.

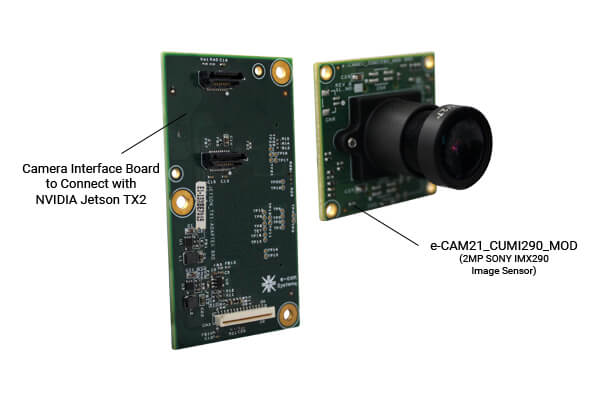

  • Houses e-CAM21_CUMI290_MOD - 2.0 MP Camera Module with S-mount lens holder
  • Very light-sensitive BSI sensor (Ultra Low-light performance)
  • High-speed 4-lane MIPI CSI-2 interface to connect with the CPU
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing
  • Plugs in to NVIDIA® Jetson TX2/TX1 Developer Kit
  • Maximum Image Transfer Rate
  • Resolutions 12 bit RGB 10 bit RGB
    HD (1280X720) 60 fps 120 fps
    Full HD (1920x1080) 60 fps 120 fps
  • Note: The above listed formats are output from the sensor. TX2/TX1 ISP converts this into YUV420 output.
  • Operating Voltage : 5V +/- 5%, Current : 110mA (Max)
  • Temperature Range
    • Operating Temperature Range: -30°C to 85°C
    • Performance Temperature Range: -10°C to 60°C
  • Power Consumption:
    • Max : 0.53W
    • Min : 0.45W
  • Linux camera driver (V4L2) for 2 MP MIPI CSI-2 camera module
  • Conversion gain switching modes (LCG and HCG – Low/High Conversation Gain)
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Board size( L x W x H): 75.03mm x 40.18mm x 25.6mm(without Lens)
  • Board Weight - 28 Grams (with lens)
  • RoHS compliant
  • Lightweight, versatile, and portable two-board solution
  • Launched on: 24th Jan 2018

Sensor:1/2.8" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:2.0 MP

Pixel size:2.9 µm x 2.9 µm

Sensor Active Area:1945H x 1097V

G sensitivity:1.3 V @ 12-bit HCG mode, 0.65 V @ 12-bit LCG mode

Output Format:RAW 10/12 bit

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:External ISP

DFOV :132°(with the lens provided by e-con)

Download e-CAM21_CUTX2 - Technical Documents:

   Datasheet

pdf e-CAM21_CUTX2 Datasheet

pdf e-CAM21_CUTX2 Lens Datasheet

   User Manual

pdf e-CAM21_CUTX2 Getting Started Manual

pdf e-CAM21_CUTX2 Developer Guide

pdf e-CAM21_CUTX2 Gstreamer Usage Guide

pdf e-CAM21_CUTX2 Linux App User Manual

pdf e-CAM21_CUTX2 Release Package Manifest

pdf ecam_tx2_ArgusCameraApp Build and Installation Guide

Download Selected Documents

Kit Contents:

  • Hardware:
  • Software:
    • V4L2 - Linux driver
    • Sample View finder Application with Source Code
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
US$179
Buy Camera online

Excluding Shipment Charges

»  Security & Surveillance

»  Autonomous Robotic Systems

»  Automated Optical Inspection

»  Drones

»  Scientific Camera

»  Solar Panel Inspection

»  Unmanned Vehicles

»  NIR imaging applications

»  Day-Night camera applications
