See3CAM_CU55 - 1/2.5" 5.0 MP Low Noise USB Camera (Color)

Highlights

  • Houses e-CAM55_CUMI0521_MOD - 5MP onsemi® AR0521 Image Sensor
  • Fixed Focus
  • Rolling shutter with global reset mode #
  • On-board high performance ISP

Sample Price

USD 209 129

Excluding Shipment Charges

Documents

Evaluation offer closes on 28th Feb, 2023

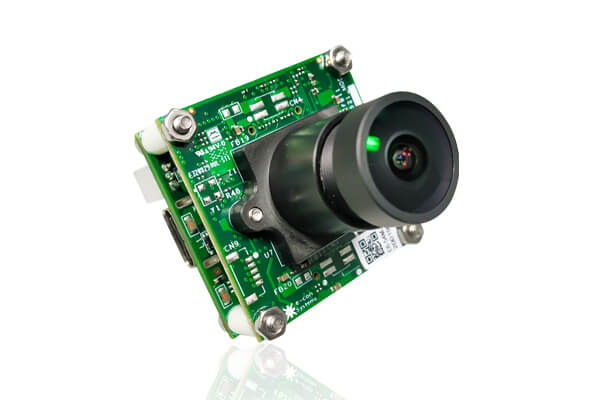

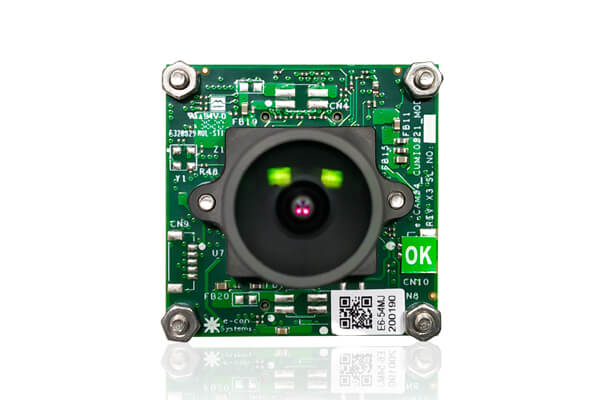

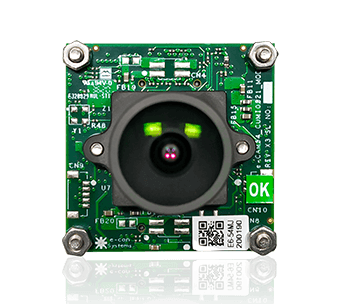

See3CAM_CU55 is a 5MP USB 3.1 Gen 1 UVC Color Camera with S-mount (also known as M12 board lens) lens holder. It is a two-board solution containing camera sensor board based on 1/2.5" AR0521 image sensor from onsemi® and USB 3.1 Gen 1 Interface board. The powerful on-board Image Signal Processor (ISP) brings out the best image quality of this 2.2 micron pixel 5MP AR0521 CMOS image sensor making it ideal for next generation of high resolution surveillance, biomedical instruments and biometric authentication applications.

The See3CAM_CU55 is a UVC-compliant USB 3.1 Gen 1 SuperSpeed Camera that is also backward compatible with USB 2.0 host ports and does not require any special camera drivers to be installed on the host PC. When connected to USB 2.0 host ports, the See3CAM_CU55 camera supports all the resolutions and at lower frame rates.

Refer pdfDatasheet -for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Streams Full HD at 60 fps & 5MP at 60 fps
      Refer pdfDatasheet -for complete frame rate details.
    • Output format: Uncompressed UYVY and Compressed MJPEG
    • Supported OS - Windows 10/8.1, Linux, Android * and MAC **
    • 10 pin GPIO Header (only for without Enclosure)
    • External Hardware Trigger Input (only for without Enclosure)
    • Lightweight, versatile, and portable two-board solution
    • Unique ID for each camera
  • Interface:
    • Interface: USB 3.1 Gen 1 device
    • Connector: Type-C reversible interface connector
    • UVC complaint - no additional drivers required
    • Backward compatible with USB 2.0 hosts
  • Module features:
    • Sensor: AR0521 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 5MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter with global reset mode #
    • Optical Format: 1/2.5"
    • Output Format: Uncompressed UYVY and Compressed MJPEG
    • Pixel Size: 2.2μm x 2.2μm
    • Sensor Active Area: 2592x1944 pixels
    • Array Size: 2592H x 1944V
    • Responsivity: 18.8 ke-/luxsec
    • SNR: 40 dB
    • Dynamic Range: 74.3 dB
    • Holder: M12 (S-Mount)
    • FOV: 140.5°(D), 110°(H), 82°(V) (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating Voltage: 5 V +/- 5%
    • Operating Temperature Range:
      • Without Enclosure: -30°C to 70°C
    • Power Requirements:
      • Max: 2.18W
      • Min: 0.95W
    • Size in mm (l x b x h):
      • Without Enclosure :
        • Without Lens: 30 x 30 x 30.2 mm
      • With Enclosure:
        • Without Lens: 35.3 x 35.3 x 29 mm
    • Board Weight:
      • Without Enclosure:
        • Without Lens: 13 Grams
        • With Lens: 19 Grams
      • With Enclosure:
        • Without Lens: 56 Grams
        • With Lens: 62 Grams
  • Miscellaneous:
    • Compliance: FCC, RoHS
  • Launched on: launching date
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact  camerasolutions@e-consystems.com
  • # - Rolling shutter is supported in the default firmware. Customized firmware/hardware is required to use a rolling shutter with Global reset mode.
  • Note: Liquid lens option is available for this product and can be provided on request.
  • Supported OS - Windows 10/8.1, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView – Windows Camera application for Video Preview and Still Capture.
    • QtCAM – Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • 5MP (both JPEG and BMP)
  • Still Capture:
    • External trigger signal control ***
    • Software application control
    • Software trigger
  • UVC Controls:
    • Digital Zoom(Upto 8x)
    • Pan
    • Tilt
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gamma control
    • Gain
    • White Balance (Manual and Auto)
  • ROI mode
    • Auto Exposure
      • Full ROI
      • Manual ROI
  • Effects
    • Normal
    • Black & White
    • Gray scale
    • Negative
    • Sketch
  • Additional Capabilities:
    • Support for external trigger ***
    • Face Detection
    • Smile Detection
    • De-Noise
    • Q-Factor
    • Flash
    • Flip
    • Burst Image Capture
    • Programmable Frame Rate
    • JPEG Compression Q-Factor control
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact camerasolutions@e-consystems.com
  • *** - Not applicable for camera with enclosure
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manuals
 Bullat Arrow  Mounting Document
 Bullat Arrow  Windows
 Bullat Arrow  Linux
 Bullat Arrow  Compliance

Download 5 MP USB Camera Documents

Customers who own platforms that support USB 3.1 Gen 1 and are interested in evaluating the 5MP USB camera module can directly buy the See3CAM_CU55 from e-con Systems™. Customers can order See3CAM_CU55 with/without lens.

Part No Description Sample Price
(1 Unit)
Purchase
See3CAM_CU55_CH_TC
(5s Pack)
5.0 MP Fixed Focus USB 3.1 Gen 1 Color Camera with Type-C connector and Without Lens USD 209 129
(5s Pack)
buy e-con camera
See3CAM_CU55_CHL_TC 5.0 MP Fixed Focus USB 3.1 Gen 1 Color Camera with Type-C connector and With Lens USD 229 149 buy e-con camera
See3CAM_CU55_CHL_TC
(5s Pack)
5.0 MP Fixed Focus USB 3.1 Gen 1 Color Camera with Type-C connector and With Lens USD 219 139
(5s Pack)
buy e-con camera
See3CAM_CU55_CHL_TC_BX 5.0 MP Fixed Focus USB 3.1 Gen 1 Color Camera With Enclosure, with Type-C connector and with Lens USD 289 209 buy e-con camera

See3CAM_CU55_CH_TC-5.0 MP Fixed Focus USB 3.1 Gen 1 Color Camera with Type-C connector and Without Lens

Sample Price -USD 209 129
(5s Pack)

buy e-con camera

See3CAM_CU55_CHL_TC-5.0 MP Fixed Focus USB 3.1 Gen 1 Color Camera with Type-C connector and With Lens

Sample Price (1 unit)-USD 229 149

buy e-con camera

See3CAM_CU55_CHL_TC-5.0 MP Fixed Focus USB 3.1 Gen 1 Color Camera with Type-C connector and With Lens

Sample Price -USD 219 139
(5s Pack)

buy e-con camera

See3CAM_CU55_CHL_TC_BX-5.0 MP Fixed Focus USB 3.1 Gen 1 Color Camera With Enclosure, with Type-C connector and with Lens

Sample Price (1 unit)-USD 289 209

buy e-con camera

In addition to See3CAM_CU55 , the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10/8.1, Linux, Android * and MAC **). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:
  • Hardware:
    • See3CAM_CU55 - 5MP USB Camera with M12 Lens (S-Mount) Holder
    • USB 3.1 Gen 1 Type-C Cable
    • Lens (Optional)
  • Software: (Customers will have to download the software from e-con Developer Resource).
    • Supported OS: Windows 10/8.1, Linux, Android * und MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact camerasolutions@e-consystems.com
See3CAM_CU55 - customization
  • Do you need a Support for external mechanical shutter?
  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor or single board solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
