AR2020 20MP (5K) High Resolution USB 3.2 Gen 1 Camera

Overview

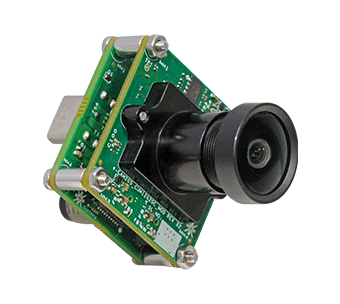

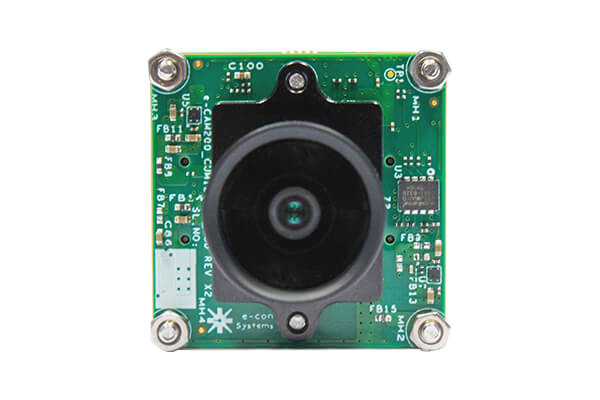

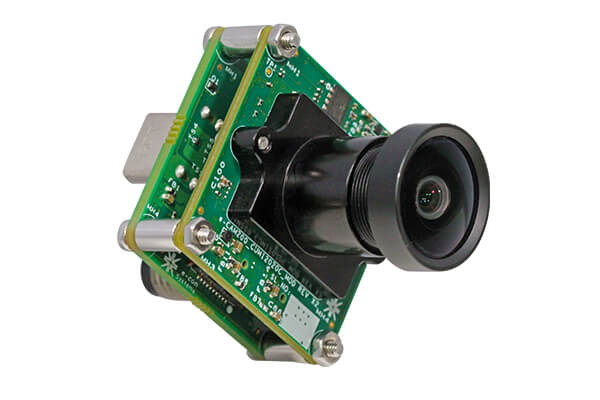

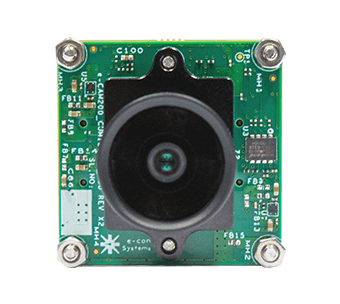

See3CAM_CU200 is a 20 MP (5K) camera based on a 1/1.8" AR2020 CMOS image sensor with advanced 1.4μm pixel BSI technology from onsemi's Hyperlux LP product family with the high performance in-built ISP. AR2020 USB 3.2 Gen 1 superspeed camera features with reversible plug-and-play Type-C interface.

This UVC-compliant See3CAM_CU200 camera supports 5120 x 3840 @8fps and 1920 x 1080 @90fps. Video streaming through UVC is possible without any special drivers. It has an S-mount (M12) lens holder, allowing customers to choose and use the lens according to their requirements.

Refer Datasheet for complete frame rate details.

Specification

Key features:
- Frame Rate:
  - 5120 x 3840 @8fps, 1920 x 1080 @90fps
  Refer Datasheet for complete frame rate details.
- Output format: Uncompressed UYVY
- Supported OS - Windows 10/11, Linux (Ubuntu 16.04/18.04/20.04)
- Unique ID for each camera
- Lightweight, versatile, and portable two-board solution
Interface:
- Interface: USB 3.1 Gen 1 device
- Connector: Type-C reversible interface connector
- UVC Compliant - no additional drivers required
- Backward compatible with USB 2.0 hosts
Module Features:
- Sensor: AR2020 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 20MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter with global reset mode ^#
- Optical Format: 1/1.8"
- Output Format: RAW Bayer
- Pixel Size: 1.4 μm x 1.4 μm
- Sensor Active Area: 5120 (H) x 3840 (V)
- Holder: M12 (S-Mount)
- FOV: 118.81°(D), 90.28°(H), 65.98°(V) (with the lens provided by e-con)
Electrical and Mechanical:
- Operating Voltage: 5V +/- 5%
- Operating Temperature Range: TBD
- Power Requirements: TBD
- Size in mm (l x b): 30 x 30 mm
Miscellaneous
- Compliance: RoHS
# - Rolling shutter is supported in the default firmware. Customized firmware/hardware is required to use a rolling shutter with Global reset mode.

Software

Supported OS : Windows 10/11, Linux (Ubuntu 16.04/18.04/20.04)
Sample Application:
- e-CAMView - Windows Camera application for Video recording, Video Preview and Still Capture.
- QtCAM - Linux Camera application for Video recording, Video Preview and Still Capture.
UVC Controls :
- Exposure, Gain, Roll
- Brightness, Contrast
- Sharpness
- Saturation, Gamma
- Manual White Balance
HID Controls:
- Trigger & Strobe, Orientation
- Flip and Mirror
- Brightness, Contrast, Black level adjustment
- Gamma correction, Saturation
- Exposure, Gain, RG Gain
- Colour correction matrix, Colour Temperature
- Save configuration, Restore default, Read firmware
HID Controls:
- Auto Exposure, Auto Gain
- Wake on Motion / Motion Detection
- Zoom
- eDR
- Smart ROI
Please contact camerasolutions@e-consystems.com for any customization requirements.

Documents

kit-contents

Kit Contents:

Hardware:
- See3CAM_CU200 - See3CAM_CU200 - 20MP USB 3.2 Gen 1 Camera board with S-Mount Lens Holder
- USB 3.1 Gen 1 Type-C Cable
- Lens (Optional)
Software : (Customers will have to download the software from e-con Developer Resource)
- Supported OS: Windows, Linux
- e-CAMView (Windows) / QtCAM (Linux) - Video Preview, Video recording and Still Capture Application

Customization

See3CAM_CU200 - Customization

Do you need a Support for external mechanical shutter?
Do you need a Custom lens mount (C-mount/CS-Mount)?
Do you want a smaller form factor or single board solution?
Do you need LED flash?
Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

See3CAM_CU200 - AR2020 20MP (5K) High Resolution USB 3.2 Gen 1 Camera
