See3CAM_CU22 - HDR USB Camera with LFM

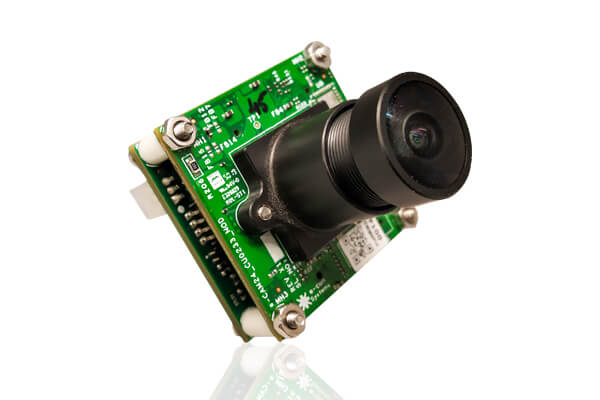

See3CAM_CU22, is a 2MP color USB 3.1 Gen1 SuperSpeed camera featuring High Dynamic Range (HDR) with LED flicker mitigation (LFM). This HDR camera is based on 1/2.5" AR0233AT CMOS image sensor and a dedicated high-performance Image Signal Processor (ISP). It can produce excellent images even under low light conditions. It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement. It is a Plug-and-Play camera (UVC compliant) for Windows and Linux.

Key Features

  • Houses 2.0 MP AR0233AT Color Camera Image Sensor
  • Fixed Focus with M12 lens holder
  • Electronic Rolling Shutter
  • Output format: Uncompressed UYVY format
  • Plug-&-Play (UVC compliant - No drivers required)and Backward compatibility with USB2.0 hosts with limited features and capabilities
  • Frame Rate :
  • UYVY Format
    Resolutions USB 3.1 Gen1 USB 2.0
    Standard HDR Standard HDR
    VGA
    (640 x 480)
    60 fps &
    45* fps
    60 fps 60 fps &
    45* fps
    60 fps
    qHD
    (960 x 540)
    58 fps &
    30* fps
    58 fps 30 fps &
    15* fps
    30 fps
    HD
    (1280 x 720)
    45 fps &
    30 fps
    45 fps &
    30 fps
    16 fps &
    8 fps
    16 fps &
    8 fps
    FHD
    (1920 x 1080)
    30 fps &
    15 fps
    30 fps &
    15 fps
    8 fps &
    4 fps
    8 fps &
    4 fps
  • Supported OS: Windows 10, Windows 8.1, Linux
  • USB 3.1 Gen1 Connector types: USB 3.1 Gen1 Micro-B connector
  • Operating Voltage : 5V +/- 5%, Current - 446 mA
  • Operating Temperature Range : -40°C to 85°C
  • Power requirements
    • Max : 2.250W
    • Min: 1.425W
  • 10 pin and 5 pin GPIO header
  • External Hardware Trigger Input
  • Standard or HDR Mode
  • Size in mm (l x b x h):
    • Without Enclosure - 30 x 30 x 30.2 mm (without lens)

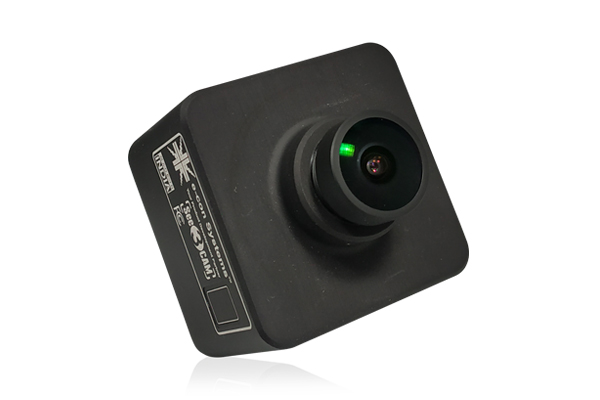

    • With Enclosure - 40.7 x 40.7 x 33.4 mm (without lens)
  • Weight in Grams:
    • Without Enclosure - 14.5 Grams (without lens) and 20 Grams (with lens)
    • WithEnclosure - 65 Grams (with lens)
  • CE, FCC and RoHS compliant
  • Lightweight, versatile, and portable two-board solution
  • Unique ID for each camera
  • Launched on:launching date
  • Note:
  • -  *  At these frame rate, the resolution will stream in binning mode. If these configurations (VGA 45 FPS , qHD 30 FPS in super speed and 15 FPS in high speed) selected for streaming then the sensor will switch to standard mode if HDR mode is selected previously.
  • -  The above table is true only in manual exposure. When the exposure value is changed above -6 (15.6 ms), there will be a drop in the frame rate because the exposure time period is more than the frame time.
  • -  In auto exposure, maximum frame rate could be achieved with maximum lighting.

Camera Module Features:

Sensor:AR0233AT from ON Semiconductor

Sensor Resolution and Optical Format:2.0 MP CMOS Image Sensor. 1/2.5" Optical format

Sensor type:12-Bit RGB Bayer

Image Signal Processor:On-board high performance ISP

Output Format:Uncompressed UYVY format

Sensor Features:

Pixel size:3.0μm x 3.0μm pixel

Sensor Active Area:2048H x 1280V

Responsivity:30.4 Ke-/lux−sec

SNR:43.1 dB

Dynamic Range:Max upto 120 dB

Shutter type:Electronic Rolling Shutter

Focus Type:Fixed focus

Array Size:2048 x 1280 pixels

DFOV: 2.0MP – 130°(with the lens provided by e-con)

  • Supported OS - Windows 10, Windows 8.1, Linux
  • USB 3.1 Gen1 (5Gbps) Connector type: USB 3.1 Gen1 (5Gbps) Micro-B connector
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • 2MP (JPG, BMP, RAW, PNG)
  • Still Capture:
    • External trigger signal control
    • Software application control
    • Software trigger
  • UVC Controls:
    • Brightness
    • Contrast
    • Sharpness
    • Saturation
    • Gain
    • White Balance (Manual and Auto)
    • Exposure (Manual and Auto)
    • Pan & Tilt
  • Additional Capabilities:
    • Color Kill
    • Anti Flicker Mode
      • Auto Mode
      • Manual Mode
    • Orientation
      • Horizontal Mirror
      • Vertical flip
    • Sensor Mode
      • Standard Mode
      • HDR Mode
    • Effects
      • Normal
      • Gray scale
    • Burst Image Capture
    • Support for external trigger
    • Denoising

Download See3CAM_CU22 - Technical Documents:

 Bullat Arrow  Datasheet

 pdf  See3CAM_CU22 - Datasheet

 pdf  See3CAM_CU22 - Lens Datasheet

 Bullat Arrow  User Manual

 pdf  See3CAM_CU22 - Getting Started Manual

 Bullat Arrow  Linux

 pdf QtCAM - Streaming Application User Manual

 pdf QtCAM - Streaming Application Installation
            Manual

 Bullat Arrow  Windows

 pdf  See3CAM_CU22 - Extension Unit SDK
              API User Manual

 pdf  e-CAMView - Streaming Application
              User Manual

 pdf  e-CAMView - Streaming Application
              Installation Manual

 pdf  See3CAM_DFU - Firmware Updater
              Application User Manual

Download 2MP USB Camera Documents

Ordering Info:

Customers who own platforms that support USB 3.1 Gen1 (5Gbps) and are interested in evaluating the 2MP High Dynamic Range USB camera module can directly purchase the See3CAM_CU22 from e-con Systems. Customer can order See3CAM_CU22 with/without lens.

Part No Description Sample Price
(1 Unit)
Volume Price
(1000s Pack)
Purchase
See3CAM_CU22_CHL_BX 2MP Custom Lens USB3.1
Gen1 Camera with M12
Lens (Micro-B connector), with Enclosure
US$349 - Camera Customization
See3CAM_CU22_CH_BX 2MP Custom Lens USB3.1
Gen1 Camera with Enclosure (Without Lens)
- US$229 Camera Customization
See3CAM_CU22_CHL 2MP Custom Lens USB3.1 Gen1(5Gbps) Camera with
S Mount Holder & Lens
Micro-B connector
US$199 - Camera Customization
See3CAM_CU22_CH 2MP USB3.1 Gen1(5Gbps) Camera with S-Mount Holder Micro-B connector - US$129 Camera Customization

See3CAM_CU22_CHL_BX-2MP Custom Lens USB3.1 Gen1 Camera with M12 Lens (Micro-B connector), with Enclosure

Sample Price (1 Unit)-US$349

Volume Price (1000 units)--

Camera Customization

See3CAM_CU22_CH_BX-2MP Custom Lens USB3.1 Gen1 Camera with Enclosure (Without Lens)

Sample Price (1 Unit)--

Volume Price (1000 units)-US$229

Camera Customization

See3CAM_CU22_CHL-2MP Custom Lens USB3.1 Gen1(5Gbps) Camera with S Mount Holder & Lens Micro-B connector

Sample Price (1 Unit)-US$199

Volume Price (1000 units)--

Camera Customization

See3CAM_CU22_CH-2MP USB3.1 Gen1(5Gbps) Camera with S-Mount Holder Micro-B connector

Sample Price (1 Unit)--

Volume Price (1000 units)-US$129

Camera Customization





In addition to See3CAM_CU22, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10, Windows 8.1, Linux). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

  • Hardware:
    • See3CAM_CU22 - 2MP HDR USB Camera with M12 Lens (S-Mount) Holder
    • USB 3.1 Gen1 Micro-B Cable
    • Lens (Optional)
  • Software:
    • Supported OS: Windows 10, Windows 8.1, Linux
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:

See3CAM_CU22 - Customization

  • Do you need a Support for external mechanical shutter?
  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor or single board solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

4K Camera Customization

Volume Price Start From

US$129
Camera Customization

Excluding Shipment Charges

Targeted Applications

»  Automatic Guided Vehicle (AGV)

»  Inside Vehicle Surveillance

»  Outdoor Robotics

»  Autonomous Machines

»  Agriculture

  • Crop Spraying Systems
  • Autonomous Farming Services

»  Smart Cities
