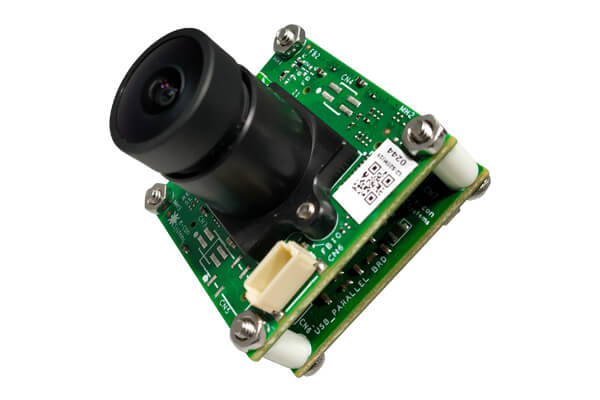

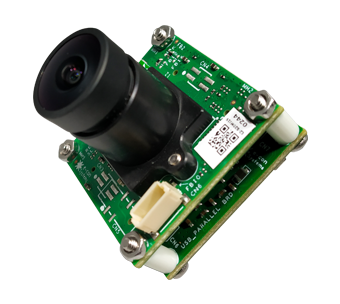

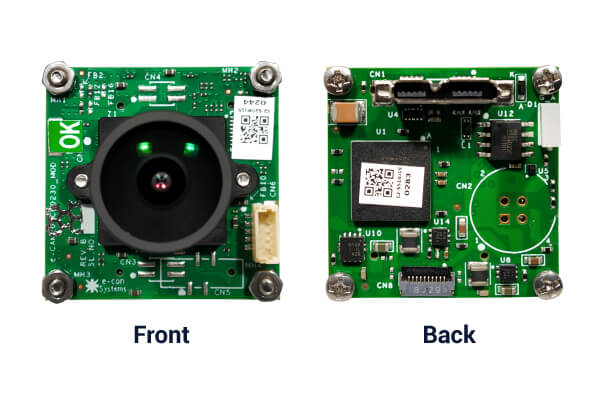

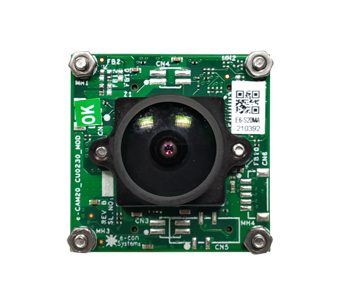

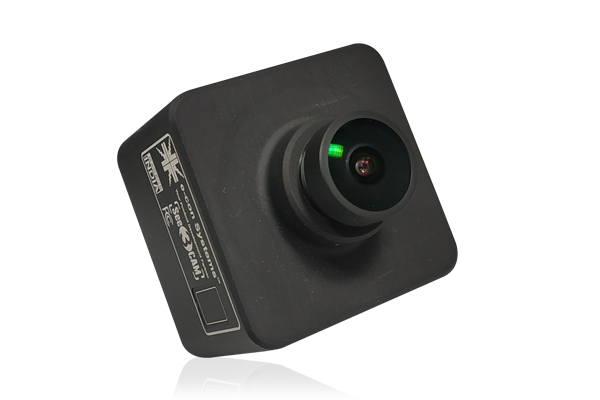

See3CAM_CU20 - Wide temperature range HDR USB3.1 Gen1 Camera Board (Color)

See3CAM_CU20 is a 2.0 MP HDR USB camera board with ultra-Lowlight performance. It has an ability to stream seamlessly at wide temperature range (-40°C to 85°C). This Full HD USB3.1 Gen1(5Gb/Sec.) camera is based on 1/2.7" AR0230AT CMOS digital image sensor with a pixel size of 3.0 μm x 3.0 μm from ON Semiconductor™. It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement. It is a Plug-and-Play camera (UVC compliant) for Windows, Linux. This HDR camera is also backward compatible with USB 2.0 host ports.

See3CAM_CU20 has a dedicated, high-performance Image Signal Processor chip (ISP) on board, that performs all the Auto functions (Auto White Balance, Auto Exposure control). The ISP and sensor settings have been fine tuned to generate best-in-class video in uncompressed UYVY.

Key Features

  • Houses 2.0 MP AR0230AT Color Camera Module
  • Fixed Focus with M12 lens holder
  • Electronic Rolling Shutter
  • Output format: Uncompressed UYVY format
  • Frame Rate :
  • UYVY Format
    Resolutions USB3.1 Gen1(5Gb/Sec.) USB 2.0
    Standard HDR Standard HDR
    VGA (640 x 480) 60 fps & 45* fps 60 fps & 45* fps 60 fps & 45* fps 60 fps & 45* fps
    QHD (960 x 540) 58 fps & 30* fps 55 fps & 30* fps 30* fps & 15* fps 30* fps & 15* fps
    HD (1280 x 720) 45 fps & 30 fps 42 fps & 30 fps 16 fps & 8 fps 16 fps & 8 fps
    960p (1280 x 960) 34 fps & 22.5 fps 32 fps & 22.5 fps 12 fps & 6 fps 12 fps & 6 fps
    FHD (1920 x 1080) 30 fps & 15 fps 28 fps & 15 fps 8 fps & 4 fps 8 fps & 4 fps
  • *    - At these Frame rate the specific resolution will be streaming in binning mode.
  • Supported OS : Windows 10, Windows 8.1, Windows 8, Windows 7, Linux, Android ** and MAC ***
  • Operating Voltage : 5V
  • Operating Temperature Range : -40°C to 85°C
  • Power requirements : Min : 1.59W, Max : 2.07W and Idle :0.53W (please refer datasheet for other resolutions.)
  • 10 pin and 5 pin GPIO header
  • External Hardware Trigger Input
  • Standard or High Dynamic Range (HDR) Mode
  • Sensor Strobe output to connect external flash
  • Size in mm (l x b x h) : 30 x 30 x 30.2 mm (with out lens)
  • Board Weight - 13 Grams (with out lens)
                               18.5 Grams (with lens)
  • RoHS compliant
  • Lightweight, versatile, and portable two-board solution
  • Unique ID for each camera
  • Launched on: 19 Sep 2017
  • ** - Customers interested to work on Android would require e-con SDK (Webeecam)
  • *** - For MAC OS support, please contact sales@e-consystems.com

Camera Module Features:

Sensor:1/2.7" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:2MP

Sensor type:12-Bit RGB Bayer

Pixel size:3.0μm x 3.0μm

Sensor Active Area:1928H x 1088V

Responsivity:4 V/lux-sec

SNR:41 dB

Dynamic Range:Max upto 105 dB

Output Format:Uncompressed UYVY format

Shutter type:Electronic Rolling Shutter

ISP:On-board high performance ISP

Array Size:1928 x 1088 pixels

DFOV:128°(with the default lens provided by e-con)

  • Supported OS - Windows 10, Windows 8.1, Windows 8, Windows 7, Linux, Android * and MAC **
  • USB3.1 Gen1(5Gb/Sec.) Connector type: USB3.1 Gen1(5Gb/Sec.) Micro-B connector
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • 2MP (JPG, BMP, RAW, PNG)
  • Still Capture:
    • External trigger signal control
    • Software application control
    • Software trigger
  • UVC Controls:
    • Brightness
    • Contrast
    • Sharpness
    • Saturation
    • Gain
    • White Balance (Manual and Auto)
    • Exposure (Manual and Auto)
    • Pan & Tilt
  • Additional Capabilities:
    • Exposure Compensation
    • Color Kill
    • Anti Flicker Mode
      • Auto Mode
      • Manual Mode
    • Orientation
      • Horizontal Mirror
      • Vertical flip
    • Sensor Mode
      • Standard Mode
      • HDR Mode
    • Effects
      • Normal
      • Gray scale
    • Burst Image Capture
    • Support for external trigger
    • Denoising
  • * - Customers interested to work on Android would require e-con SDK (Webeecam)
  • ** - For MAC OS support, please contact sales@e-consystems.com

Download See3CAM_CU20 - Technical Documents:

   Datasheet

 pdf  See3CAM_CU20 - Datasheet

 pdf  See3CAM_CU20 - Lens Datasheet

   User Manual

 pdf  See3CAM_CU20 - Getting Started Manual

   Windows

 pdf  See3CAM_CU20 - Extension Unit SDK
              API User Manual

 pdf  e-CAMView - Streaming Application
              User Manual

 pdf  e-CAMView - Streaming Application
              Installation Manual

   Linux

 pdf QtCAM - Streaming Application User Manual

Download 2MP USB Camera Documents

Ordering Info:

Customers who own platforms that support USB3.1 Gen1(5Gb/Sec.) and are interested in evaluating the 2MP High Dynamic Range USB camera module can directly purchase the See3CAM_CU20 from e-con Systems. Customer can order See3CAM_CU20 with/without lens.

Part No Description Sample Price
(1 Unit)
Volume Price
(1000s Pack)
Purchase
See3CAM_CU20 _CH 2MP USB3.1 Gen1(5Gb/Sec.) Camera with S-Mount Holder Micro-B connector US$149 $89 buy HDR camera
See3CAM_CU20 _CHL 2MP Custom Lens USB3.1 Gen1(5Gb/Sec.) Camera with
S Mount Holder & Lens
Micro-B connector
US$179 - buy HDR camera

See3CAM_CU20 _CH-2MP USB3.1 Gen1(5Gb/Sec.) Camera with S-Mount Holder Micro-B connector

Sample Price (1 Unit)-US$149

Volume Price (1000 units)-$89

buy HDR camera

See3CAM_CU20 _CHL-2MP Custom Lens USB3.1 Gen1(5Gb/Sec.) Camera with S Mount Holder & Lens Micro-B connector

Sample Price (1 Unit)-US$179

Volume Price (1000 units)--

buy HDR camera





In addition to See3CAM_CU20, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10, Windows 8.1, Windows 8, Windows 7, Linux, Android * and MAC **). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

2MP HDR USB Camera

  • Hardware:
    • See3CAM_CU20 - 2MP HDR USB Camera with M12 Lens (S-Mount) Holder
    • USB 3.0 Micro-B Cable
    • Lens (Optional)
  • Software:
    • Supported OS: Windows 10, Windows 8.1, Windows 8, Windows 7, Linux, Android * and MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:
  • * - Customers interested to work on Android would require e-con SDK (Webeecam)
  • ** - For MAC OS support, please contact sales@e-consystems.com

See3CAM_CU20 - Customization

  • Do you need a Support for external mechanical shutter?
  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor or single board solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
