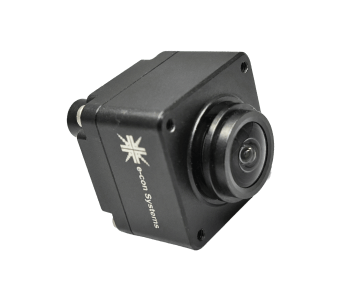

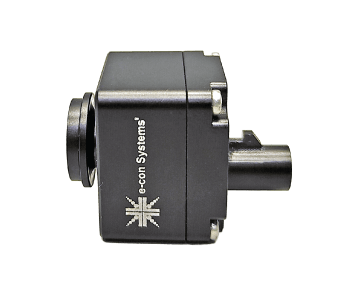

STURDeCAM12 is a 1.3MP automotive-grade camera built for rear-view, 360 degree surround-view, and mobility systems. Powered by the OMNIVISION OX01G10 sensor with PureCel® Plus technology and an on-chip ISP, it delivers clear visuals in bright daylight as well as low-light conditions, with HDR ensuring enhanced detail across challenging environments. Its compact size, IP69K-rated enclosure, and rugged design make it dependable for use in vehicles and robotics.
Featuring GMSL2 connectivity supporting cable lengths up to 15m, multi-camera synchronization, and compatibility with leading platforms such as NVIDIA Jetson AGX Orin, Orin NX, Qualcomm, and Renesas, STURDeCAM12 supports resolutions up to 1340x1020 at 30fps with flexible lens options. Together, these capabilities provide a cost-effective and reliable vision solution tailored for automotive and mobility needs.
- Key features:
-
- Frame Rate: 1.3MP @ 30 fps
- Output format: YUV
- GMSL2 Interface to transmit power and data up to 15m
- IP69K Automotive grade enclosure
- Light weight, versatile and portable design
- Interface:
-
- Interface: GMSL2™
- Connector: FAKRA connector
- Cable Length: 3m by default, Please contact camerasolutions@e-consystems.com for 15m cable
- Sensor features:
-
- Sensor: OMNIVISION’s OX01G10
- Focus Type: Fixed focus
- Sensor Resolution: 1.3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/3.55"
- Output Format: UYVY
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1340(H) ×1020 (V)
- Sensitivity: 32500 e/Lux-sec
- Max S/N Ratio: 42dB
- Dynamic Range: Max upto 120 dB
- Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: 12V+/- 250mV
- Operating Temperature Range: -40°C to 85°C
- Power requirements: TBD
- Size in mm (l x b): TBD
- Miscellaneous:
-
- Compliance: RoHS
Emission standards:
| S.No | Certification | Description |
|---|---|---|
| 1 | FCC Part 15, Subpart B, Class-B |
Regulates EMI from electronic devices to prevent interference with other equipment. |
| 2 | CE & ROHS |
CE ensures EMC compliance; RoHS restricts hazardous substances in electronic products. |
Application-Specific EMC and Environmental Standards Radiated Emission Standards
| S.No | Standard | Description |
|---|---|---|
| 1 | CISPR 32 | Sets EMI limits for multimedia devices to avoid disturbing nearby electronics. |
| 2 | CISPR 25 | Limits RF emissions in vehicles to protect onboard communication and entertainment. |
| 3 | ISO 14982 | Ensures EMI-safe operation of agricultural/forestry machines. |
| 4 | ISO 13766-1 | EMI testing for construction equipment with onboard electronics. |
Radiated Immunity Standards
| S.No | Standard | Description |
|---|---|---|
| 1 | EN 61000-4-3 | Tests how well a device works when exposed to outside electromagnetic signals. |
| 2 | ISO 11452-2 | Checks if car parts can handle signal noise in a test room. |
| 3 | ISO 11452-4 | Sends noise into cables to test if car electronics can still work properly. |
| 4 | ISO 13766-1 | Tests if construction machines keep working when exposed to strong signals. |
| 5 | ISO 14982 | Makes sure farm machines work well even when there’s a lot of electronic noise. |
Environmental Standards
| S.No | Standard | Description |
|---|---|---|
| 1 | ISO 16750-3 | Tests if car electronics can survive shocks, drops, and vibration. |
| 2 | ISO 16750-4 | Checks if electronics can handle heat, cold, and humidity in real-world conditions. |
| Part No | Kit Contents |
Sample Price (1 Unit) |
Purchase |
|---|---|---|---|
| STURDeCAM12_CUOAGX | NVIDIA® Jetson AGX Orin Dev Kit | - |
|
STURDeCAM12_CUOAGX- NVIDIA® Jetson AGX Orin Dev Kit
Sample Price (1 Unit)-
STURDeCAM12 - Customization for other Application Processor platforms:
e-con Systems® provides camera driver development, customization and porting services for STURDeCAM12 on any application platform as per customer requirements. For any driver customization or porting services or for using this Full HD camera with your application processor platform
STURDeCAM12 - Customization
e-con provides customization, development and porting services for the following requirements:
- IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
- To support other processor platforms
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
