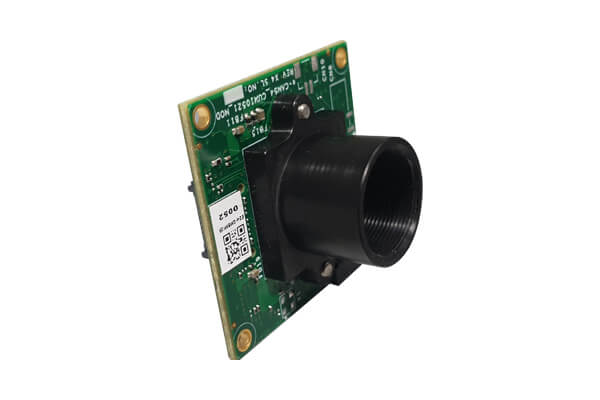

e-CAM55_CUMI0521_MOD - 5MP MIPI Camera Module

e-CAM55_CUMI0521_MOD is a small form factor, 5 MP fixed focus camera module based on AR0521 CMOS image sensor from ON Semiconductor® has a dedicated, high-performance Image Signal Processor chip (ISP) on-board that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video. This low light camera module can stream uncompressed VGA (640 x 480) at 75 fps, HD (1280 x 720) at 100 fps, 1280 x 960 at 75 fps, FHD (1920 x 1080) at 65 fps, 2560 x 1440 at 38fps, 2592 x 1944 at 28 fps.

Key Features
Sensor Features
Interfacing
Documents
Evaluation Kit
Customization

5MP Colour camera with 2-lane/4-lane MIPI CSI-2 interface
1/2.5" Optical Form-factor
Uncompressed UYVY streaming
S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
External Trigger input
Maximum Image Transfer Rate : Uncompressed UYVY Output Format

Resolutions	2-lane MIPI (NANO)
VGA (640 x 480)	75 fps
HD (1280 x 720)	100 fps
960P (1280 x 960)	75 fps
FHD (1920 x 1080)	65 fps
QHD (2560 x 1440)	38 fps
5MP (2592 x 1944)	28 fps

Power consumption of Camera Module Board : 1.65W (Approx)
Temperature Range
1. Operation - -30° to 70° C
Small form-factor pluggable camera module with S-mount lens holder
30mm x 30mm size
Board Weight: 6 Grams
2x 20-pin SMT Connectors on two sides of the camera module for better mechanical stability
RoHS Compliant
Launched on:

AR0521 - CMOS Image Sensor from ON Semiconductor®
1/2.5-inch CMOS active-pixel digital image sensor
2.2 µm pixel size with advanced BSI technology
Simple two-wire fast-mode+ serial interface
Support for external mechanical shutter
Two on-die phase-locked loop (PLL) oscillators for super low noise performance
Responsivity: 18.8ke-/lux-sec
Dynamic Range: 74.3 dB Linear, more than 96 dB (Interleaved)
SNR MAX: 40 dB

2-lane/4-lane MIPI CSI-2 interface for video and I2C interface for camera configuration
Dual 20-pin connector on board to plug in to customer boards directly
Linux V4L2 Capture driver with demo application
Customers can purchase the driver source code from e-con Systems and port the same to their application processor.
Please contact sales@e-consystems.com for customization requirements.

Evaluation Kit:

1. PC Solution

See3CAM_CU55 - 5.0 MP Low Noise USB3.1 Gen1 Camera

Customers who own platforms that support USB3.1 Gen1 and are interested in evaluating the 5 mega pixel USB camera module can directly buy the See3CAM_CU55 from e-con Systems.

US$79

Excluding Shipment Charges

2. ARM Based Solution (Toradex Apalis i.MX8QM)

e-CAM50_CUiMX8 - 5.0 MP MIPI Camera Board (Requires Toradex Apalis i.MX8QM carrier board):

The MIPI Camera daughter card (e-CAM50_CUiMX8) can be bought by customers choosing to evaluate the e-CAM55_CUMI0521_MOD camera solution with a direct interface on the Toradex Apalis i.MX 8QM.

US$129

Excluding Shipment Charges

3. ARM Based Solution (NVIDIA® Jetson Xavier™ NX Dev Kit)

e-CAM50_CUNX - 5.0 MP MIPI Camera Board (Requires NVIDIA® Jetson Xavier™ NX Dev Kit):

The MIPI Camera daughter card (e-CAM50_CUNX) can be bought by customers choosing to evaluate the e-CAM55_CUMI0521_MOD camera solution with a direct interface on the NVIDIA® Jetson Xavier™ NX Developer Kit.

US$99

Excluding Shipment Charges

4. ARM Based Solution (NVIDIA® Jetson NANO™ Dev Kit)

e-CAM50_CUNANO - 5.0 MP MIPI Camera Board (Requires NVIDIA® Jetson NANO™ Dev Kit):

The MIPI Camera daughter card (e-CAM50_CUNANO) can be bought by customers choosing to evaluate the e-CAM55_CUMI0521_MOD camera solution with a direct interface on the NVIDIA® Jetson NANO™ Developer Kit.

5. ARM Based Solution (Rockchip RK3399 Dev Kit)

e-CAM50_CU96 - 5.0 MP MIPI Camera Board (Requires Rockchip RK3399 Dev Kit):

The MIPI Camera daughter card (e-CAM50_CU96) can be bought by customers choosing to evaluate the e-CAM55_CUMI0521_MOD camera solution with a direct interface on the Rockchip RK3399 Developer Kit.

US$129

Excluding Shipment Charges

6. ARM Based Solution (Google Coral development board)

e-CAM50_CUCRL - 5.0 MP MIPI Camera Board (Requires Google Coral development board):

The MIPI Camera daughter card (e-CAM50_CUCRL) can be bought by customers choosing to evaluate the e-CAM55_CUMI0521_MOD camera solution with a direct interface on the Google Coral development board.

US$99

Excluding Shipment Charges

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM55_CUMI0521_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM55_CUMI0521_MOD on any application platform as per customer requirements.

e-CAM55_CUMI0521_MOD Customization:

e-con provides customization for the following requirements:

PCB form-factor customization for any shape, connector and orientation
Lens holder customization for C/CS mount lens holder
Driver development for any OS: Android
Interfacing with any Application Processor : Freescale i.MX8, NVIDIA Jetson TX2/Xavier and any other processor
Camera and ISP features customization based on specific requirements

Please contact sales@e-consystems.com for customization requirements.
