e-CAM50_CUTDA4 - 5MP Camera for Texas Instruments® SK-TDA4VM

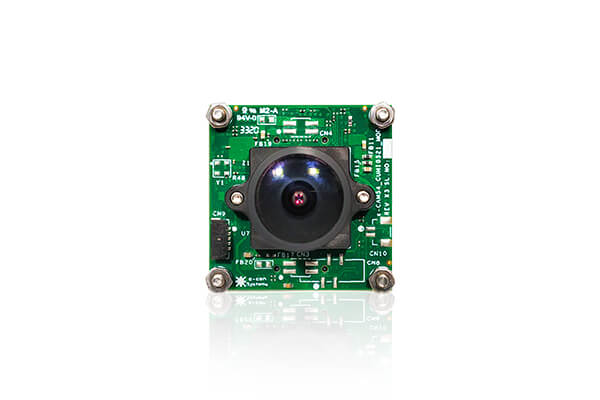

e-CAM50_CUTDA4 is a 5 MP camera solution for Texas Instrument's SK-TDA4VM - TDA4VM processor starter kit - aimed to provide a complete vision solution for Edge AI vision systems. This 5MP camera is based on the 1/2.5" AR0521 CMOS image sensor from onsemi®. It is a color camera that supports the UYVY image format. It also comes with an S-mount (also known as M12 board lens) lens holder that gives customers the flexibility to choose the lens of their choice depending on the end application. This 5MP camera has a pixel size of 2.2μm making it highly sensitive but at the same time suitable for applications where tiny objects must be captured.

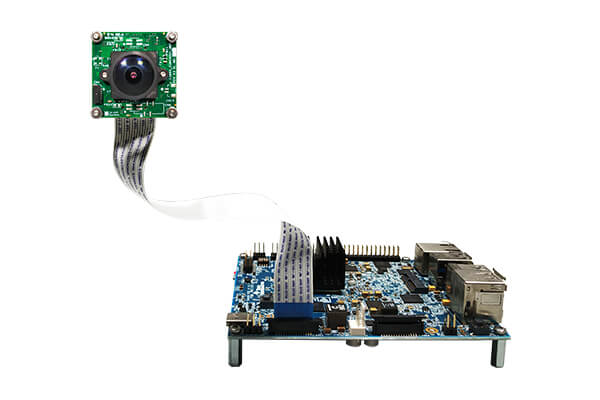

e-CAM50_CUTDA4 can be directly interfaced with SK-TDA4VM that offers up to 8 TOPS of deep learning performance and hardware-accelerated edge AI processing. The camera module is designed and tuned to meet the imaging needs of such AI-based embedded vision applications. Read More »

  • Houses e-CAM55_CUMI0521_MOD - 5.0 MP Camera Module
  • High speed 2-lane MIPI CSI-2 interface
  • Plugs directly into the Texas Instruments® SK-TDA4VM Starter kits
  • On-board ISP for excellent image quality
  • Frame Rate : Streams 5MP@ 28 fps , Full HD @ 65 fps & HD @ 100fps
    Refer pdfDatasheet for complete frame rate details.
  • Uncompressed UYVY streaming
  • Operating Voltage : 3.3V +/- 5%
  • Operating Temperature Range : - 30°C to 70°C
  • Power consumption : Max 1.62W
  • Size in mm (l x W) : 30 mm x 30 mm
  • Standard M12 lens holder for use with customized optics or lenses for various applications
  • Lightweight, versatile, and portable design
  • Compliant
    • FCC
    • RoHS
  • Launched on: launch date

Sensor:AR0521 from onsemi®

Focus Type:Fixed focus

Resolution:5MP

Optical Format:1/2.5"

Pixel size:2.2µm x 2.2µm

Sensor Active Area:2592H x 1944V

Responsivity:18.8 Ke-/luxsec

SNR:40 dB

Dynamic Range:74.3 dB

Output Format:Uncompressed UYVY format

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

DFOV :5MP - 140.5°(with the lens provided by e-con)

e-con Systems provides Gstreamer and V4L2 commands that demonstrates the features of this camera. However, this camera can also be utilized by any V4L2 application.

Linux camera driver:

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture Camera controls via IOCTLs
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (Manual, Automatic)
    • Digital Zoom
    • Denoise

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM50_CUTDA4 - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM50_CUTDA4 Datasheet

pdf e-CAM50_CUTDA4 Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM50_CUTDA4 Getting Started Manual

pdf e-CAM50_CUTDA4 Developer Guide

pdf e-CAM50_CUTDA4 Gstreamer Usage Guide

Download Selected Documents

Kit Contents

  • e-CAM55_CUMI0521_MOD - 5MP MIPI Camera Module with Lens
  • Adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

USD 99
Buy Camera online

Excluding Shipment Charges
