e-CAM56_CUONX - 5MP Sony® Pregius S IMX568 Global shutter Camera for NVIDIA® Jetson Orin NX™/Orin Nano™


  • Houses e-CAM521_CUMI568C_MOD - 5MP camera based on Sony® Pregius S IMX568 sensor
  • Global Shutter
  • High Sensitivity

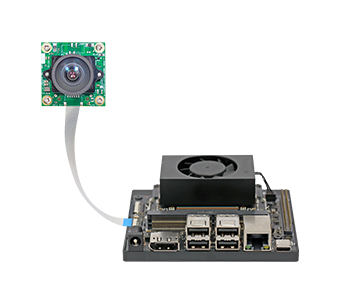

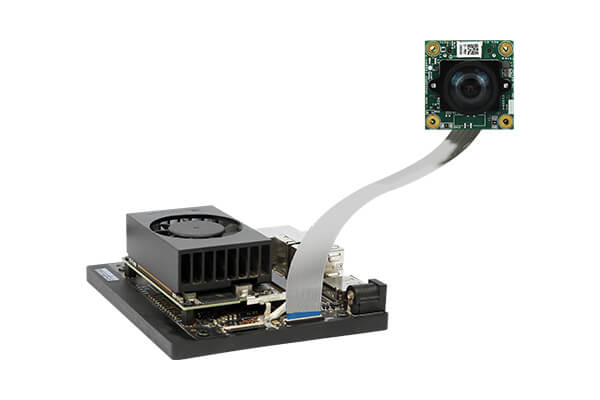

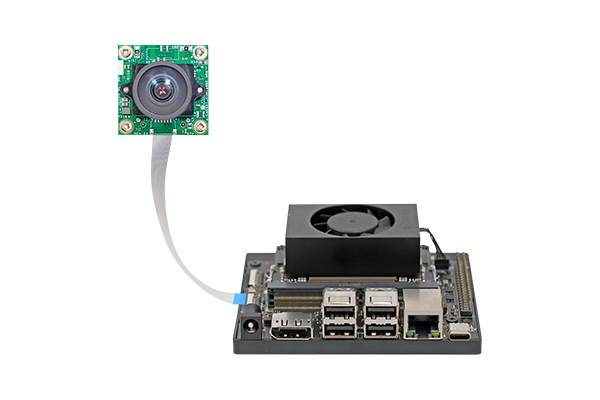

  • Plugs in to NVIDIA® Jetson Orin NX / Orin Nano Developer Kit
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing

Sample Price

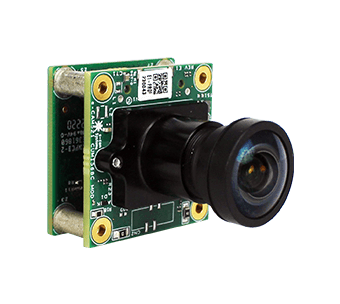

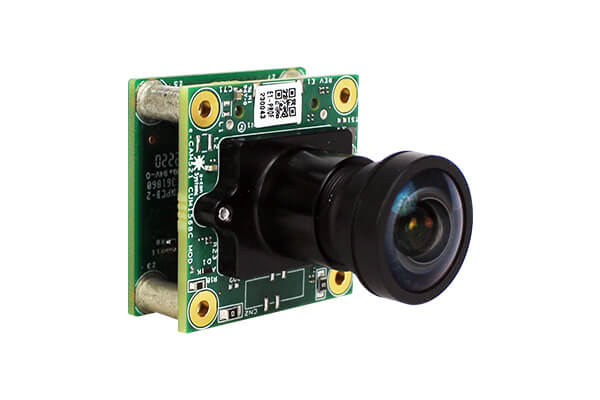

e-CAM56_CUONX is a 5 MP multi-camera solution for the NVIDIA® Jetson ORIN NX™/ORIN NANO™ development kit. It is based on 1/1.8" Sony® Pregius S IMX568 Back-side illuminated image sensor. This camera module features a global shutter, ensuring distortion-free image capture of fast-moving objects.

This camera uses the NVIDIA® Jetson ISP to produce best-in-class image output in uncompressed YUV format. e-CAM56_CUONX is an ideal solution for applications such as traffic monitoring, factory automation, conveyor monitoring, and automatic number plate recognition (ANPR).

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: 5MP @ 90 fps
      Refer pdfDatasheet for complete frame rate details.
    • High-speed MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Sensor features:
    • Sensor: IMX568 from Sony® Pregius S
    • Focus Type: Fixed focus
    • Sensor Resolution: 5MP
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/1.8"
    • Output Format: RAW Bayer
    • Pixel Size: 2.74 μm x 2.74 μm
    • Sensor Active Area: 2472 (H) x 2064 (V)
    • Array Size: 2472 (H) x 2128 (V)
    • Lens Holder: M12 (S-Mount)
    • DFOV: TBD
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption: TBD
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
Linux camera driver:

e-CAM56_CUONX camera requires a custom camera driver for NVIDIA® Jetson Orin Nano™ / Orin™ NX Developer Kit. e-con Systems™ provides the camera driver along with the camera board.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson™ ORIN NX / Orin nano - JetPack 5.1.1 L4T35.3.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls:
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet

Download 5MP Camera Documents

  • e-CAM521_CUMI568C_MOD - 5.0 MP MIPI Camera Module with lens
  • Adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM56_CUONX - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM56_CUONX on any application platform as per customer requirements.

e-CAM56_CUONX Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/S mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

Targeted Applications

  • Traffic Monitoring

  • Factory Automation

  • Conveyor Monitoring Cameras

  • Automatic Number Plate Recognition (ANPR)
