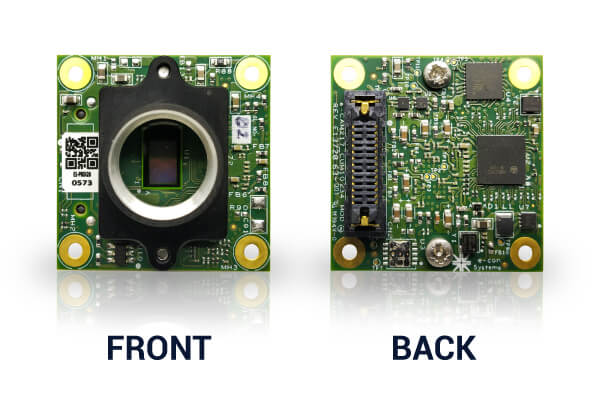

e-CAM217_CUMI0234_MOD - Full HD AR0234 Global Shutter Camera Module

e-CAM217_CUMI0234_MOD is a Full HD (FHD) Global Shutter 4 lane MIPI CSI-2 color camera module, particularly designed to capture fast-moving objects with high image quality. This FHD camera module is based on 1/2.6" AR0234 CMOS image sensor with a 3-µm pixel size. The high-performance global shutter camera module can capture images at high frame rate, FHD (1080p) up to 120 fps. Its global shutter and high frame rate capabilities help to minimize frame-to-frame distortion and reduce motion artifacts while capturing.

The AR0234 global shutter camera module has a dedicated Image Signal Processor (ISP), that performs all the auto functions such as Auto White Balance, Auto Exposure control. Its interchangeable M12 (S-mount) lens allows customers to choose a lens of their choice according to their application needs.

Key Features

  • Full HD Color camera with 4-lane MIPI CSI-2 interface
  • Global Shutter
  • 1/2.6" Optical Form-factor
  • Onboard ISP
  • Uncompressed UYVY streaming
  • Maximum Image Transfer Rate
  • Resolutions MIPI Solutions (NVIDIA® Jetson Xavier NX/Nano)
    UYVY
    HD (1280 x 720) 120 fps
    Full HD (1920 x 1080) 65 fps
    2.3 MP (1920 x 1200) 60 fps
  • Power consumption: 0.92 W
  • External Hardware Trigger Input
  • Temperature Range
    • Operating Temperature Range: -30°C to 70°C
  • Small form-factor
  • 30mm x 30mm size. Height depends on the Lens
  • Compliance
    • FCC
    • RoHS
  • Launched on:launch date

Sensor:1/2.6" Optical format AR0234 CMOS Image sensor

Focus Type:Fixed focus

Resolution:Full HD

Pixel size:3µm x 3µm

Sensor Active Area:1920H x 1200V

Responsivity:56 Ke-/luxsec

SNR:38 dB

Dynamic Range:71.4 dB

Output Format:Uncompressed UYVY streaming

Shutter type:Global Shutter

Holder:S-Mount

Array Size:1920 (H) × 1200 (V)

Product Code Supported Platforms Sample Price
e-CAM25_CUONX
Kit Content
  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with lens
  • Adaptor board
  • Flex Cable (15 cm)
  • »  NVIDIA® Jetson Orin™ NX Dev Kit
e-CAM24_CUNX
Kit-contents
  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with lens
  • Adaptor board
  • Flex Cable (15 cm)
  • SD Card
  • Linux Driver & Sample Application
  • »  NVIDIA® Jetson Xavier™ NX / TX2 NX / Nano Dev Kit
  • »  AVerMedia carrier board EN715 for NVIDIA® Jetson     Nano™/Xavier NX Dev Kit
  • »   Connect Tech Photon AI Camera for NVIDIA® Jetson Nano™      / TX2 NX / Xavier NX Dev Kit
See3CAM_24CUG
Kit-contents
  • See3CAM_24CUG - Full HD USB 3.1 Gen1 Color Camera
  • USB 3.1 Gen 1 Type-A to Type-C Cable
  • Lens (Optional)
  • e-CAMView (Windows) / QtCAM (Linux)
»  USB 3.0 Camera Solutions
e-CAM21_CUiMX8
Kit-contents
  • e-CAM21_CUiMX8 - 2MP Global Shutter Color Camera,
  • Camera adaptor board,
  • Ixora adaptor board
  • Micro-coaxial cable and a FFC cable
»  i.MX8 Processors
e-CAM20_CURB
Kit-contents
  • e-CAM20_CURB - Full HD Global Shutter Color Camera,
  • adaptor board,
  • FFC cable
»  Raspberry Pi 4 kit
e-CAM25_CUNX
Kit-contents
  • e-CAM25_CUNX - Full HD Global Shutter Color Camera,
  • adaptor board,
  • Micro Coaxial Cable
»  FLOYD carrier board
e-CAM20_CUOAGX
Kit-contents
  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with Lens
  • Adaptor board
  • Base board
  • Six Micro Coaxial Cable
  • »  NVIDIA® Jetson AGX Orin™ Dev Kit
e-CAM20_CUTDA4
Kit-contents
  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with lens
  • Adaptor board
  • FPC cable (15cm)
»  Texas Instrument's SK-TDA4VM
e-CAM20_CURZ
Kit-contents
  • e-CAM217_CUMI0234_MOD - Full HD Global Shutter Color Camera,
  • Adaptor board,
  • FFC cable
»  Renesas® RZ/V2L
e-CAM25_CUXVR
Kit-contents
  • e-CAM217_CUMI0234_MOD – Full HD MIPI Camera Module with Lens
  • Adaptor board
  • Base board
  • Micro Coaxial Cable
  • »  NVIDIA® Jetson AGX Xavier™ Dev Kit
USD 249

Note: For GMSL camera support please visit NileCAM25_CUXVR

* Promotional Sample Price

e-CAM217_CUMI0234_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM217_CUMI0234_MOD on any application platform as per customer requirements.

e-CAM217_CUMI0234_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for any OS: Linux, Android
  • Interfacing with any Application Processor : Freescale i.MX8, NVIDIA Jetson TX2/ AGX Xavier and any other processor
  • Camera and features customization based on specific requirements

Please contact sales@e-consystems.com for any customization requirements.
