e-CAM20_CURZ - AR0234 Global Shutter Camera for Renesas® RZ/V2L

Highlights

  • Houses e-CAM217_CUMI0234_MOD - Full HD fixed focus MIPI Camera Module
  • Global Shutter
  • Plugs directly into the Renesas® RZ/V2L development kit
  • On-board high performance ISP

SAMPLE PRICE

USD 149

Excluding Shipment Charges

Documents

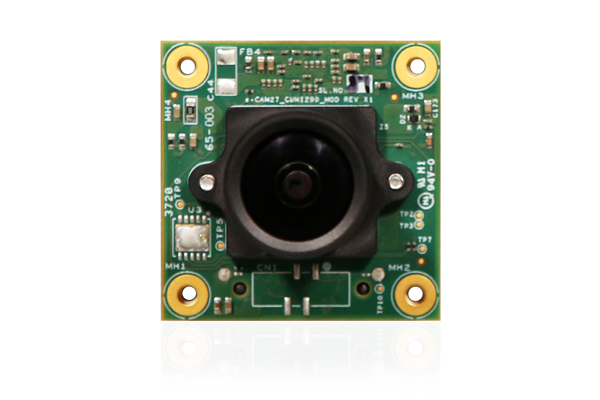

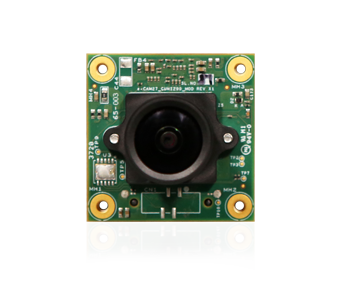

e-CAM20_CURZ is a 2 MP custom lens camera module based on 1/2.6" AR0234CS CMOS image sensor from ON Semiconductor®. It is a color camera which supports UYVY image format and provided with S-mount (also known as M12 board lens) lens holder.

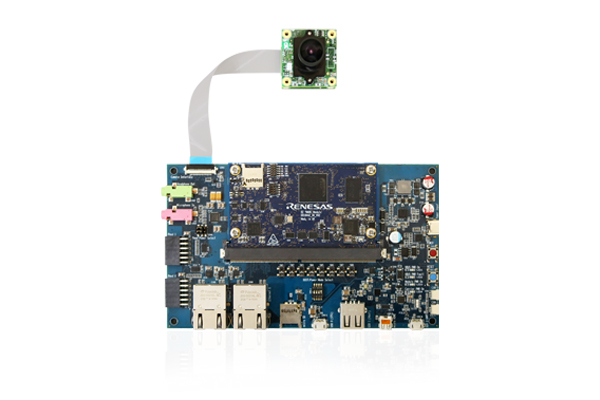

This camera board targets the Renesas® RZ/V2L Development kit. e-CAM20_CURZ can be interfaced to the CN1 connector of the Renesas® RZ/V2L development kit.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Streams HD at 120 fps, FHD at 65 fps
      Refer pdfDatasheet for more details.
    • Output format: Uncompressed UYVY format
    • High speed 4-lane MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • External trigger support
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: 4-Lane MIPI CSI-2
    • Connector: CN1 connector
  • Module features:
    • Sensor: AR0234CS from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 1920(H) x 1200(V)
    • Array Size: 1920(H) x 1200(V)
    • Responsivity: 56 Ke-/luxsec
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Holder: M12 (S-Mount)
    • DFOV: 133.9° (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating Voltage: 3.3V with +/- 5%
    • Operating Temperature Range: -30°C to 70°C (without enclosure)
    • Typical power consumption: 1.10W
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: FCC, RoHS
  • e-con Systems provides the sample applications that demonstrates the features of this camera. However, this camera can also be utilized by any V4L2 application.
  • Linux camera driver:
    • V4L2 Linux driver for MIPI CSI-2 camera module:
      • Video preview
      • Still Image capture
      • Camera controls via IOCTLs
    • Gstreamer support
  • Please contact camerasolutions@e-consystems.com for any customization requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD Camera Documents

Kit Contents
  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with Lens
  • Adaptor board
  • FPC cable (15cm)
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
