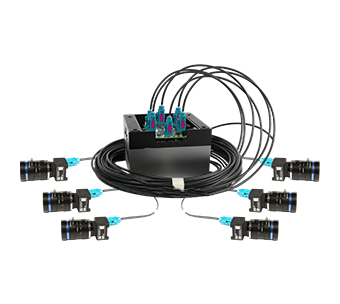

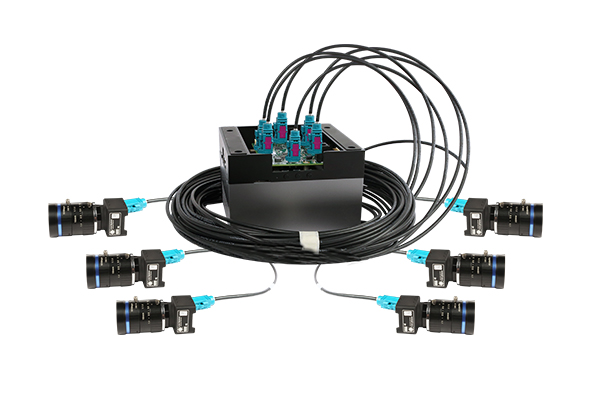

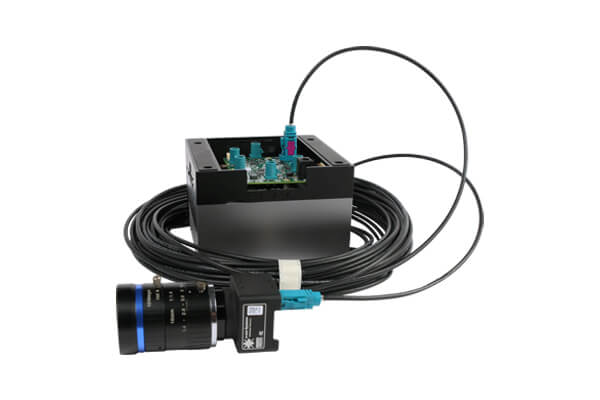

NileCAM82_CUOAGX - Sony® Starvis™ IMX485 4K GMSL2 Camera for NVIDIA® Jetson AGX Orin™ (up to 6 cameras)

• Key features:
• • Frame Rate:
    • Streams Full HD @ 62fps and 4k @ 39fps
    Refer Datasheet for complete frame rate details.
  • Output Format: YUV(NV12)
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Control for individual cameras
  • Lightweight, versatile, and portable design
• Interface:
• • Interface: GMSL2

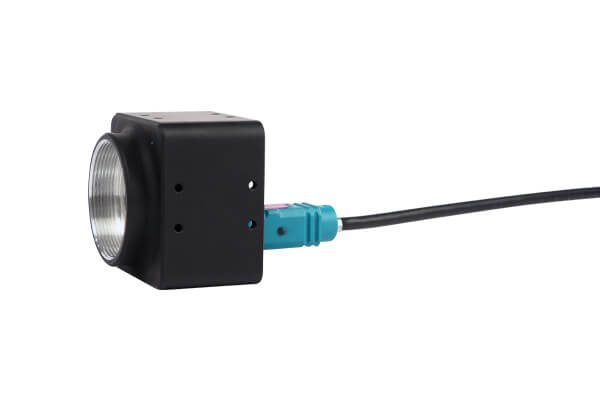

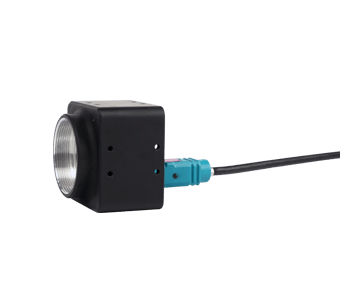

  • Connector: FAKRA connector
  • Cable Length: 3m & 15m
• Module features:
• • Sensor: IMX485 sensor from SONY® Starvis
  • Focus Type: Fixed focus
  • Sensor Resolution: 8.4MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/1.2"
  • Output Format: RAW10-bit & RAW12-bit
  • Pixel Size: 2.9 μm x 2.9 μm
  • Sensor Active Area: 3864(H) x 2180(V)
  • Array Size: 3864(H) x 2200(V)

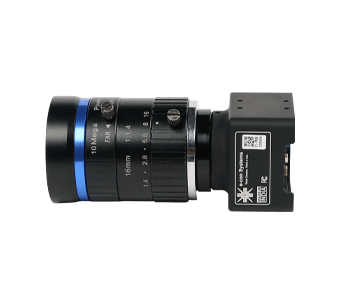

  • Holder: CS-Mount*
  • FOV: 33° (D), 29° (H), 15° (V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 5 to 15V with +/- 5% tolerance
  • Operating Temperature Range: -30°C to 70°C
  • Typical power consumption: 3.216W
  • Size in mm (l x b):
    • serializer board - 35 mm x 35 mm
    • deserializer board - 75 mm x 55 mm
• Miscellaneous:
• • Compliance: RoHS
• Launched on:
• *- CS-Mount holder comes with an enclosure. CS-Mount to C-Mount converter is also available.

Linux camera driver:

Full-fledged Linux camera driver for NileCAM82_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

• Supported Jetpack & L4T Version
• • NVIDIA® Jetson AGX Orin™ - Jetpack 5.1.2 / L4T 35.4.1
• V4L2 Linux driver for MIPI CSI-2 camera module:
• • Video preview
  • Still Image capture
  • Camera controls via IOCTLs
• Sample application with source Code for Linux:
• • Video Preview
  • Still Image capture
• Camera Controls:
• • Exposure Time Range
  • Gain Range
  • ISP Digital Gain Range
  • Sensor Mode Index
  • Frame Rate
  • De-Noise Mode
  • De-Noise Strength
  • Edge Enhance Mode
  • Edge Enhance Strength
  • Auto Exposure (AE) Antibanding Mode
  • Auto White Balance (AWB) Mode
  • AE Lock
  • AWB Lock
  • Output Size
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

NileCAM82_CUOAGX - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM82_CUOAGX on any application platform as per customer requirements.

NileCAM82_CUOAGX - Customization

e-con provides customization, development and porting services for the following requirements:

• IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
• Length of the co-axial cable
• Change of lens to meet your FOV and other requirements
• Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
• Support for other processor platforms
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
