e-CAM85_CUOAGX - Sony® Starvis™ IMX715 Camera for NVIDIA® Jetson AGX ORIN Dev Kit

Highlights:

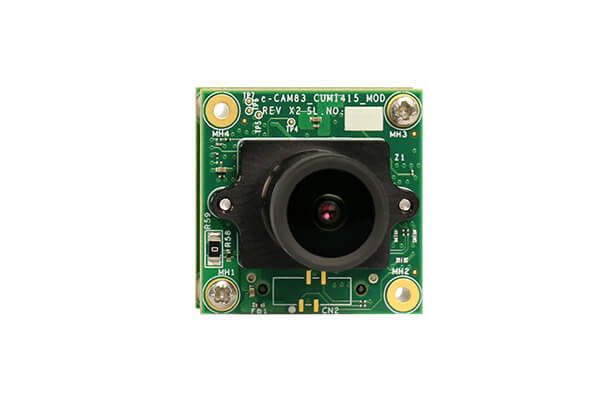

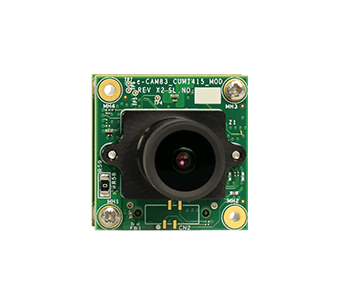

  • Houses 8MP Sony® STARVIS Camera Module with S-mount lens holder.
  • Ultra-Low light performance
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Plugs into NVIDIA® Jetson AGX ORIN developer kit

Sample Price

e-CAM85_CUOAGX is an 8 MP ultra-lowlight MIPI CSI-2 camera for NVIDIA® Jetson AGX ORIN developer kit. This camera houses an 8MP Sony® STARVIS camera module which produces superior image quality in both visible and low-light conditions.

This multi-camera solution can connect multiple cameras to NVIDIA® Jetson AGX ORIN developer kit and uses NVIDIA® Internal Image Signal Processor (ISP) for image processing.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • 4K @ 30fps
      Refer pdfDatasheet for complete frame rate details.
    • Standard S-mount lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX (CN2) connector
    • Cable Length: 30cm
  • Sensor features:
    • Sensor: IMX715 from SONY® STARVIS
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/ 2.8"
    • Output Format: RAW 10/12-bit
    • Pixel Size: 1.45μm x 1.45μm
    • Sensor Active Area: 3848(H) x 2168(V)
    • Array Size: 3840(H) x 2160(V)
    • Holder: M12 (S-Mount)
    • FOV: TBD
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to +70°C
    • Typical power consumption: TBD
    • Size in mm (l x b x h):
      • Camera board: 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • * - Please contact camerasolutions@e-consystems.com
Linux camera driver:

Full-fledged Linux camera driver for e-CAM85_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX Orin™ - Jetpack 5.1 L4T35.2.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture
  • Camera Controls: TBD
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM85_CUOAGX - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for e-CAM85_CUOAGX on any application platform as per customer requirements.

e-CAM85_CUOAGX - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
