STURDeCAM34_CUOAGX - 3MP 140dB HDR GMSL2 Camera for NVIDIA® Jetson AGX Orin™
World's first plug-and-play GMSL Camera

Highlights

  • STURDeCAM34 - HDR camera module with onsemi® AR0341AT sensor and Super-exposure pixel technology
  • Camera provides upto 140dB High Dynamic Range (Supports upto 150dB HDR via raw data output)
  • Exceptional LED Flicker Mitigation
  • GMSL2 interface supports up to 15m coaxial cables with FAKRA connectors

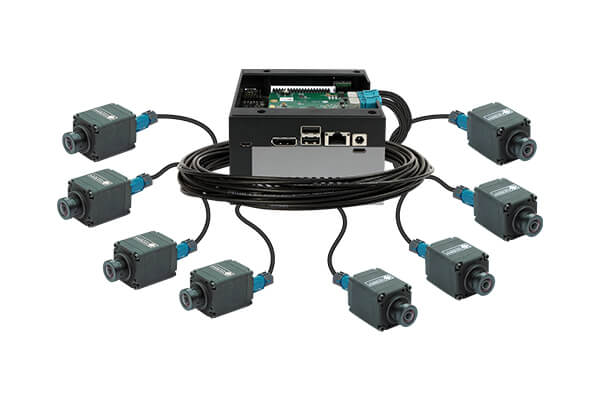

  • Synchronized multi-camera solution (upto 8 cameras)
  • Patented hot-pluggable support*
  • IP69K-rated enclosure
  • Stream Health Monitor and Recovery

Introductory
Sample Price

Volume Price
starts at

USD 99

Technical
documents

Technical documents



Download Document

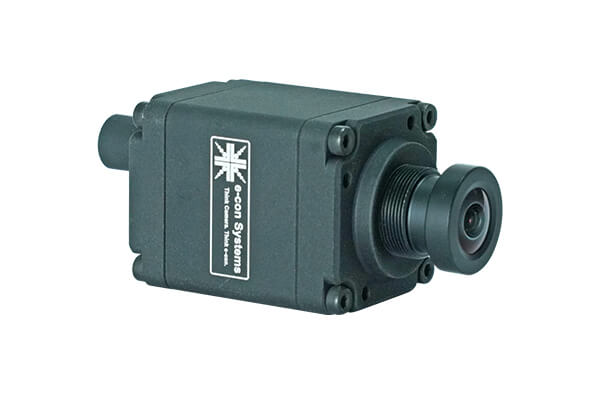

STURDeCAM34_CUOAGX is a 3MP GMSL2™ camera module based on AR0341AT CMOS image sensor. This module stands out with its remarkable features, including super-exposure pixel technology that provides up to 140 dB high dynamic range (HDR) with LED flicker mitigation (LFM) operation (RAW Sensor supports upto 150dB HDR). This super-exposure pixel technology eliminates the need for auto exposure control operations and also minimizes latency in sensing and viewing camera applications, making it highly suitable for Advanced Driver Assistance Systems (ADAS) and other critical applications.

With e-con Systems' patented hot-pluggable GMSL support, you can connect or disconnect the camera without system downtime or disruption, providing greater flexibility in critical systems. This camera supports both 3-meter and 15-meter coaxial cables. It is compatible with NVIDIA® Jetson AGX Orin platform, offering synchronized multi-camera solutions that support up to eight cameras through the GMSL2 interface.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • 3MP @ 30 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: UYVY
    • On-board high performance ISP
    • S-mount IP69K compliant lens focused and glued at factory
    • Lightweight, versatile, and portable design
    • Small form factor
  • Interface:
    • Interface: GMSL2™

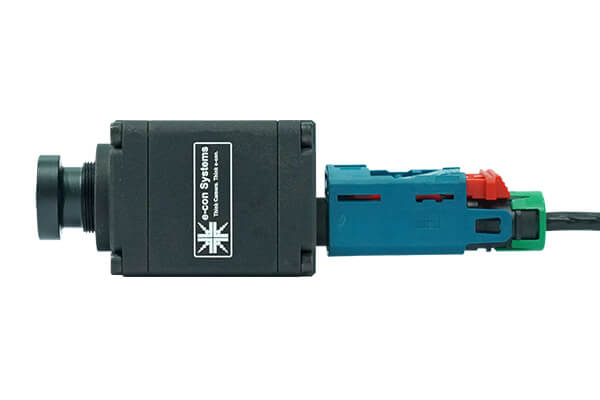

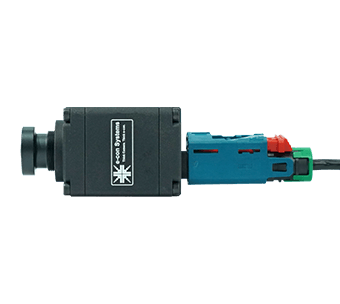

    • Connector: FAKRA connector
    • Cable Length: upto 15m
  • Module features:
    • Sensor: AR0341 from onsemi®
    • Focus Type: Fixed focus
    • Focus Distance: From 1.7m to infinity
    • Sensor Resolution: 3MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/3.6"
    • Output Format: UYVY
    • Pixel Size: 2.1μm x 2.1μm
    • Sensor Active Area: 1920 (H) x 1536 (V)
    • Array Size: 1920 (H) x 1536 (V)
    • Dynamic Range: upto 150dB
    • Holder: M12 (S-Mount)
    • FOV: 64.62° (H), 51.28° (V), 83.5° (D)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: 2.192 W (For each Camera)
    • Size in mm (l x b):
      • With Enclosure - 25 x 25 mm
      • Deserializer Board - 80.8 x 55 mm
  • Standards and Compliance:
    • FCC Class-B, RoHS
    • For application specific standards, refer here » refer here»
    • IP69K Certified (Dust tight with protection against close-range high pressure, high temperature spray downs)
  • Launched on: launching date

* - This option is not available by default. Please contact camerasolutions@e-consystems.com to enable this feature.

Emission standards:
S.No Certification Test Specifications
1 FCC Part 15, Subpart B, Class-B

Test done according to Federal Communications Commission's (FCC) regulations for electronic devices under subpart B

2 CE & ROHS
Application Specific Standards:
S.No TARGETED APPLICATION RADIATED EMISSION RADIATED IMMUNITY ENVIRONMENTAL
1 Delivery robots

CISPR-32
Electromagnetic compatibility of multimedia equipment - Emission requirements 30MHz to 6000MHz

EN 61000-4-3:2020
Electromagnetic compatibility (EMC) - Part 4-3 : Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test 80MHz to 6000MHz @ 3V/m

ISO 16750-4
Road vehicles Environmental conditions and testing for electrical and electronic equipment
Part 4: Climatic loads



ISO 16750-3
Road vehicles Environmental conditions and testing for electrical and electronic equipment
Part 3: Mechanical loads

2 Warehouse robots
3 ADAS

CISPR-25-6.4
Vehicles, boats, and internal combustion engines - Radio disturbance characteristics - Limits and methods of measurement for the protection of on- board receivers, 30 MHz to 1000 MHz

ISO 11452-2
Road vehicles Component test methods for electrical disturbances from narrowband radiated electromagnetic energy
Part 2: Absorber-lined shielded enclosure 200MHz to 2000MHZ @30V/m.



ISO 11452-4
Road vehicles Component test methods for electrical disturbances from narrowband radiated electromagnetic energy
Part 4: Bulk current injection (BCI) 20MHz to 200MHz @60mA

4 Autonomous vehicle
5 Road vehicles
6 Remote driving
7 Earth moving and building construction machinery

ISO 14982
Agricultural and forestry machinery — Electromagnetic compatibility — Test methods and acceptance criteria from 30MHz to 1000MHz

ISO 13766-1
Earth-moving and building construction machinery — Electromagnetic compatibility (EMC) of machines with internal electrical power supply 200MHz to 2000MHz @24V/m

8 Agriculture and forest machinery

ISO 13766-1
Earth-moving and building construction machinery — Electromagnetic compatibility (EMC) of machines with internal criteria electrical power supply 30 to 1000MHz

ISO14982
Agricultural and forestry machinery — Electromagnetic compatibility - Test methods and acceptance criteria 200MHz to 2000MHz @ 24v/m.

Note: The product has been qualified for above standards with simulated control unit. Final Certification to be performed with targeted system & application.

  • Linux camera driver:
    • Full-fledged Linux camera driver for STURDeCAM34_CUOAGX with NVIDIA® Jetson AGX ORIN™ developer kit. The camera driver source code can be ported to any NVIDIA AGX ORIN platform.
  • Supported Jetpack & L4T Version:
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video preview
    • Still Image capture at selected resolutions
  • Camera Controls:
    • Brightness
    • Saturation
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Power Line Frequency
    • Sharpness
    • Frame Sync Mode
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download STURDeCAM34_CUOAGX Documents

Part No Kit Contents Sample Price
(1 Unit)
Purchase
STURDeCAM34_CUOAGX_CXLC_AT_1H01R1
  • One * STURDeCAM34 - 3MP AR0341AT GMSL2 HDR camera with IP69K Enclosure
  • One * Lens
  • One * 3 meters coaxial cable
  • One * Deserializer board with 2 x quad Fakra connectors
buy now
STURDeCAM34_CUOAGX_CXLC_AT_4H01R1
  • Four * STURDeCAM34 - 3MP AR0341AT GMSL2 HDR camera with IP69K Enclosure
  • Four * Lens
  • Four * 3 meters coaxial cable
  • One * Deserializer board with 2 x quad Fakra connectors
- ContactUs

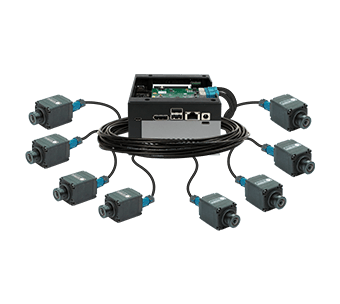

STURDeCAM34_CUOAGX_CXLC_AT_8H01R1
  • Eight * STURDeCAM34 - 3MP AR0341AT GMSL2 HDR camera with IP69K Enclosure
  • Eight * Lens
  • Eight * 3 meters coaxial cable
  • One * Deserializer board with 2 x quad Fakra connectors
- ContactUs

Please contact camerasolutions@e-consystems.com for information about the customization options, including 15-meter cable and Jetson AGX Xavier platform support.

Note: The new deserializer board with this kit is a must for the camera. Old deserializer boards are not compatible.

* - The IP69K rating is applicable only when the customer utilizes the appropriate IP69K validated GMSL cable with this specific part number.

STURDeCAM34_CUOAGX_CXLC_AT_1H01R1-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit

Sample Price (1 Unit)-

buy now

STURDeCAM34_CUOAGX_CXLC_AT_4H01R1-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit

Sample Price (1 Unit)--

STURDeCAM34_CUOAGX_CXLC_AT_8H01R1-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit

Sample Price (1 Unit)--



STURDeCAM34_CUOAGX - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM34_CUOAGX on any application platform as per customer requirements.

STURDeCAM34_CUOAGX - Customization:

e-con provides customization for the following requirements:

  • IP rated (IP69K) enclosure and IP rated (IP69K) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and feature customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
