NileCAM200 - 20MP AR2020 High Resolution GMSL2 Camera Module

Tags: GMSL2 Cameras

Highlights:

  • Houses 20 MP Camera based on onsemi® AR2020 sensor
  • Wake on Motion - Enables sensor to remain in low-power state until motion detected *
  • Smart ROI - Allows for dynamic selection and prioritization of specific regions within the field of view *
  • GRR - Reduces the rolling shutter artifacts #
  • GMSL2 interface to transmit power and data up to 15m
  • Optional IP67-rated enclosure

Samples Available

ContactUs

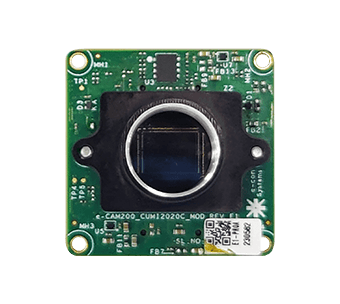

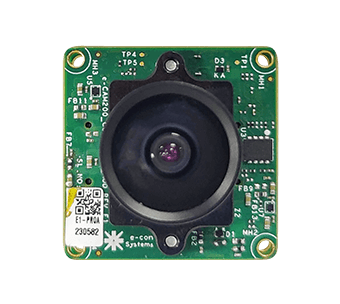

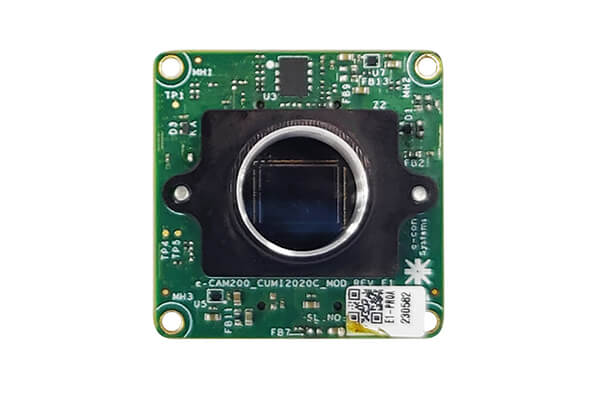

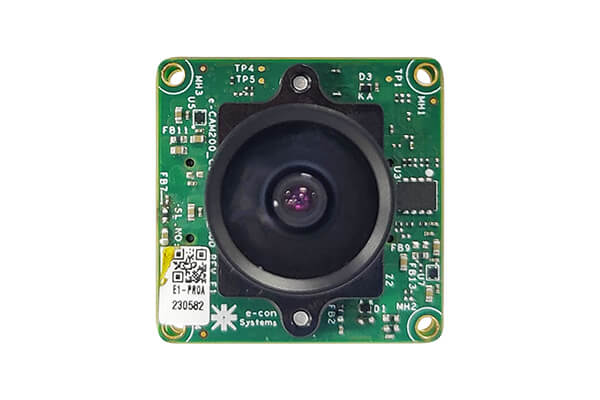

NileCAM200 is a 20 MP GMSL2 camera module with an AR2020 sensor from onsemi®, delivering outstanding image quality - with its fixed focus capability and high resolution. This camera module enables cutting-edge features like wake-on motion, smart ROI, and a rolling shutter with global reset release mode.

With a small pixel size of 1.4 μm, stacked BSI technology, and enhanced NIR performance, the NileCAM200 is suited for various applications, including people monitoring, video conferencing, and factory automation. The camera module also has an IP-rated (IP67) enclosure and cables, ensuring reliability even in challenging environments.

  • Key features:
    • Frame Rate: 20MP @ 24 fps
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR2020 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 20MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.8"
    • Output Format: RAW Bayer
    • Pixel Size: 1.4μm x 1.4μm
    • Sensor Active Area: 5120 (H) x 3840 (V)
    • Holder: M12 (S-Mount)
    • FOV: 118.81°(D), 65.98°(H), 90.28°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V +/- 5% tolerance
    • Operating Temperature Range: -30°C to 80°C
    • Typical power consumption: TBD
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • * - Not available with the off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.
  • # - Rolling shutter is supported in the default firmware. Customized firmware/hardware is required to use a rolling shutter with Global reset mode.

Product Code Supported Platforms Sample Price
(1 Unit)
NileCAM200_CUOAGX
Kit Contents

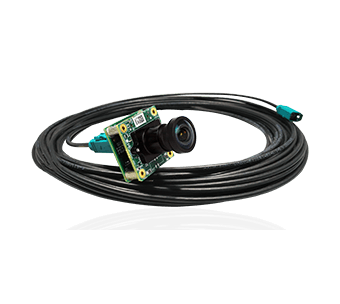

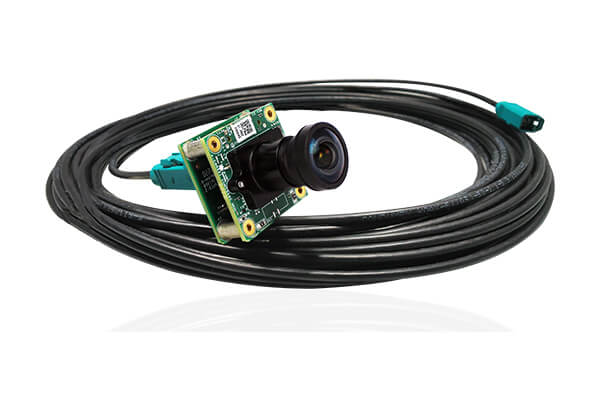

  • NileCAM200 - 20MP Camera Module with S-mount lens holder
  • 15 meter coaxial cable
  • Deserializer board
 NVIDIA® Jetson AGX Orin™ / Xavier™ Dev Kit
ContactUs



NileCAM200 - Customization for other Application Processor platforms:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and feature customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

ContactUs
