e-CAM52A_5640_MOD - 5MP OV5640 Parallel Camera Module

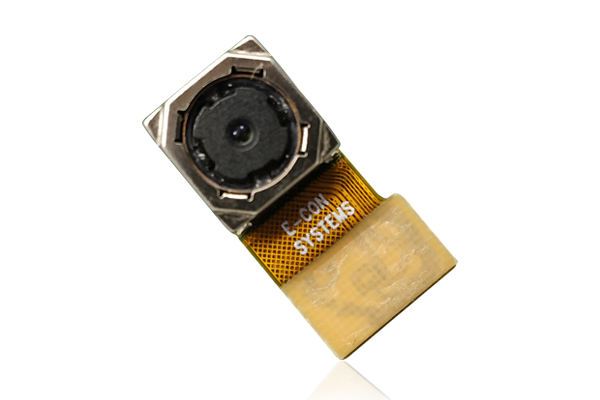

The e-CAM52A_5640_MOD is a Parallel Camera Module from e-con systems™ featuring Omnivision OV5640 image sensor. Any processor system like I.MX6, OMAP4430, OMAP4460, OMAP35x, AM37x, DM37x that has a Parallel interface can integrate the e-CAM52A_5640_MOD.

  • Omnivision OV5640 CMOS image sensor
  • Focus Type – Auto Focus (VCM driven)
  • Maximum Image Transfer Rate
  • VGA 60 fps
    HD (720p) 60 fps
    Full HD (1080p) 30 fps *
    5MP 15 fps
  • View Angle - 64 ° Diagonal
  • Output Format - YUV422, MJPEG
  • Object Distance - 100mm to Infinity
  • Effective Focal Length - 3.42 mm
  • Temperature Range
    1. Operation - -30° to 70° C
    2. Stable Image - 0° to 50° C
  • Weight - 1 Grams
  • Power requirements
    1. Active - 150 mA
    2. Standby - 20 µA
  • Max S/N ratio- 36 dB
  • Dynamic Range - 68 dB
  • Module Dimensions (in mm)
    1. excluding flex cable - 8.5 x 8.5 x 5.15
    2. with flex cable - 19 x 9.6 x 5.15
  • Compliance
    • FCC
    • RoHS
  • Launched on:launch date
  • * - The frames are cropped.
  • Omnivision OV5640 Image Sensor with pixel size of 1.4µm
  • Electronic Rolling Shutter
  • Auto Focus, Auto Exposure and Auto White Balance support
  • Normal Flip, Mirror and Rotate support
  • Image Area - 3673.6 µm x 2738.4 µm
  • Focus Distance:100mm to Infinity

e-CAM52A_5640_MOD is particularly suited to the following applications:

  • Camera for handhelds / Tablets
  • Biometrics (IRIS Scan)
  • Low Vision
  • Electronic Microscope
  • Surveillance
  • OCR readers

Evaluation Kit:

1. PC Solution

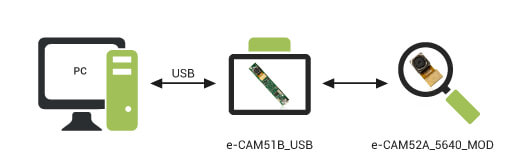

e-CAM51B_USB - 5 MP Autofocus USB 2.0 Camera Board

Customers who own platforms that support USB 2.0 and are interested in evaluating the 5 mega pixel HD camera module can directly buy e-CAM51B_USB from e-con Systems™.

2a. ARM Based Solution (NXP/Freescale i.MX6)

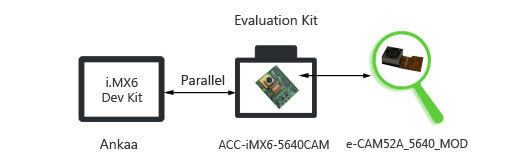

ACC-iMX6-5640CAM - 5MP Parallel Camera Board (Requires Ankaa kit):

The daughter card (ACC-iMX6-5640CAM) can be bought by customers choosing to evaluate the e-CAM52A_5640_MOD camera solution with a direct interface on the Ankaa.

Read more about Ankaa - iMX6 development board solution that features eSOMiMX6 - computer on module & carrier board.

The evaluation kit comes with Sample application for Video Preview and Still Capture (WEC2013 / Linux / Android).

2b. ARM Based Solution (DM3730 Dev Kit)

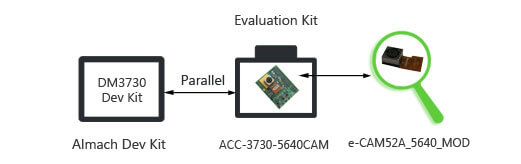

ACC-3730-5640CAM - 5MP Parallel Camera Board (Requires Almach kit):

The daughter card (ACC-3730-5640CAM) can be bought by customers choosing to evaluate the e-CAM52A_5640_MOD camera solution with a direct interface on the Almach - Development Kit for DM3730 Processor.

The evaluation kit comes with Sample application for Video Preview and Still Capture (WEC2013 / Linux / Android).

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.
