SurveilsQUAD - Sony IMX290 Synchronized Multi-Camera System

SurveilsQUAD (e-CAM20_CUXVR) is a synchronized multiple camera solution for NVIDIA® Jetson AGX Xavier™ Developer Kit that consists of four 2MP camera board and a base board to interface with the NVIDIA® Jetson AGX Xavier™ Developer Kit. Each camera is based on the camera module e-CAM21_CUMI290_MOD, a SONY® Starvis IMX290 color CMOS image sensor. This camera uses NVIDIA® on-board Jetson Xavier Image Signal Processor (ISP) to perform all the Auto functions (Auto White Balance, Auto Exposure control) and significantly, improved image quality. It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement.

  • Houses e-CAM21_CUMI290_MOD - 2.0 MP Sony® Starvis Camera Module with S-mount lens holder
  • High-speed 4-lane MIPI CSI-2 interface product variants to connect with the CPU
  • Plugs in to NVIDIA® Jetson AGX Xavier™ development kit
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing
  • Maximum Image Transfer Rate
  • Resolutions Frame Rate (fps) in 10-bit Output Frame Rate (fps) in 12-bit Output
    Sync Mode Async Mode Sync Mode Async Mode
    HD (1280 x 720) 30 fps 120 fps 30 fps 60 fps
    FHD (1920 x 1080) 30 fps 120 fps 30 fps 60 fps
  • Operating Voltage : 3.3V +/- 5%, Current : 0.588A (four cameras streaming condition)
  • Operating Temperature Range : -30°C to 85°C
  • Power consumption: Max 1.940W, Min 1.033W (Streaming four Cameras on NVIDIA® Jetson AGX Xavier™)
  • Asynchronous and Synchronous modes
  • Hardware Frame level synchronization by interconnecting all cameras in Master-Slave configuration
  • Control for individual cameras and numbers of cameras to be streamed is selectable
  • Customized LibArgus application for multicamera streaming, image capture and video recording
  • Gstreamer-1.0 support for video recording and network streaming
  • Base Board size ( L x W ): 75.03 mm x 40.69 mm
  • Lightweight, versatile, and portable multi-board solution
  • Adaptor board size in mm (l x b) : 30 x 30 (Height depends on the lens)
  • Micro-Coaxial Cable Length : 30 cm
  • RoHS compliant
  • Launched on:launch date

Sensor:1/2.8" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:2.0 MP

Pixel size:2.9 µm x 2.9 µm

Sensor Active Area:1945H x 1097V

G sensitivity:1.3 V @ 12-bit HCG mode, 0.65 V @ 12-bit LCG mode

Output Format:RAW 10/12 bit

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:External ISP

DFOV :132°(with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's SurveilsQUAD on NVIDIA® Jetson AGX Xavier™ developer kit.

  • Supported Jetpack & L4T Version
    • Xavier - JetPack 4.2 L4T32.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected sensor modes (eCAM_argus_camera and eCAM_Argus_MultiCamera)
  • Camera Controls
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download SurveilsQUAD - Technical Documents:

   Datasheet

pdf SurveilsQUAD Datasheet

pdf SurveilsQUAD Lens Datasheet

   User Manual

pdf SurveilsQUAD Developer Guide

pdf SurveilsQUAD Getting Started Manual

pdf SurveilsQUAD Gstreamer Usage Guide

pdf SurveilsQUAD Linux App User Manual

pdf SurveilsQUAD Release Package Manifest

pdf eCAM_Argus Camera Build and Installation Guide

pdf eCAM_Argus Multicam Application User Manual

Download Selected Documents

Kit Contents:

  • Hardware:

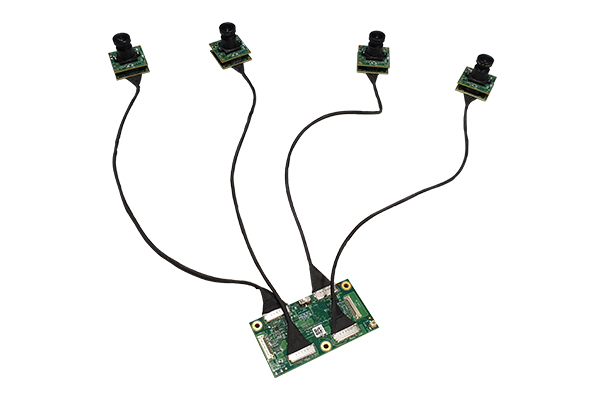

    • e-CAM20_CUXVR_Quad - Four 2MP MIPI Camera board with lens, Adaptor Board, Base board to connect four cameras, 4 Micro-coaxial cable, SD Card (Contains Linux Driver & Sample Application)
  • Software:
    • V4L2 - Sample View finder Applications with Source Code
      • eCAM_argus_camera Application - for single camera streaming
      • eCAM_Argus_MultiCamera Application - for four camera streaming
