See3CAM_CU30 - 3.4 MP Low Light USB Camera Board (Color)

See3CAM_CU30 is a 3.4 MP UVC-compliant Low Light USB camera board based on AR0330 sensor from ON Semiconductor®. This Low Light Board Camera is backward compatible with USB 2.0 and supports compressed MJPEG formats at frame rates equal to USB 3.0. This sensor enables a superior low light performance. It has a dedicated, high-performance Image Signal Processor chip (ISP) that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images, videos and the MJPEG compressions.

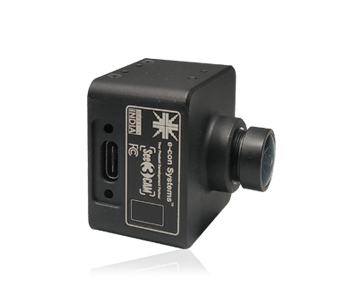

Recently we have launched an enclosure for this camera. This aluminium enclosure ensures the safety even at the most challenging conditions. It is FCC certified and CE compliance camera.

The same camera with built-in Stereo MIC is
also available - Conversa  new

Key Features of See3CAM_CU30 - Low Light USB Board Camera

  • Houses e-CAM30_CUMI0330_MOD - 3.4 MP AR0330 Color Camera Module
  • Fixed Focus with M12 lens holder
  • Electronic Rolling Shutter
  • Output format: Uncompressed UYVY format and Compressed MJPEG format
  • Plug-&-Play (UVC compliant - No drivers required) and Backward compatibility with USB 2.0 hosts with limited features and capabilities
  • Frame Rate* :
  • Resolutions USB 3.0 USB 2.0
    UYVY MJPEG UYVY MJPEG
    3.4MP (2304 x 1536) 24 fps & 12 fps 48 fps 5 fps & 2.5 fps 48 fps
    3MP (2304 x 1296) 30 fps & 15 fps 60 fps 6 fps & 3 fps 60 fps
    3MP (2048 x 1536) 42 fps & 21 fps 50 fps 5 fps & 2.5 fps 50 fps
    1280P (1920 x 1280) 50 fps & 25 fps 50 fps 6 fps & 3 fps 50 fps
    FHD (1920 x 1080) 60,30 & 15 fps 60 fps 8 fps & 4 fps 60 fps
    960P (1280 x 960) 58 fps & 30 fps 58 fps 14 fps & 7 fps 58 fps
    HD (1280 x 720) 60 fps & 30 fps 60 fps 16 fps & 8 fps 60 fps
    XGA+ (1152 x 768) 60 fps & 30 fps 60 fps 19 fps & 9.5 fps 60 fps
    VGA (640 x 480) 60 fps & 30 fps 60 fps 30 fps & 15 fps 60 fps
  • Supported OS - Windows 10, Windows 8, Windows 7, Linux and MAC **
  • USB 3.0 Connector types (Without Enclosure):
    • USB 3.0 Micro-B connector
    • USB 3.0 Type C Connector
  • USB 3.0 Connector types (With Enclosure):
    • USB 3.0 Type C Connector
  • Operating Voltage: 5V +/- 5%, Current - 313mA
  • Operating Temperature Range:
    Without Enclosure : -30°C to 70°C
    WithEnclosure : -0°C to 45°C
  • Power requirements
    • Max : 2.16W
    • Min: 1.04W
  • 10 pin GPIO header (only for without Enclosure)
  • External Hardware Trigger input (only for without Enclosure)
  • Digital Zoom - Upto 8x
  • Unique ID for each camera
  • Size in mm (l x b x h):
    Without Enclosure - 30 x 30 x 30.2 mm (without lens & with M12 holder)
    With Enclosure - 40.7 x 40.7 x 33.4 mm (without lens)
  • Weight in Grams:
    Without Enclosure - 13.5 Grams (without lens) and 19 Grams (with lens)
    WithEnclosure - 57 Grams (without lens) and 63 Grams (with lens)
  • Lightweight, versatile, and portable two-board solution
  • CE, FCC and RoHS compliant
  • Launched on:launch date
  • * - Frame rate achieved is subject to ambient lighting of the scene and varies with light. Also varies with rendering Software
  • ** - For MAC OS support, please contact sales@e-consystems.com

Camera Module Features:

Sensor:AR0330 from ON Semiconductors

Sensor Resolution and Optical Format:3.4 MP CMOS Image Sensor. 1/3" Optical format

Sensor type:3.4 MP CMOS Electronic Rolling Shutter Sensor

Image Signal Processor:External ISP

Output Format:Uncompressed UYVY format and Compressed MJPEG format

Sensor Features:

Pixel size:2.2μm x 2.2μm pixel

Sensor Active Area:2304(H) x 1536(V)

Responsivity:2.0 V/lux-sec (550 nm)

SNR:39 dB

Dynamic Range:69.5 dB

Shutter type:Electronic Rolling Shutter

Focus Type:Fixed focus

DFOV: 3.4MP – 120°(with the lens provided by e-con)

  • Supported OS - Windows 10, Windows 8, Windows 7, Linux and MAC *
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
  • Still Image Resolutions:
    • 3.4 MP(both MJPEG and BMP)
  • Still Capture:
    • External trigger signal control
    • Software application control
  • Zero Shutter Lag:
    • 3.4 MP still capture with Zero-lag-shutter (*Not for cross resolution still captures)
  • UVC Controls:
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gamma control
    • Gain
    • Exposure (Manual and Auto)
    • White Balance (Manual and Auto)
    • Digital Zoom (Upto 8x)
    • Pan-tilt-zoom
  • Additional Capabilities:
    • Support for external trigger
    • LED Strobe control
    • Document Mode
    • ROI based Exposure
    • Q-Factor control
    • Face Detection
    • Smile Detection
    • Orientation controls
    • Frame Rate control
    • Image capture - burst mode
    • Exposure compensation
  • * - For MAC OS support, please contact sales@e-consystems.com
  • Customization of firmware and hardware as per customer requirement is possible. Please contact sales@e-consystems.com for more details.

Download See3CAM_CU30 - Technical Documents:

   Datasheet

pdf  See3CAM_CU30 Datasheet (Type B)

pdf See3CAM_CU30 Datasheet (Type C)

pdf See3CAM_CU30 Lens Datasheet

pdf See3CAM_CU30_CHL_TC_BX Datasheet (Works on Xilinx)

   User Manual

pdf  See3CAM_CU30 Getting Started Manual (Type B)

pdf See3CAM_CU30 Getting Started Manual (Type C)

pdf See3CAM_CU30_CHL_TC_BX Getting Started
          Manual (Works on Xilinx)

pdf See3CAM_CU30 Mechanical Drawing (DXF Format - Type B)

pdf See3CAM_CU30 Mechanical Drawing (DXF Format - Type C)

pdf See3CAM_CU30 RE Deployment Test Results

   Certifications

pdf Document for See3CAM_CU30_CHL_TC_BX Declaration
           of conformity

pdf Document for See3CAM_CU30_CHL_TC Declaration
           of conformity

   Linux

pdf  QtCAM - Linux SW Application
              User Manual

   Windows

pdf  e-CAMView - Windows SW
              Installation Guide

pdf  e-CAMView - Windows SW
              Application User Manual

pdf  e-CAMView - Windows SW
              Extension Unit API Manual

pdf  See3CAM_CU30 Face and
              Smile Detection

pdf  See3CAM_DFU Application
              User Manual

Download 3MP camera Documents

Ordering Info:

Customers who own platforms that support USB 3.0 and are interested in evaluating the 3.4 MP USB camera module can directly buy the See3CAM_CU30 from e-con Systems. Customer can order See3CAM_CU30 with/without lens.

Part No Description Sample Price
(1 Unit)
Volume Price
(1000s Pack)
Purchase
See3CAM_CU30_CH_TC 3.4 MP USB3.1 Gen1 Camera Type C connector with S Mount Holder US$119 - buy camera
See3CAM_CU30_CHL_TC 3.4 MP USB3.1 Gen1 Camera Type C connector with S Mount Holder and Lens US$149 - buy camera
See3CAM_CU30_CHL_TC_BX 3.4 MP USB3.1 Gen1 Camera Type C connector with enclosure and Lens US$269 - buy camera
See3CAM_CU30_CHL 3.4 MP Custom Lens USB 3.0 Camera with
S Mount Holder & Lens Micro-B connector
US$149 - buy camera
See3CAM_CU30_CH 3.4 MP USB 3.0 Camera with S-Mount Holder Micro-B connector US$109
(MOQ: 100 Units)
US$75 4K Camera Customization

See3CAM_CU30_CH_TC-3.4 MP USB3.1 Gen1 Camera Type C connector with S Mount Holder

Sample Price (1 Unit)-US$119

Volume Price (1000 units)--

buy camera

See3CAM_CU30_CHL_TC-3.4 MP USB3.1 Gen1 Camera Type C connector with S Mount Holder and Lens

Sample Price (1 Unit)-US$149

Volume Price (1000 units)--

buy camera

See3CAM_CU30_CHL_TC_BX-3.4 MP USB3.1 Gen1 Camera Type C connector with enclosure and Lens

Sample Price (1 Unit)-US$269

Volume Price (1000 units)--

buy camera

See3CAM_CU30_CHL-3.4 MP Custom Lens USB 3.0 Camera with S Mount Holder & Lens Micro-B connector

Sample Price (1 Unit)-US$149

Volume Price (1000 units)--

buy camera

See3CAM_CU30_CH-3.4 MP USB 3.0 Camera with S-Mount Holder Micro-B connector

Sample Price (100 Units)-US$109

Volume Price (1000 units)-US$75

4K Camera Customization

In addition to See3CAM_CU30, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10, Windows 8, Windows 7, Linux and MAC *). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

USB 3.0 Camera

  • Hardware:
    • Without Enclosure
      • See3CAM_CU30 - 3.4 MP HD USB Camera with M12 Lens (S-Mount) Holder
      • USB 3.0 Micro-B Cable / USB 3.0 Type-C Cable
      • Lens (Optional)
    • With Enclosure
      • See3CAM_CU30 - 3.4 MP HD USB Camera with Enclosure
      • USB3.1 Gen1 Type-C Cable
      • Lens
  • Software: (Customers will have to download the software from e-con Developer Resource)
    • Supported OS: Windows 10, Windows 8, Windows 7, Linux and MAC *
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • Documents:
  • * - For MAC OS support, please contact sales@e-consystems.com

See3CAM_CU30 - Customization

  • Do you need a different lens mount (C-mount/CS-Mount) ?
  • Do you need assistance in choosing lens?
  • Do you need lens correction?
  • Do you want a smaller form factor?
  • Do you need LED?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

Camera Customization

US$75
Buy 3MP Camera online

Excluding Shipment Charges

See3CAM_CU30 is now part of Xilinx reVision™ Stack

Sample Images - Different light Conditions

Light Source: Infrared

Light source: Visible light (0.5Lux)

Targeted Applications

»  High end Video Surveillance

»  Photo Booth cameras

»  NIR imaging applications

»  Parking lot management

»  In-car security cameras

»  Document scanning cameras
