e-CAM50_CUNX - 5.0 MP NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ Camera

e-CAM50_CUNX is a 5MP MIPI CSI-2 fixed focus color camera for NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ developer Kit. This Jetson Nano™ Camera is based on 1/2.5" AR0521 CMOS Image sensor from onsemi® with built-in Image Signal Processor (ISP). This powerful ISP helps to brings out the best image quality from the sensor and making it ideal for next generation of AI devices.

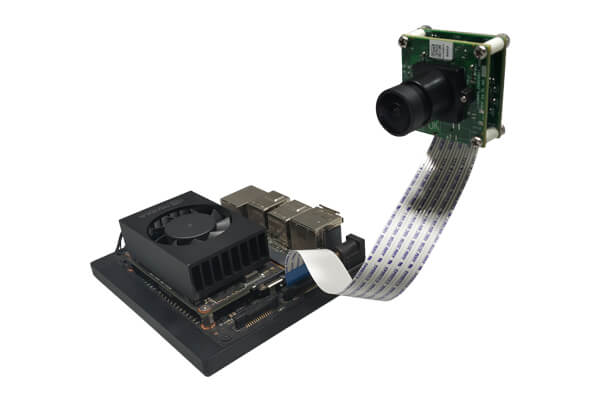

e-CAM50_CUNX can be directly interfaced with NVIDIA® Jetson Nano™ Developer Kit / NVIDIA® Jetson Xavier™ NX Developer Kit using J13 connector on Jetson Nano or J1 and J9 connectors on Jetson Xavier NX.

Supported Platforms:

NVIDIA Jetson developer kits
NVIDIA® Jetson™
Dev Kits
AverMedia EN715
AVerMedia
EN715 AverAI
Seeed Studio
Seeed Studio J101/J202/Jetson A203 V2

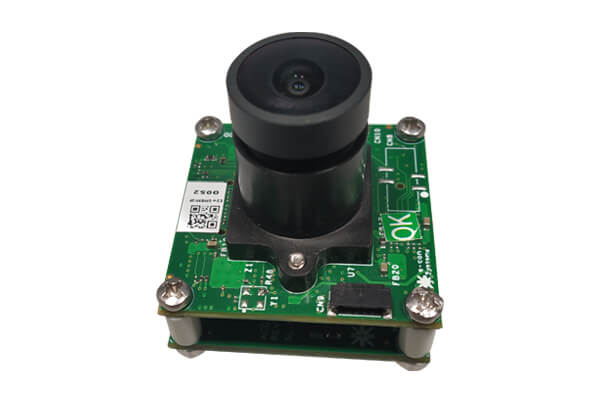

  • Houses e-CAM55_CUMI0521_MOD - 5.0 MP Camera Module with S-mount lens holder
  • Multi board solution
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Plugs in to NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ Developer Kit
  • Frame Rate:
  • Resolutions UYVY
    VGA (640 x 480) 75 fps
    HD (1280 x 720) 100 fps
    960P (1280 x 960) 75 fps
    FHD (1920 x 1080) 65 fps
    QHD (2560 x 1440) 38 fps
    5MP (2592 x 1944) 28 fps
  • Operating Voltage : 3.3V +/- 5%
  • Linux camera driver (V4L2) for 5.0 MP MIPI CSI-2 camera module
  • Operating Temperature Range: -30°C to 70°C
  • Power Consumption:
    • Max : 1.62W
    • Min : 0.95W
  • Board Weight - 12 Grams (without lens)
                               17.5 Grams (with lens)
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Lightweight, versatile, and portable design
  • RoHS compliant
  • Launched on:launch date

Sensor:AR0521 from onsemi®

Focus Type:Fixed focus / Auto focus*

Resolution:5MP CMOS Image Sensor. 1/2.5" Optical format

Sensor type:5MP CMOS Electronic Rolling Shutter Sensor with Bayer RGB Color Filter Array

Pixel size:2.2 µm x2.2 µm

Sensor Active Area:2592H x 1944V

Responsivity:18.8 Ke-/luxsec

SNR:40 dB

Dynamic Range:74.3 dB

Output Format:Uncompressed UYVY format and Compressed MJPEG format

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:On-board high performance ISP

DFOV :5MP - 140.5° (with the lens provided by e-con)

* - Liquid lens option is available for this product and can be provided on request

* - Liquid lens option is available for this product and can be provided on request

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM50_CUNX on NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ developer kit.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson Xavier™ NX - Jetpack 5.1.1 L4T 35.3.1
    • NVIDIA® Jetson NANO™ - Jetpack 4.6 L4T 32.6.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (both manual and automatic)
    • Zoom
    • Pan
    • Tilt

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM50_CUNX - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM50_CUNX Datasheet

pdf e-CAM50_CUNX Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM50_CUNX Getting Started Manual

pdf e-CAM50_CUNX Developer Guide

pdf e-CAM50_CUNX Linux App User Manual

pdf e-CAM50_CUNX Gstreamer Usage Guide

pdf e-CAM50_CUNX Release Package Manifest

pdf e-CAM_TK1 GUVCView Build & Installation Guide

Download Selected Documents

Kit Contents:

    • e-CAM55_CUMI0521_MOD - 5.0 MP MIPI Camera Module with lens
    • Adaptor board
    • Flex Cable (15 cm)
    • Linux Driver & Sample Application
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
