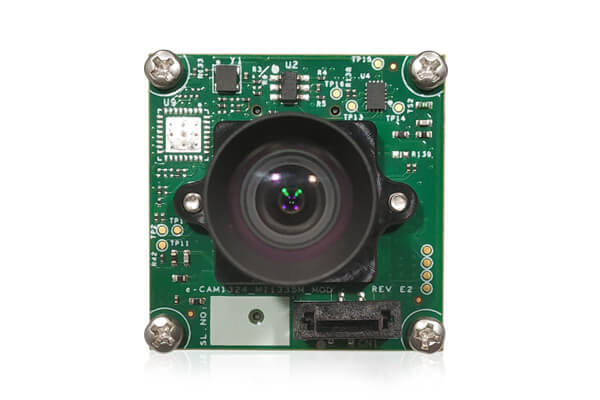

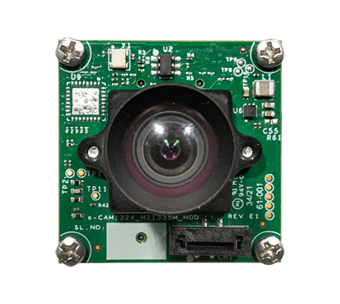

See3CAM_CU135M - 4K Monochrome USB 3.1 Gen 1 Camera

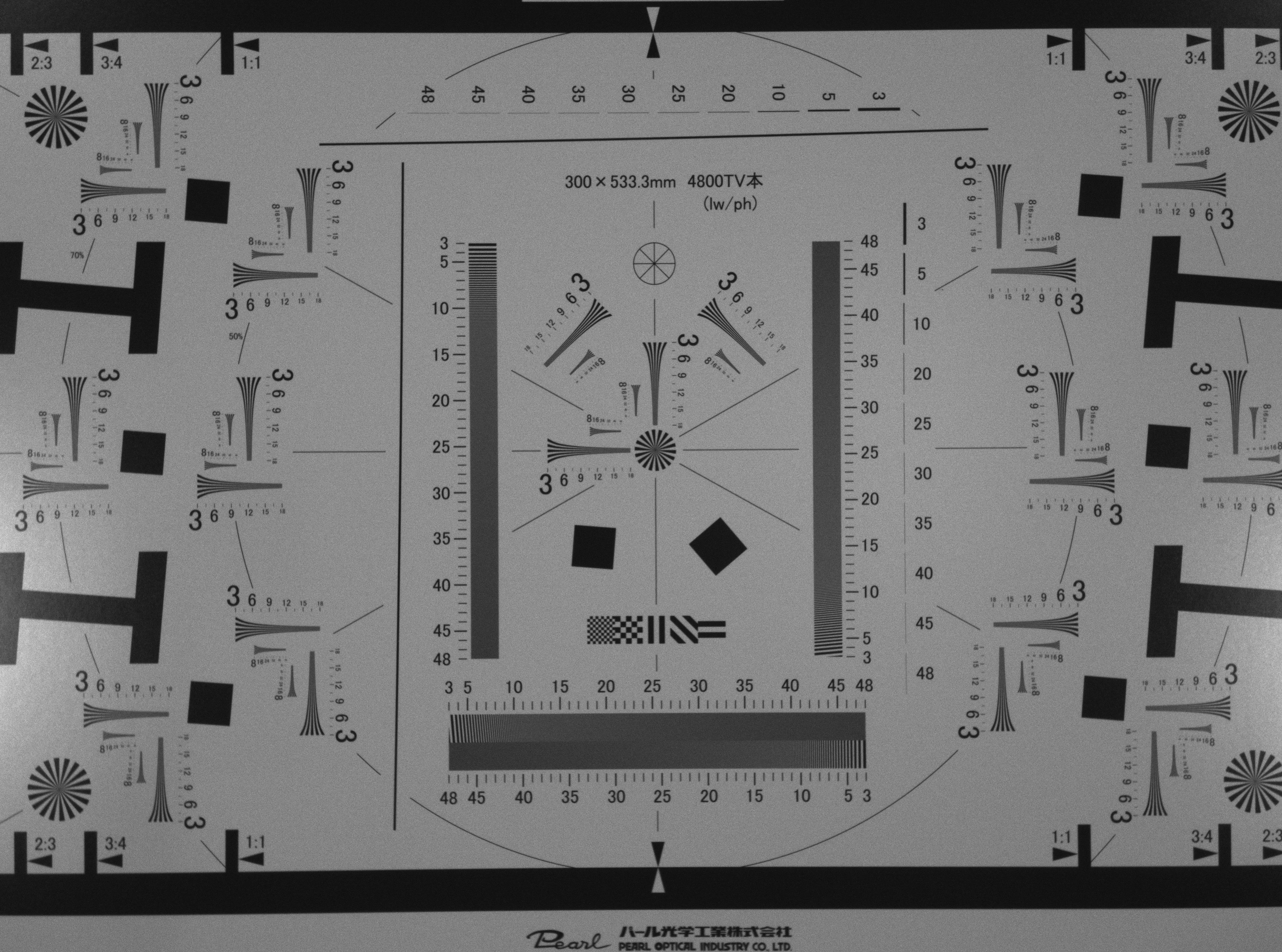

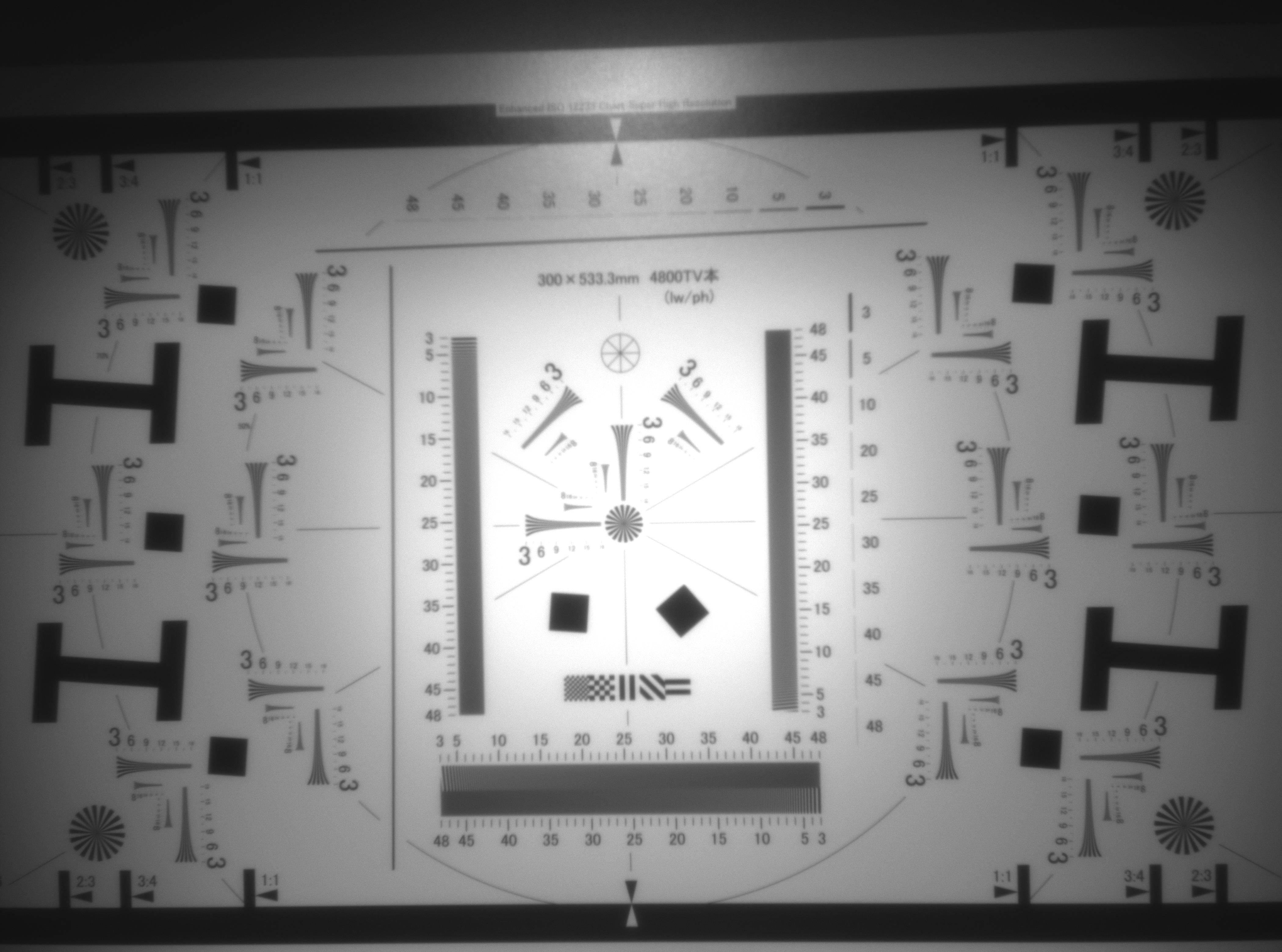

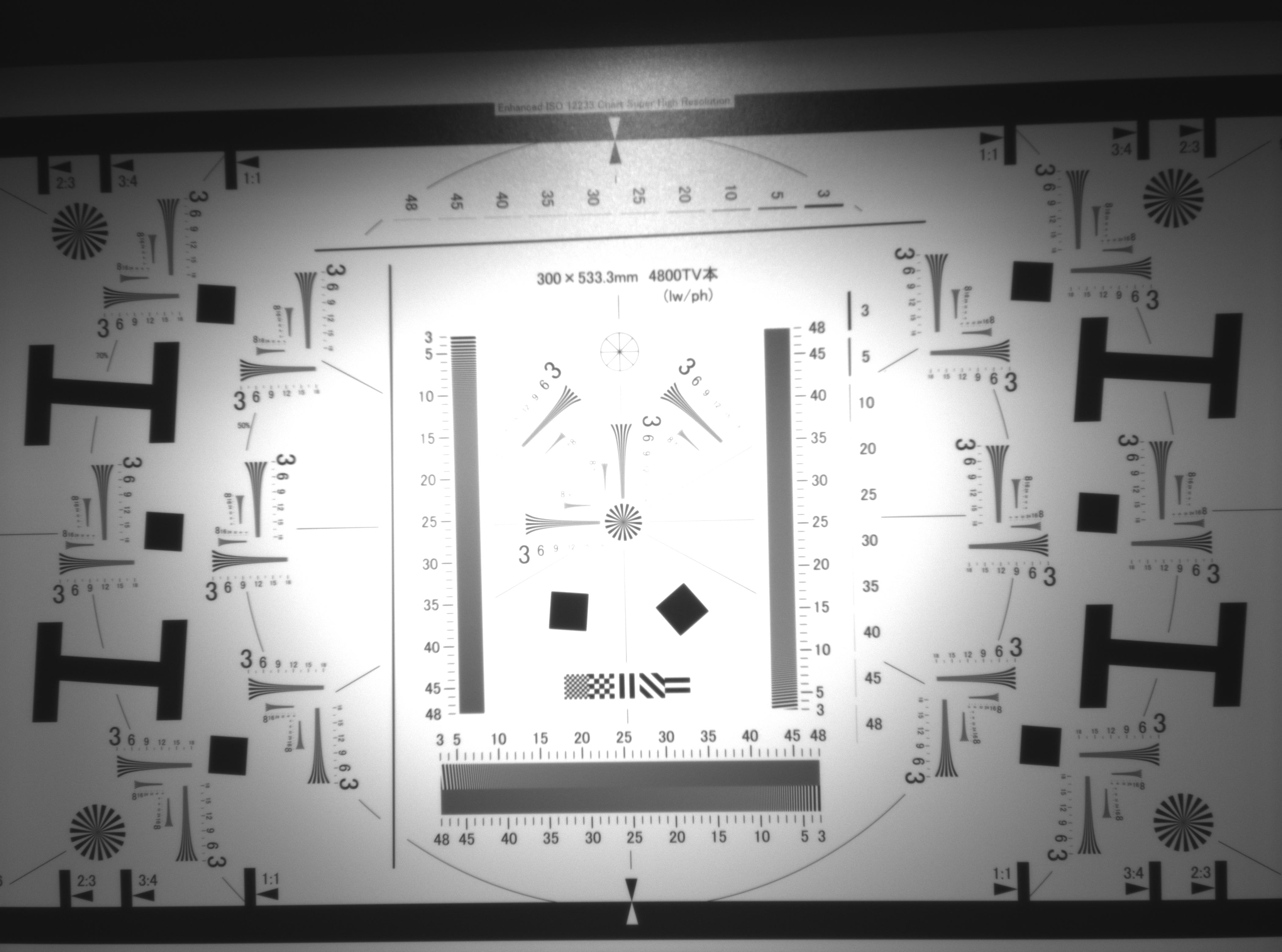

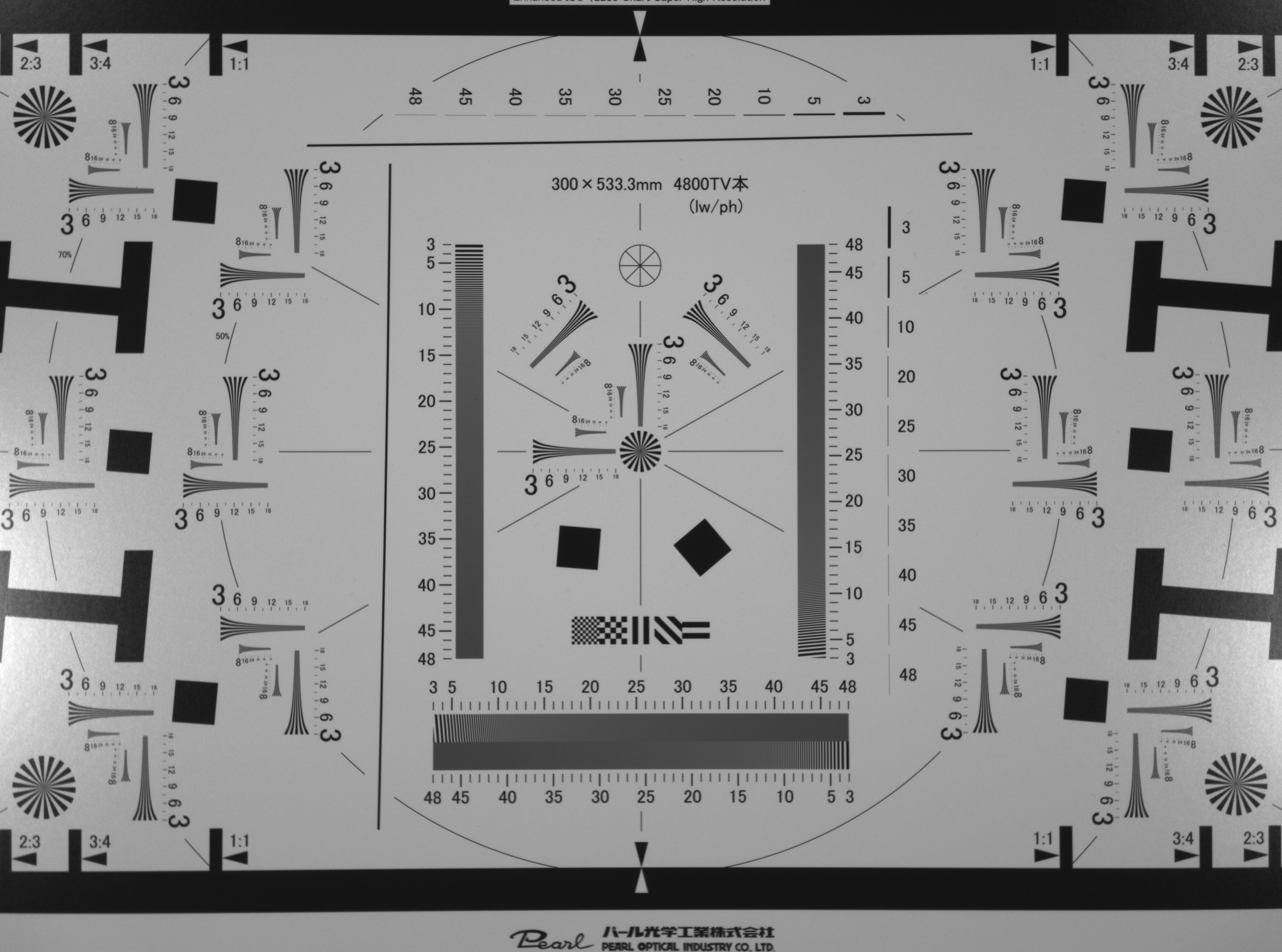

See3CAM_CU135M is a 13MP monochrome fixed focus USB 3.1 Gen 1 camera that offers excellent picture quality in both visible and near-IR regions. This 4K camera is based on the 1/3.2 inch AR1335 monochrome CMOS image sensor with advanced 1.1μm pixel BSI technology from onsemi™. Also, this camera comes with the auto exposure, and 2x2 and 4x4 pixel binning features.

This monochrome camera streams video data in Full HD @ 60 fps & 4K @ 30 fps with output in Y8 and Y16 formats. See3CAM_CU135M is a plug-and-play UVC compliant USB 3.1 Gen 1 camera that is also backward compatible with USB 2.0 host ports. High sensitivity in both visible and NIR regions, ability to capture minuscule details, and low noise capabilities make this camera an ideal fit for applications such as digital microscopes, automatic number plate recognition systems(ANPR), and quality inspections.

Key Features

  • Houses e-CAM1324_MI1335_MOD - 13MP camera module
  • Fixed Focus
  • Output format: Y8 (8 bits/pixel) and Y16 (16 bits/pixel)
  • Frame Rate: Streams Full HD @ 60 fps & 4K @ 30 fps - Refer pdfDatasheet for complete frame rate details.
  • Supported OS - Windows 10/8.1, Linux, Android* and MAC **
  • USB 3.1 Gen 1 device with Type-C reversible interface connector
  • UVC compliant: no additional drivers required. Also backward compatible with USB 2.0 hosts
  • Operating Voltage : 5V +/- 5%
  • Operating Temperature Range : -30°C to 70°C
  • Power requirements:
    • Max : 1.210W
    • Min : 0.780W
  • 10 pin GPIO Header
  • External Hardware Trigger Input
  • Size in mm (L x W x H) - 30 x 30 x 30.2 mm (without lens)
  • Board Weight:
    • 21 Grams (with lens)
    • 13 Grams (without lens)
  • Compliance
    • FCC
    • RoHS
  • Lightweight, versatile, and portable two-board solution
  • Unique ID for each camera
  • Launched on:11 Jan 2022
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Camera Module Features:

Sensor:AR1335 Monochrome from onsemi®

Focus Type:Fixed focus / Auto focus (Liquid lens support)

Sensor Resolution:13MP

Chroma:Monochrome

Shutter type:Electronic Rolling Shutter

Optical Format:1/3.2" Optical format

Output Format:Y8 & Y16

Pixel size:1.1μm x 1.1μm

Sensor Active Area:4208(H) x 3120(V)

Responsivity:8000 e-/luxsec

SNR:37 dB

Dynamic Range:69 dB

Array Size:4208(H) x 3120(V)

DFOV:13MP – 66.8°(with the lens provided by e-con)

  • Supported OS - Windows 10/8.1, Linux, Android * and MAC **
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture
    • QtCAM - Linux Camera application for Video Preview and Still Capture
  • Still Image Resolutions:
    • All supported resolutions (Y8 & Y16)
  • Still Capture:
    • External trigger signal control
    • Software application control
    • Software trigger
  • UVC Controls:
    • Gain
    • Exposure (Manual)
    • Roll
  • Additional Capabilities:
    • Stream Mode
    • Flash Mode
    • Orientation Mode
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

Download See3CAM_CU135M - Technical Documents:

 Bullat Arrow  Datasheet

 pdf  Datasheet

 pdf  Lens Datasheet

 Bullat Arrow  User Manual

 pdf  Getting Started Manual

 pdf See3CAM_DFU Firmware Updater Application
            User Manual

 Bullat Arrow  Windows

 pdf  e-CAMView Application User Manual

 pdf  e-CAMView Application Installation Manual

Download 13MP Monochrome USB Camera Documents

Ordering Info:

Customers who own platforms that support USB 3.1 Gen 1 and are interested in evaluating the 13MP USB camera module can directly buy the See3CAM_CU135M from e-con Systems.

Part No Description Sample Price
(1 Unit)
Purchase
See3CAM_CU135_MHLCC_H01R1 13MP Fixed Focus USB 3.1 Gen 1 Monochrome Camera With
Lens Type-C connector
USD 209 149 buy e-con camera

See3CAM_CU135_MHLCC_H01R1-13Fixed Focus USB 3.1 Gen 1 Monochrome Camera With Lens Type-C connector

Sample Price (1 Unit)-USD 209 149

buy e-con camera



In addition to See3CAM_CU135M, the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 8.1/10, Linux, Android * and MAC **). For more details, please refer the evaluation kit contents below.

For all enquiries please write to sales@e-consystems.com

Kit Contents:

  • Hardware:

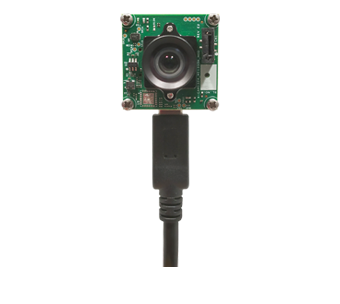

    • See3CAM_CU135M - 13MP Monochrome USB 3.1 Gen 1 Camera with M12 Lens (S-Mount) Holder
    • USB 3.1 Gen 1 Type-C Cable
    • Lens (Optional)
  • Software: (Customers will have to download the software from e-con Developer Resource)
    • Supported OS: Windows 8.1/10, Linux, Android * and MAC **
    • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application
  • * - Customers interested to work on Android would require e-con SDK (Webeecam). The specs mentioned above shall not be the same for Android
  • ** - For MAC OS support, please contact sales@e-consystems.com

See3CAM_CU135M - Customization

  • Do you need a Support for external mechanical shutter?
  • Do you need a Custom lens mount (C-mount/CS-Mount)?
  • Do you want a smaller form factor or single board solution?
  • Do you need LED flash?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.

13MP Monochrome USB Camera Customization

launch offer banner
USD 209 149
Buy 13MP Monochrome USB Camera online

Excluding Shipment Charges

Offer Closes on 28th Jan 2022

Targeted Applications

»  Digital Microscopes

»  Automatic Number Plate Recognition

»  Quality Inspections
