NileCAM30_USB - 3.4 MP GMSL camera (supports upto 15 meters)

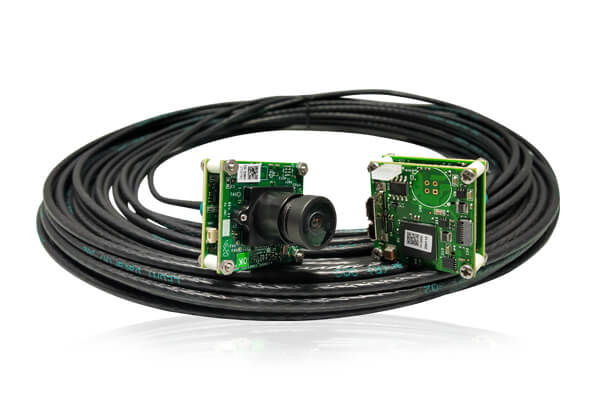

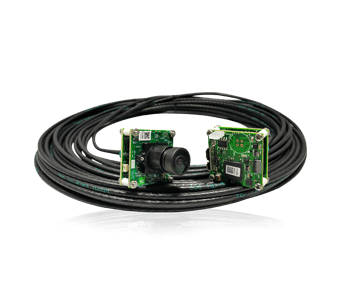

NileCAM30_USB is the four board solution containing the camera module, serializer, deserializer and USB base board. This camera is based on AR0330 CMOS image sensor from ON Semiconductor®, with USB 3.1 Gen 1 interface. The NileCAM30_USB comes with 15 meters coaxial cable with FAKRA connector at both ends of serializer/deserializer board. The NileCAM30_USB has an S-mount (M12) lens holder which allows customers to choose and use the lens according to their application requirement.

Key Features

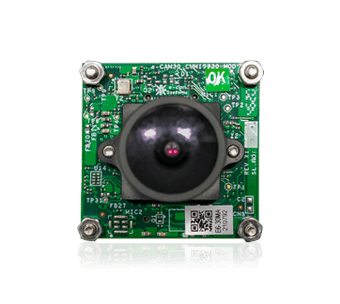

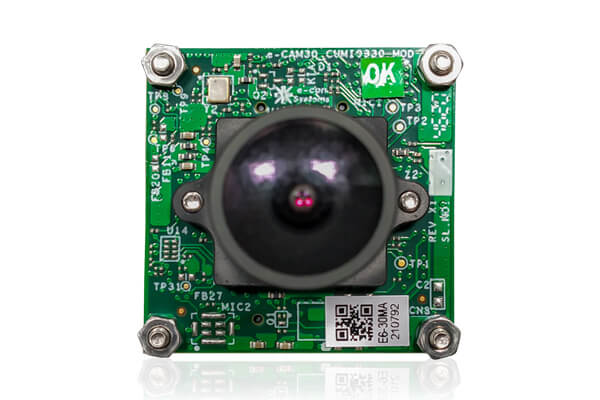

  • Houses NileCAM30 - 3.4 MP AR0330 Color Camera Module
  • Gigabit Multimedia Serial Link serializer and deserializer (GMSL SERDES) Technology
  • Shielded coaxial cable for transmission of both power and data for long distance (nup to 15m)
  • serializer/deserializer connector : FAKRA neutral Z type
  • Fixed Focus with M12 lens holder
  • Electronic Rolling Shutter
  • Output format: Uncompressed UYVY format and Compressed MJPEG format
  • Frame Rate :
  • Resolution USB 3.1 Gen 1 USB 2.0
    UYVY MJPEG UYVY MJPEG
    * 3.4 MP (2304 x 1536) 24 fps & 12 fps 48 fps 5 fps & 2.5 fps 48 fps
    * 3MP (2048 x 1536) 29 fps & 15 fps 50 fps 5 fps & 2.5 fps 50 fps
    FHD (1920 x 1080) 45 fps, 30 fps & 15 fps 60 fps 8 fps & 4 fps 60 fps
    HD (1280 x 720) 60 fps & 30 fps 60 fps 16 fps & 8 fps 60 fps
    VGA (640 x 480) 60 fps & 30 fps 60 fps 30 fps & 15 fps 60 fps
  • * - Default zoom value is 100 and for other resolutions zoom value will be 102
  • Supported OS - Windows 10 , Windows 8, Windows 7 and Linux
  • Over USB interface :
    • Plug-&-Play (UVC compliant - No drivers required)
    • USB 3.1 Gen 1 Micro-B connector
  • Operating Voltage : 5V
  • Operating Temperature Range : -30°C to 55°C
  • Power requirements :
    • Max : 4.3W
    • Min : 2.485W
  • 10 pin GPIO header
  • Size in mm (l x b):30 x 30 mm
  • Weight :
    • Total weight: 299 Grams
      • Sensor Board + Serializer Board Weight:
                    15 Grams (with out lens)
                    20.5 Grams (with lens)
      • Serializer Board + USB Base Board Weight: 14.5 Grams
      • CoAxial Cable (15 Meters): 264 Grams
  • RoHS compliant
  • Lightweight, versatile, and portable four-board solution
  • Launched on:launch date

Module Features:

Sensor:AR0330 - 1/3" Optical format CMOS Image sensor

Focus Type:Fixed

Resolution:3.4 MP

Pixel size:2.2 µm x 2.2 µm

Sensor Active Area:2304(H) x 1536(V)

Responsivity:2.0 V/lux-sec (550 nm)

SNR:39 dB

Dynamic Range:69.5 dB

Output Format:Uncompressed UYVY format and Compressed MJPEG format

Shutter Type:Electronic Rolling Shutter

Holder:Standard M12 lens holder

ISP:External ISP

DFOV:3.4 MP - 125° (with the lens provided by e-con)

  • Supported OS - Windows 10, Windows 8, Windows 7 and Linux
  • Sample Application:
    • e-CAMView - Windows Camera application for Video Preview and Still Capture.
    • QtCAM - Linux Camera application for Video Preview and Still Capture.
  • Firmware updater:
    • See3CAM_DFU application
  • Still Image Resolutions:
    • 3.4 MP(both MJPEG and BMP)
  • Still Capture:
    • External trigger signal control
    • Software application control
  • Zero Shutter Lag:
    • 3.4 MP still capture with Zero-lag-shutter (*Not for cross resolution still captures)
  • UVC Controls:
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gamma control
    • Gain
    • Exposure (Manual and Auto)
    • White Balance (Manual and Auto)
    • Digital Zoom:
      • Pan
      • Tilt
  • Additional Capabilities:
    • Support for external trigger
    • LED Strobe control
    • Document Mode
    • ROI based Exposure
    • Q-Factor control
    • Face Detection
    • Smile Detection
    • Orientation controls
    • Frame Rate control
    • Image capture - burst mode
    • Exposure compensation

Download NileCAM30_USB - Technical Documents:

   Datasheet

pdf  NileCAM30_USB Datasheet

pdf  NileCAM30_USB Lens Datasheet

   User Manual

pdf  NileCAM30_USB Getting Started Manual

   Windows

pdf  NileCAM30_USB e-CAMView Application User Manual

pdf  NileCAM30_USB e-CAMView Streaming Application
            Installation Manual

pdf  NileCAM30_USB Extension Unit API Documents

pdf  NileCAM30_USB Face and Smile Detection Application Note

pdf  See3CAM_DFU Firmware Updater Application User Manual

   Linux

pdf  NileCAM30_USB QtCAM
            Application Installation Manual

pdf  NileCAM30_USB QtCAM
            Application User Manual

Download 3MP camera Documents

NileCAM30_USB - Customization

  • Do you need a different lens mount (C-mount/CS-Mount) ?
  • Do you need custom length coaxial cable?
  • Do you need assistance in choosing lens?
  • Do you need lens correction?
  • Do you want a smaller form factor?
  • Do you need LED?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
