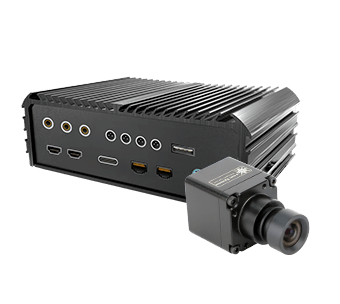

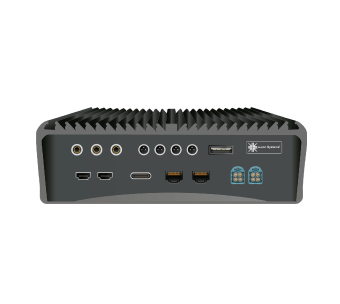

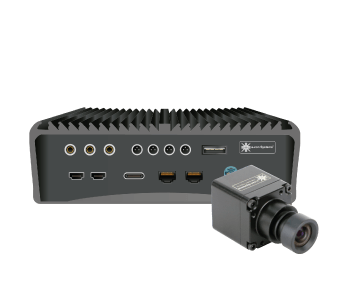

e-con Systems' ECU accelerated by NVIDIA Jetson Thor is a compact, production-ready compute platform built for Humanoids, physical AI, industrial automation and robotics applications. Delivering up to 2070 FP4 TFLOPS of compute with 128 GB high-bandwidth memory, it combines rugged reliability with real-time multi-sensor processing. This platform enables seamless integration of multiple sensors—while leveraging e-con's advanced Holoscan camera solutions and proprietary TintE ISP® for superior image quality and optimized processing.
e-con's robust ECU solutions offer multiple interface support, high-performance AI compute, multi-sensor connectivity, and advanced imaging capabilities, achieving fast perception, decision-making, and control in dynamic, edge environments.
Unleash extraordinary AI throughput (e.g., up to 2070 TFLOPS FP4 Sparse) for complex perception, LLMs, and multimodal sensor fusion.
Massive LPDDR5X (e.g., 128 GB, 256-bit) to support dense neural nets and real-time sensor data.
Holoscan-based camera integration for advanced vision AI and 8x GMSL2 camera support for high-performance robotic vision.
Rugged metal build with wide thermal tolerance
(-25 °C to +85 °C) ensures reliability in challenging field conditions.
Feature-rich I/O including Gigabit Ethernet, QSFP28 (4x25 GbE), USB3.2 Type-C, CAN, digital I/O, and real-time sensors (IMU, temperature, EEPROM, RTC).
Built to handle heavy AI workloads, multimodal sensor fusion, real-time inference, and robotics control in milliseconds.
| Feature Category | Specification Details |
|---|---|
| Processor Module | NVIDIA Jetson Thor (e.g., Thor T6000) |
| Memory | 128 GB LPDDR5X (256-bit, ~273 GB/s) |
| AI Performance | Up to 2070 TFLOPS (FP4 Sparse) |
| Graphics Outputs | 2× HDMI 2.1, 2× DP 1.4a |
| I/O Interfaces | Gigabit Ethernet, QSFP28 (4×25 GbE), 2× USB3.2-C (with DP), Debug USB-C, CAN, RS-232/422/485, 2× Digital In, 3× Digital Out, EEPROM, IMU, Temp Sensor, RTC |
| Camera Support | Up to 8× GMSL2 camera inputs, 10G Holoscan support |
| Storage | M.2 Key-M 2280 (PCIe Gen5 x4), M.2 Key-M 2242 (PCIe Gen5 x2) |
| Power Input | 18–32 VDC |
| Wireless Options | WiFi / Bluetooth / LTE |
| Operating Range | –25 °C to +85 °C |
| Operating System | Ubuntu Linux 24.04, NVIDIA JetPack 7.0 |
| Dimensions | TBD |
