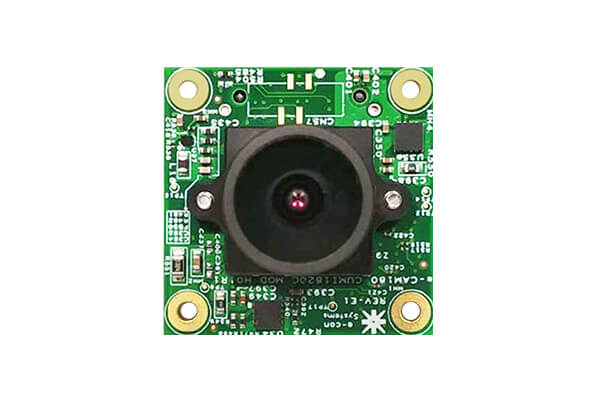

e-CAM180_CUMI1820_MOD - 18 MP AR1820HS MIPI Camera Module

e-CAM180_CUMI1820_MOD is an 18 MP camera module based on the 1/2.3-inch AR1820 sensor from ON Semiconductor®. This MIPI camera module can stream 18 MP at 13 fps with 4-lane configuration.

e-CAM180_CUMI1820_MODĀ also comes with 4 levels of zoom that allow users to swivel the camera from left to right, tilt it up and down, and zoom in and out of a scene. This MIPI CSI-2 camera module uses the NVIDIA® Jetson ISP to produce best-in-class image output in uncompressed YUV format.

This camera module is an ideal fit for applications such as
smart surveillance and digital microscopes.

Key Features

  • 18 MP Colour camera with 4-lane MIPI CSI-2 interface
  • 1/2.3" Optical Form-factor
  • RGB RAW 12-bit data per pixel
  • Utilizes NVIDIA® Jetson's ISP for automatic exposure and White balance controls and other image processing pipeline
  • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
  • Frame Rate : Streams 18 MP @ 13 fps - Refer pdfDatasheet for complete frame rate details.
  • Small form-factor pluggable camera module with S-mount lens holder
  • Power consumption of Camera Module Board : 1.37 W (Approx)
  • Board Weight - 6.5 Grams
  • 30mm x 30mm size. Height depends on the Lens
  • 2x 20-pin SMT Connectors on two sides of the camera module for better mechanical stability
  • Compliance
    • FCC
    • RoHS
  • Launched on: 16-nov-2021

Sensor:AR1820HS Color sensor from ON Semiconductor

Sensor Resolution:18 MP

Optical Format:1/2.3"

Sensor type:18 MP CMOS Sensor with Color output

Shutter type:Rolling Shutter

Focus Type:Fixed focus

Output Format:12-bit Raw format

Pixel size:1.25μm x 1.25μm pixel

Sensor Active Area:4912H x 3684V

Responsivity:0.62 V/lux-sec

SNR:36.3 dB

Dynamic Range:65.8 dB

Array Size:4912 x 3684 pixels

DFOV :18.0 MP - 133.9° (with the lens provided by e-con)

Download e-CAM180_CUMI1820_MOD Documents:

pdf e-CAM180_CUMI1820_MOD - 18 MP MIPI Camera Module

Evaluation Kit:

Product Code Supported Platforms Sample Price
e-CAM180_CUXVR
Kit-content
  • e-CAM180_CUMI1820_MOD - 18 MP MIPI Camera Module with lens
  • Adaptor board
  • Base board
  • Micro Coaxial Cable
  • Linux Driver & Sample Application
»  NVIDIA® Jetson AGX Xavier™ launch offer icon

USD 199 169

Buy Camera online
e-CAM180_CUNX
Kit-content
  • e-CAM180_CUMI1820_MOD - 18 MP MIPI Camera Module with lens
  • Adaptor board
  • FPC Cable
»  NVIDIA® Jetson Xavier™ NX launch offer icon

USD 129 99

Buy Camera online
e-CAM181_CUNX
Kit-content
  • e-CAM180_CUMI1820_MOD - 18 MP MIPI Camera Module with lens
  • Adaptor board
  • IPEX Cable
»  NVIDIA® Jetson Xavier™ NX FLOYD launch offer icon

USD 169 139

Buy Camera online



Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM180_CUMI1820_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM180_CUMI1820_MOD on any application platform as per customer requirements.

e-CAM180_CUMI1820_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for any OS: Linux, Android
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX Xavier, Nano and any other processor
  • Camera and features customization based on specific requirements

SAMPLE PRICE
