e-CAM180_CUXVR - Six Synchronized 18MP Cameras for NVIDIA® Jetson AGX Xavier™

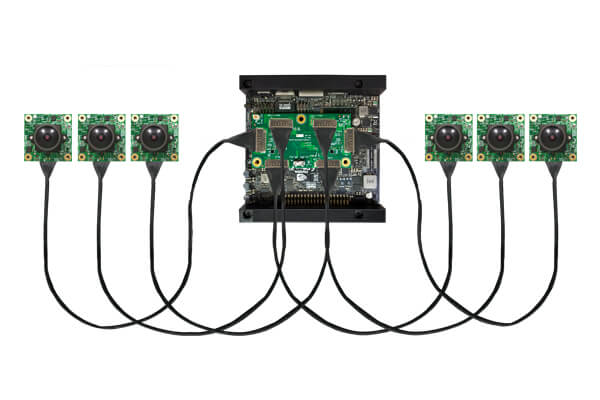

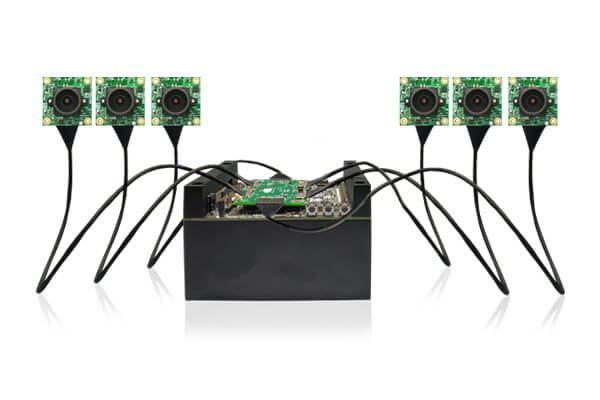

e-CAM180_CUXVR is an 18 MP multi-camera solution for the NVIDIA® Jetson AGX Xavier™ development kit. This solution allows to connect 6 - 18MP cameras to the NVIDIA® Jetson AGX Xavier™ development kit. It is based on the 1/2.3-inch AR1820 sensor from onsemi®. This MIPI camera provides image output at a resolution of 18 MP with great details. e‑CAM180_CUXVR comes with 4 levels of zoom that allow users to swivel the camera from left to right, tilt it up and down, and zoom in and out of a scene.

This camera uses the NVIDIA® Jetson ISP to produce best-in-class image output in uncompressed YUV format. e-CAM180_CUXVR is an ideal solution for applications such as smart surveillance systems, smart traffic management systems, parking lot management systems, smart streets lights, automatic number plate recognition systems, and digital microscopes.

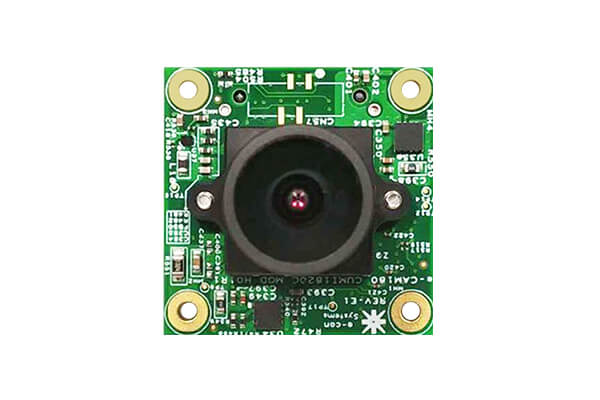

  • Houses e-CAM180_CUMI1820_MOD - 18.0 MP Camera Module with S-mount lens holder
  • High-speed 4-lane MIPI CSI-2 interface to connect with the CPU
  • Plugs in to NVIDIA® Jetson AGX Xavier™ development kit
  • Frame Rate : Streams 18 MP @ 13 fps - Refer pdfDatasheet for complete frame rate details.
  • Operating Voltage : 3.3V +/- 5%, Current : 2.54 W (Four cameras streaming condition)
  • Operating Temperature Range : -30°C to 70°C
  • NVIDIA® Jetson ISP
  • Linux camera driver (V4L2) for 18.0 MP MIPI CSI-2 camera module
  • Sample application for image capture & Preview
  • Supports upto Six Cameras in 2-lane mode and four cameras in 4-lane mode
  • Gstreamer-1.0 support for video recording and network streaming
  • Base Board size( L x W ): 75.03 mm x 40.69 mm
  • Lightweight, versatile, and portable multi-board solution
  • Adaptor board size in mm (l x b) : 30 x 30 (Height depends on the lens)
  • Micro-Coaxial Cable Length : 30 cm (1 m*)
  • RoHS compliant
  • Launched on:launch date
  • * 1-meter cable will be available on request.

Module Features:

Sensor:AR1820HS Color sensor from onsemi®

Sensor Resolution:18 MP

Optical Format:1/2.3"

Sensor type:18 MP CMOS Sensor with Color output

Shutter type:Rolling Shutter

Focus Type:Fixed focus

Output Format:12-bit Raw format

Pixel size:1.25μm x 1.25μm pixel

Sensor Active Area:4912H x 3684V

Responsivity:0.62 V/lux-sec

SNR:36.3 dB

Dynamic Range:65.8 dB

Array Size:4912 x 3684 pixels

DFOV :18.0 MP - 133.9° (with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM180_CUXVR on Jetson developer kit.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX Xavier™ - JetPack 4.6 / L4T 32.6.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source code for Linux:
    • Video Preview
    • Still Image Capture
  • Camera Controls
    • Gain
    • Exposure (Manual and Auto)
    • White Balance (Manual and Auto)

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM180_CUXVR - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM180_CUXVR Datasheet

pdf e-CAM180_CUXVR Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM180_CUXVR Developer Guide

pdf e-CAM180_CUXVR Getting Started Manual

pdf e-CAM180_CUXVR Gstreamer Usage Guide

pdf e-CAM180_CUXVR Release Package Manifest

pdf eCAM_Argus Camera Build and Installation Guide

pdf eCAM_Argus Application User Manual

Download Selected Documents

Kit Contents:

  • e-CAM180_CUXVR_CHLC_1H01R1
    • e-CAM180_CUMI1820_MOD - 18 MP MIPI Camera Module with Lens
    • Adaptor board
    • Base board
    • One Micro Coaxial Cable
    • Linux Driver & Sample Application
  • e-CAM180_CUXVR_CHLC_4H02R1
    • e-CAM180_CUMI1820_MOD - 18 MP MIPI Camera Module with Lens
    • Adaptor board
    • Base board
    • Four Micro Coaxial Cable
    • Linux Driver & Sample Application

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

SAMPLE PRICE

USD 199
Buy e-CAM180_CUXVR Camera online

Excluding Shipment Charges

»  Smart Surveillance Systems

»  Smart Traffic Management Systems

»  Parking Lot Management Systems

»  Smart Streets Lights

»  Automatic Number Plate Recognition Systems

»  Digital Microscopes
