NileCAM21_CUOAGX - HDR GMSL2 multi-camera solution for NVIDIA® Jetson AGX Orin™

Highlights:

  • Houses NileCAM21 - Full HD GMSL2 Camera Module
  • Plugs into NVIDIA® Jetson AGX Orin™ developer kit
  • High Dynamic Range (HDR) with LED Flickering Mitigation (LFM)
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cable to transmit power and data up to 15m
  • External Trigger support for synchronized multi-camera streaming
  • On-board high performance ISP for excellent image quality
  • Optional IP67-rated enclosure

Sample Price

USD 549

Documents

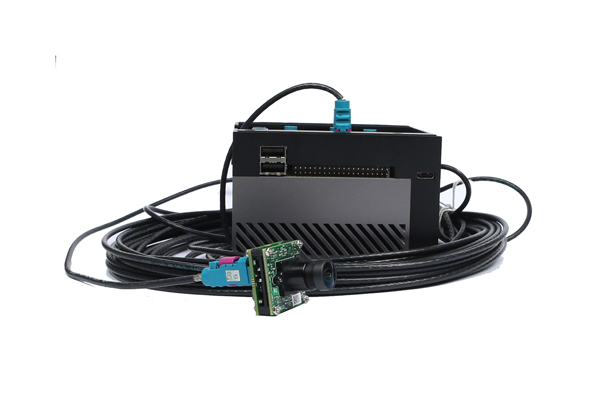

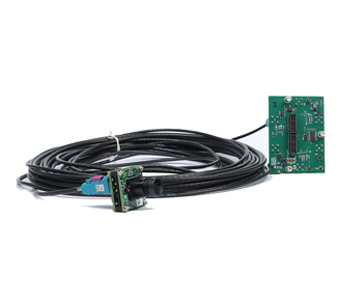

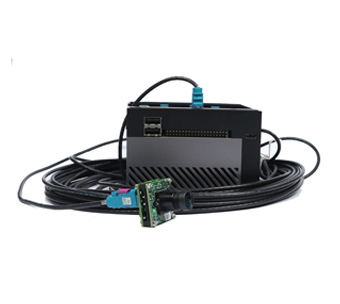

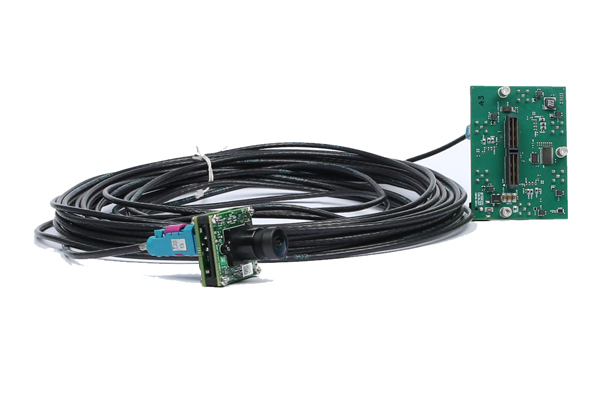

NileCAM21_CUOAGX is a GMSL2 HDR camera for NVIDIA Jetson AGX Orin. It is based on the ARO233AT sensor from onsemi. One of the key differentiators of the camera is that it comes with a combination of HDR and LFM (LED Flicker Mitigation) - making it perfect for a wide variety of outdoor applications. This long-distance camera uses a shielded coaxial cable with a FAKRA connector to connect the camera to the host and enables transmission of data up to a distance of 15 meters. This Full HD camera also comes with a high-performance Image Signal Processor (ISP) which means that it is highly optimized for the best possible image output.

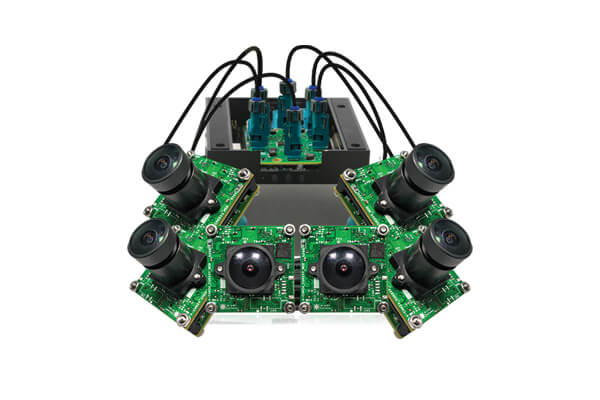

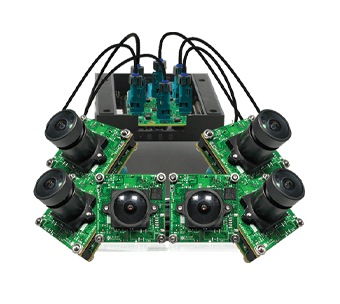

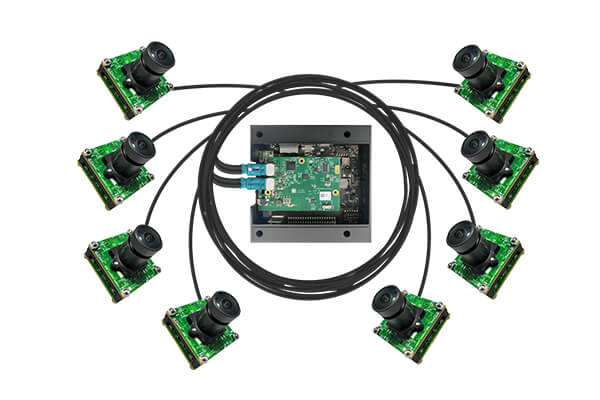

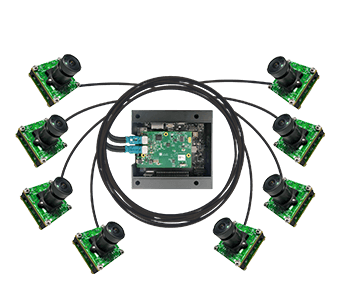

NileCAM21_CUOAGX is a multi-camera solution with the ability to connect up to 6 cameras for synchronized streaming. It also supports an asynchronous mode in case your application demands it. The GMSL2 camera transfers Full HD data in the uncompressed UYVY format at 30 fps while a frame rate of 60 fps can be achieved at the VGA resolution. The support for NVIDIA Jetson AGX Orin also makes this camera an ideal solution for even some of the most data-hungry embedded vision applications.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Asynchronous Mode: Full HD @ 30 fps & VGA @ 60 fps
      • Synchronous Mode: Full HD @ 30 fps & VGA @ 30 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • High-speed MIPI CSI-2 interface to connect with the CPU
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Module features:
    • Sensor: AR0233AT from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.5"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 2048(H) X 1280(V)
    • Array Size: 2048(H) X 1280(V)
    • Responsivity: 30.4 Ke-/lux-sec
    • SNR: 43.1 dB
    • Dynamic Range: Max up to 140 dB
    • Holder: M12 (S-Mount)
    • FOV: 129.17°(D), 110.65°(H), 61.16°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: Max : 2.91W, Min : 1.81W
    • Size in mm (l x b):
      • serializer board - 30 x 30 mm
      • deserializer board - 75 mm x 55 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download NileCAM21_CUOAGX Documents

  • Linux camera driver:
  • Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's NileCAM21_CUOAGX on Jetson developer kit. The camera driver source code can be ported to any NVIDIA® AGX Orin™ platform.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX ORIN™ - JetPack 5.0.2 L4T35.1.0
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls:
    • Brightness
    • Contrast
    • Saturation
    • Horizontal Flip
    • Vertical Flip
    • Power Line Frequency
    • Gain
    • White Balance
    • Sharpness
    • Exposure
    • Pan & Tilt
    • ROI Exposure
    • ROI window size
    • HDR
    • Trigger
    • Color Kill
    • Frame sync mode
    • De-noise
    • Special Effects
    • Lens correction Mode
    • Display Average Frame rate
  • Please contact camerasolutions@e-consystems.comfor any customization or porting of camera driver to your requirements.
NileCAM21_CUOAGX - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM21_CUOAGX on any application platform as per customer requirements.

NileCAM21_CUOAGX - Customization

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms.
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
